考虑5G基站的多能工业园区全寿命周期供能规划

doi:10.12204/j.issn.1000-7229.2023.03.002

电力建设 ›› 2023, Vol. 44 ›› Issue (3): 15-24.doi: 10.12204/j.issn.1000-7229.2023.03.002

• 综合多元能源及信息技术的能源互联网规划与运行·栏目主持刘洋副教授、韩富佳博士· • 上一篇下一篇

考虑5G基站的多能工业园区全寿命周期供能规划

吴晓鸣¹(), 张辉¹(), 徐冉¹(), 李瑶²(), 高宁²(), 王程²(), 吴润东³()

1.国网安徽省电力有限公司经济技术研究院, 合肥市 230022
2.新能源电力系统国家重点实验室(华北电力大学),北京市 102206
3.国网安徽省电力有限公司,合肥市 230022

收稿日期:2022-05-12 出版日期:2023-03-01 发布日期:2023-03-02
通讯作者: 王程 (1990),男,博士,副教授, 从事综合能源系统运行与控制研究工作,E-mail:chengwang@ncepu.edu.cn
作者简介:吴晓鸣(1981),男,本科,高级工程师,主要研究方向为智能配电网技术,E-mail:754903252@qq.com
张辉(1991),男,硕士,高级工程师,主要研究方向为智能配电网技术,E-mail:zh1991hui@163.com
徐冉(1995),男,硕士,高级工程师,主要研究方向为智能配电网技术,E-mail:925450664@qq.com
李瑶(1999),女,硕士研究生,主要研究方向为新能源电力系统频率响应机理与调频资源优化配置,E-mail:925450664@qq.com
高宁(1996),女,硕士研究生,主要研究方向为综合能源系统运行与控制,E-mail:gao_ning1996@163.com
吴润东(1991),男,硕士,高级工程师,主要研究方向为智能配电网技术,E-mail:875677435@qq.com
基金资助:
国网安徽经研院科技项目(B31209210001);国家自然科学基金项目(51807059)

Life-Cycle Energy Supply Planning of Multi-Energy Industrial Park Considering 5G Base Station

WU Xiaoming¹(), ZHANG Hui¹(), XU Ran¹(), LI Yao²(), GAO Ning²(), WANG Cheng²(), WU Rundong³()

1. Economic and Technological Research Institute of State Grid Anhui Electric Power Co., Ltd., Hefei 230022, China
2. State Key Laboratory of Alternate Electrical Power System with Renewable Energy Sources(North China Electric Power University), Beijing 102206, China
3. State Grid Anhui Electric Power Co., Ltd., Hefei 230022, China

Received:2022-05-12 Online:2023-03-01 Published:2023-03-02
Supported by:
State Grid Anhui Institute of Economics and Technology Project(B31209210001);National Natural Science Foundation of China(51807059)

摘要/Abstract

摘要：

为降低含5G基站的多能工业园区供电成本,提出了一种多能工业园区全寿命周期供能系统规划方法。首先,建立了5G基站多能负荷模型并刻画了园区内多能流耦合特征;随后,以全寿命周期成本最低为目标函数,构建了工业园区供能系统规划模型;进一步,考虑园区内分布式光伏发电及多能负荷不确定性,并应用机会约束刻画不确定性对规划方案的影响,提升规划方案的鲁棒性。仿真算例表明,通过园区内多能互补,园区年用能成本降低0.52%、年规划投资成本降低7.6%,验证了所提方法的有效性。此外,通过调整模型机会约束越限概率参数,可有效平衡规划方案鲁棒性与经济性。

关键词: 5G基站, 多能工业园区, 机会约束, 全寿命周期成本

Abstract:

In order to reduce the power supply cost of the multi-energy industrial park with 5G base stations, this paper proposes a life-cycle energy supply system planning method for the multi-energy industrial park. Firstly, the multi-energy load model of 5G base station is established and the coupling characteristics of multi-energy flows in the park are described. Then, taking the lowest life cycle costs as the objective function, the planning model of the industrial park is constructed. Further, considering the uncertainty of distributed photovoltaic power generation and multi-energy loads in the park, and applying the chance constraints to describe the influence of uncertainty on the planning scheme, the robustness of the planning scheme is improved. The simulation examples shows that the annual energy cost of the park is reduced by 0.52 % and the annual planning investment cost is reduced by 7.6 % through multi-energy complementarity in the park, which verifies the effectiveness of the proposed method. In addition, the robustness and economy of the planning scheme can be effectively balanced by adjusting the over-limit probability parameters of chance constraints in the model.

Key words: 5G base station, multi-energy industrial park, chance-constrained programming, life cycle cost

中图分类号:

TM715

吴晓鸣, 张辉, 徐冉, 李瑶, 高宁, 王程, 吴润东. 考虑5G基站的多能工业园区全寿命周期供能规划[J]. 电力建设, 2023, 44(3): 15-24.

WU Xiaoming, ZHANG Hui, XU Ran, LI Yao, GAO Ning, WANG Cheng, WU Rundong. Life-Cycle Energy Supply Planning of Multi-Energy Industrial Park Considering 5G Base Station[J]. ELECTRIC POWER CONSTRUCTION, 2023, 44(3): 15-24.

图/表 14

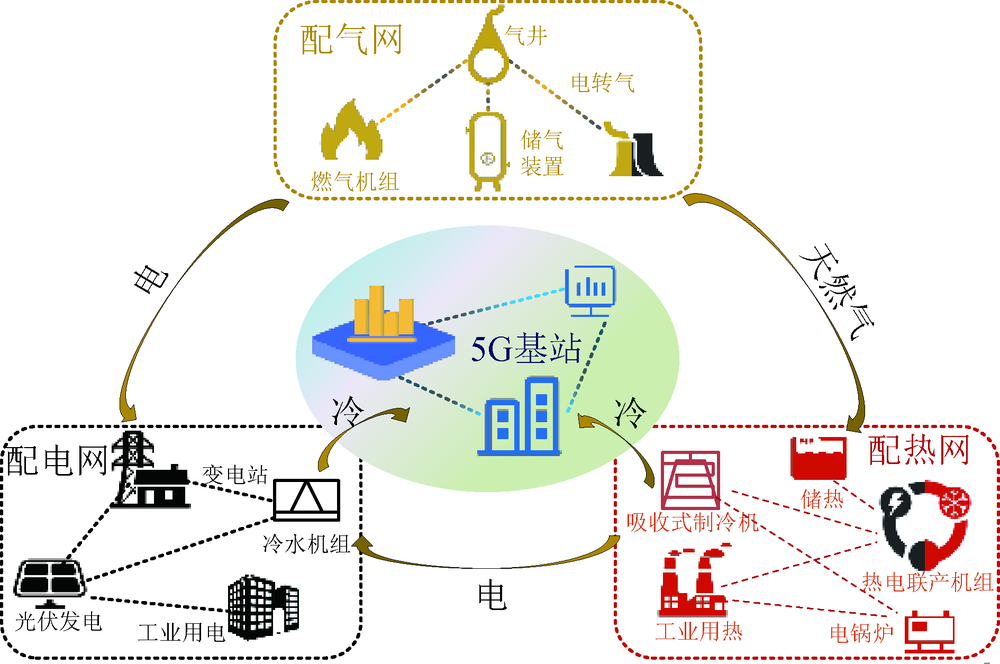

图1 考虑5G基站的工业园区供能系统

Fig.1 Schematic diagram of the integrated energy system considering 5G base station

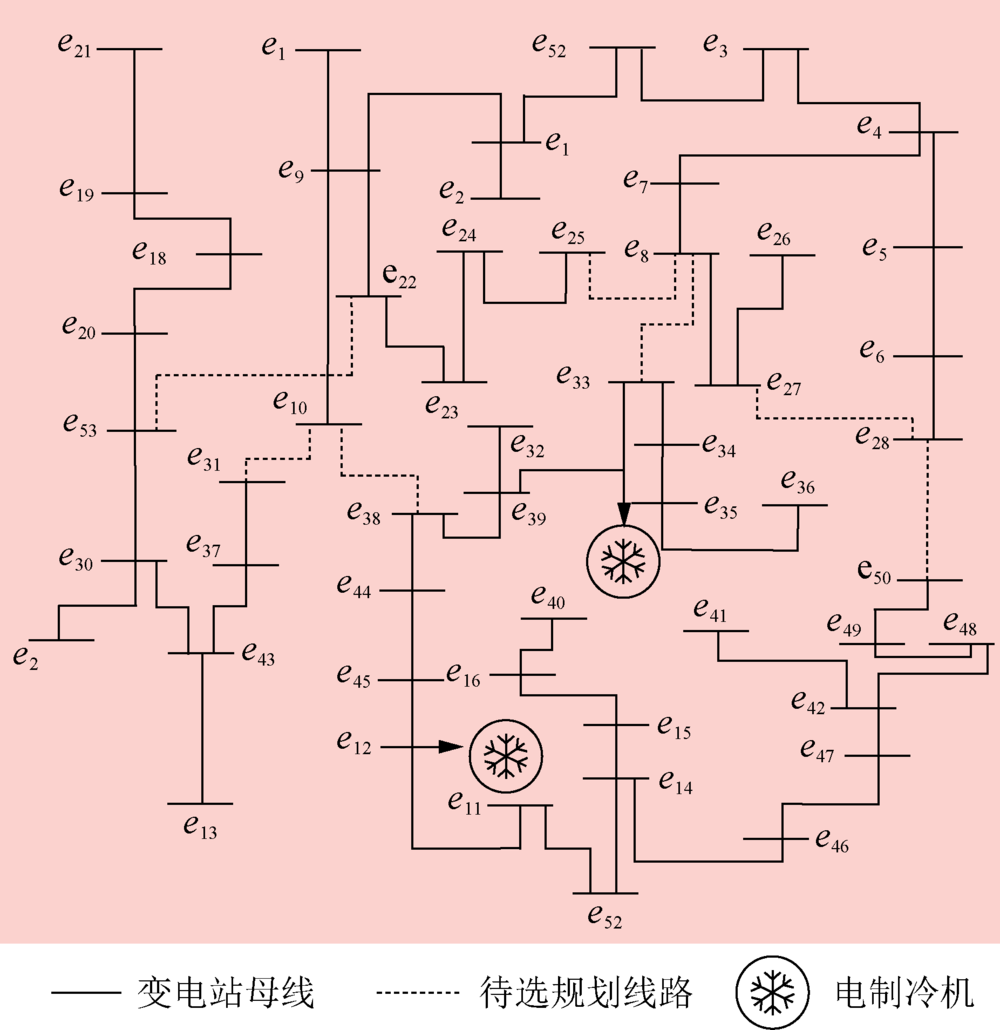

图2 53节点供电网

Fig.2 Power grid with 53 nodes

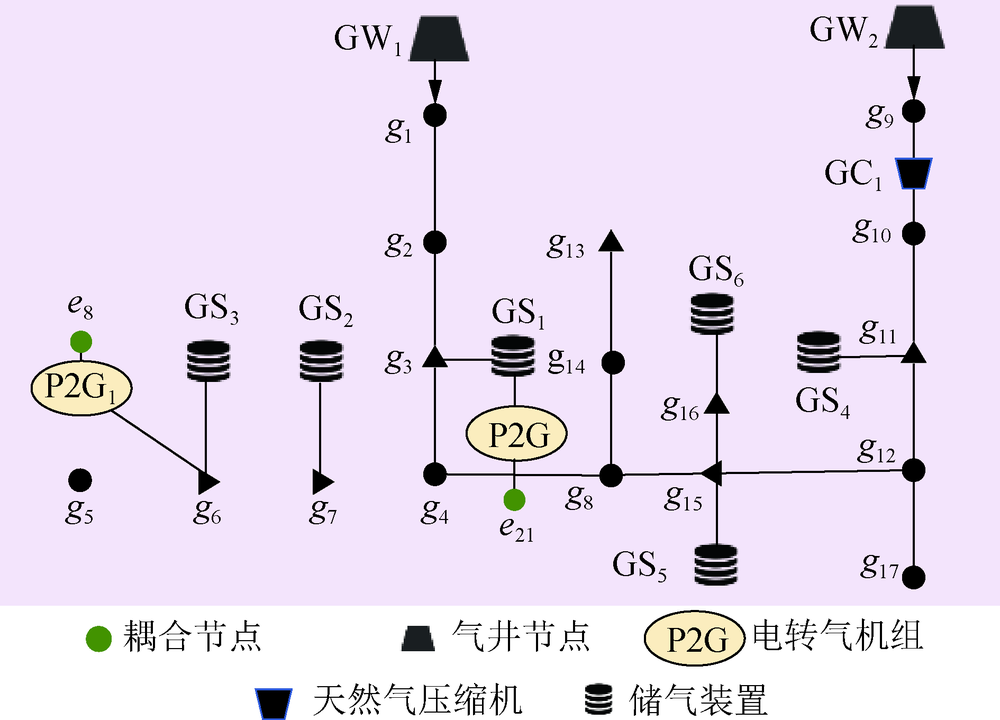

图3 17节点供气网

Fig.3 Gas network with 17 nodes

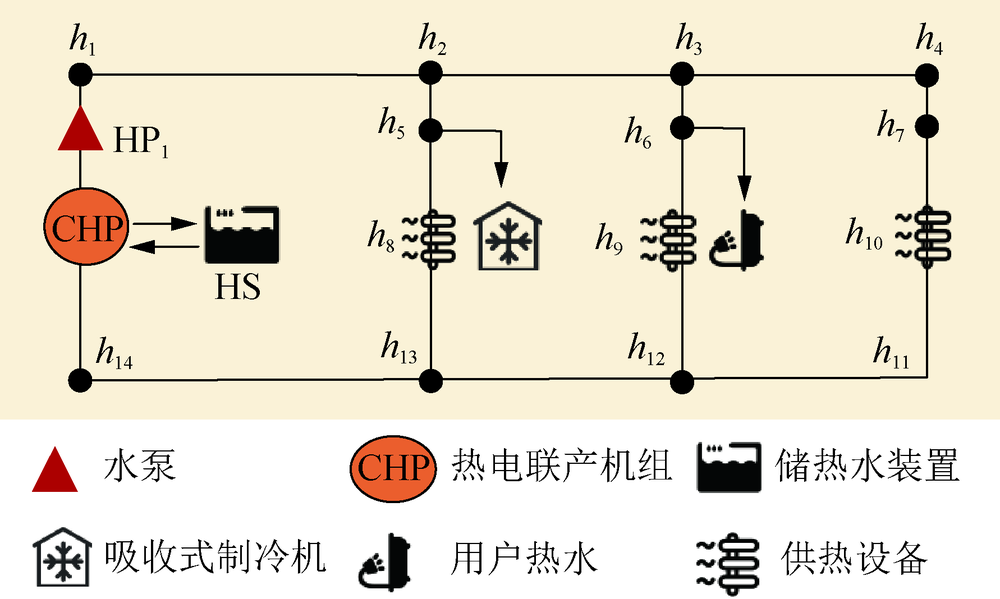

图4 15节点供热网

Fig.4 Heat network with 15 nodes

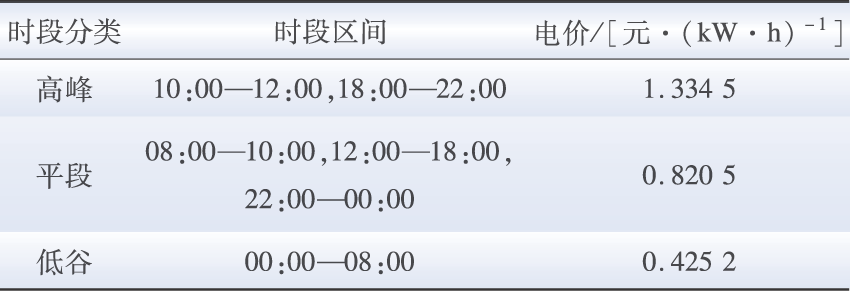

表1 数据中心能源园区分时电价表

Table 1 Time-of-use electricity price of the industrial park

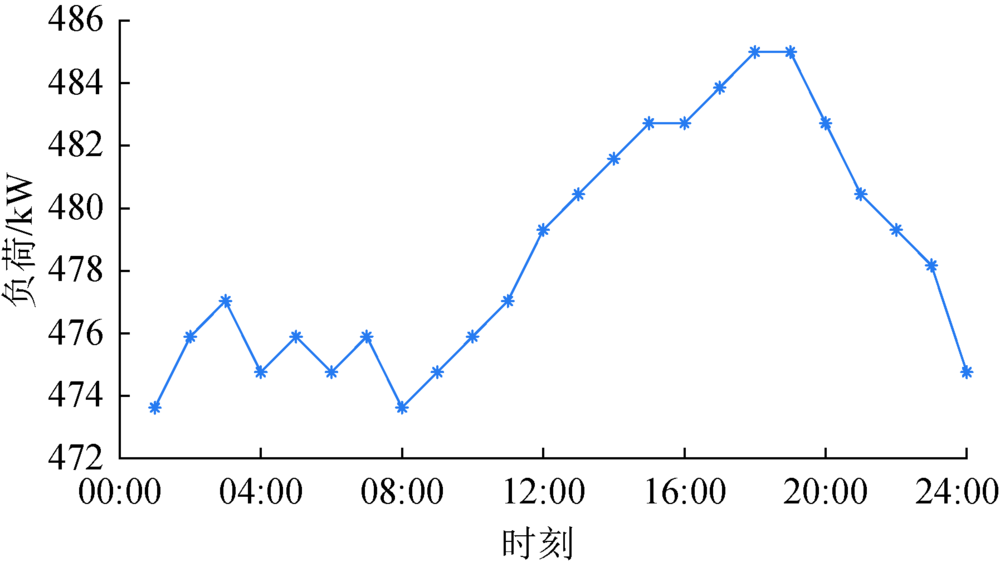

图5 5G基站的典型日负荷曲线

Fig.5 Typical daily load curve of 5G base station

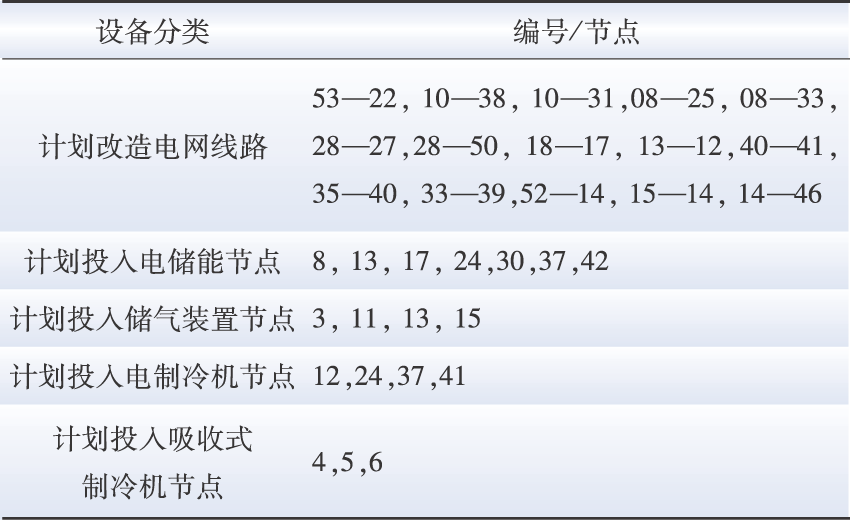

表2 工业园区规划待选设备参数表

Table 2 Parameters of devices to be selected in the industrial park planning

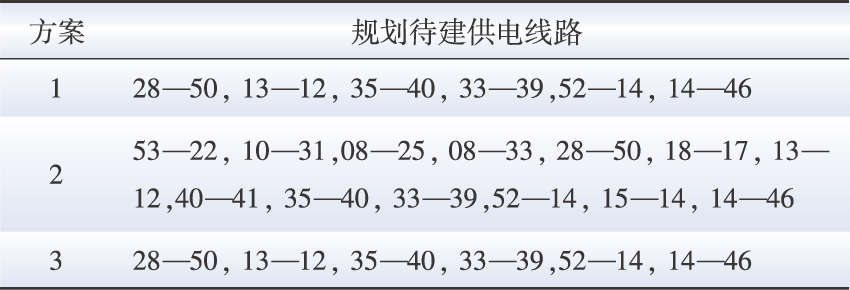

表3 不同方案下供电线路规划情况

Table 3 Planning results of power supply lines under different cases

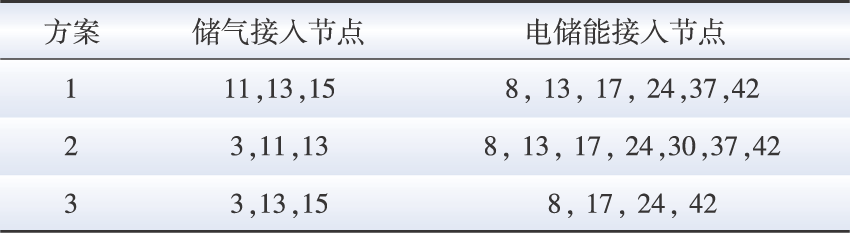

表4 不同方案下储能设备规划情况

Table 4 Planning results of energy storage under different cases

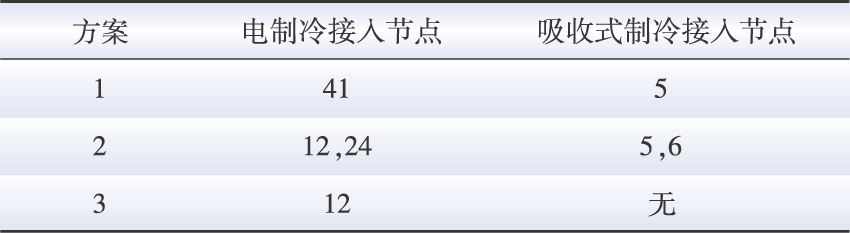

表5 不同方案下制冷设备规划情况

Table 5 Planning results of refrigeration equipment under different cases

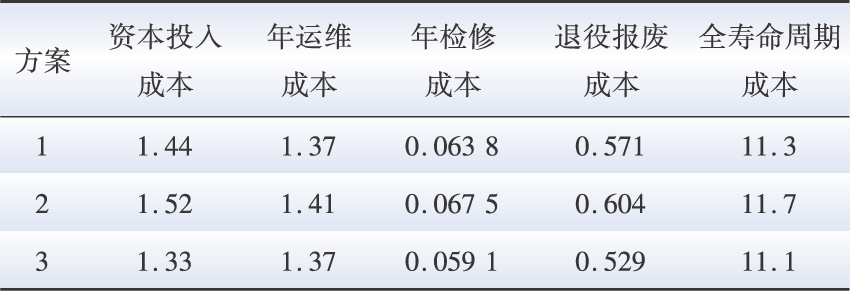

表6 Life cycle costs of different cases 104万元

Table 6

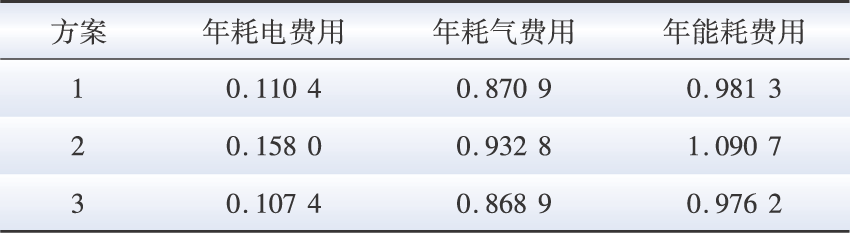

表7 Energy consumption costs of different cases 104万元

Table 7

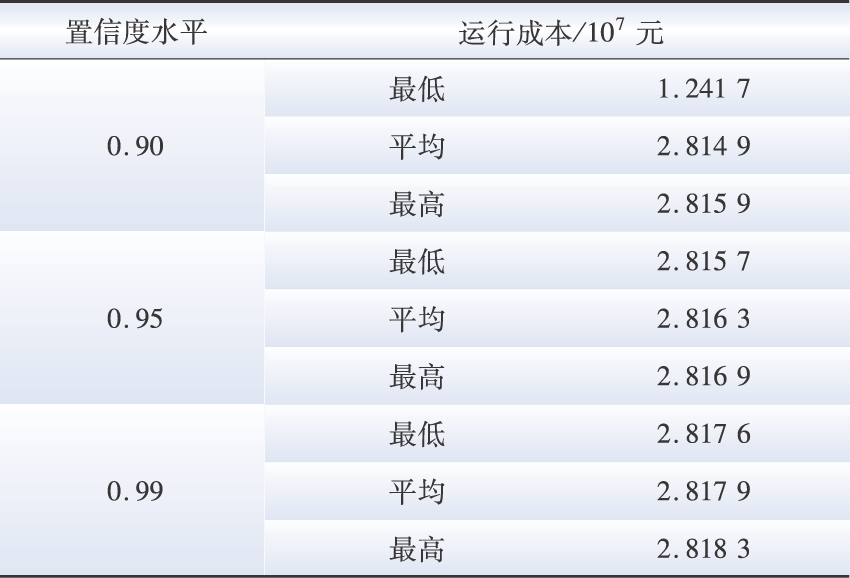

表8 置信度水平对运行成本的影响

Table 8 The impact of confidence level on operating costs

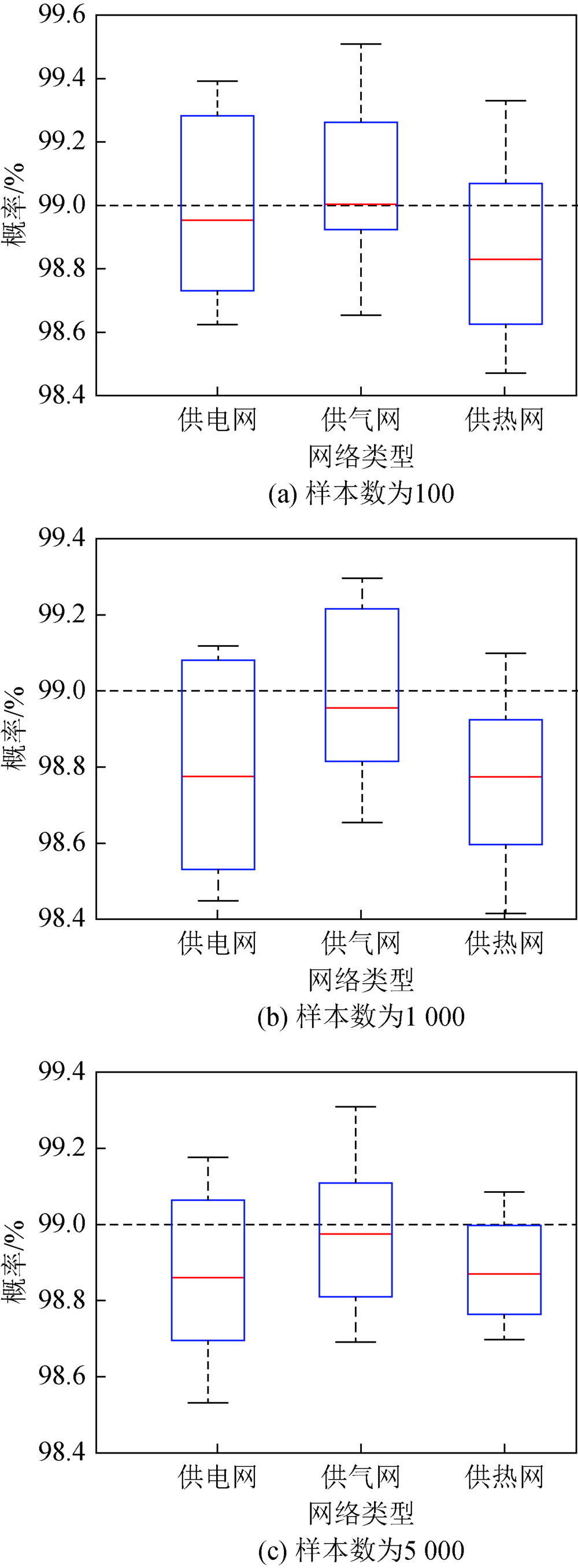

图6 不同样本集条件下园区供能约束越限概率

Fig.6 Probability of energy-supply constraint over-limit under different sample sets

参考文献 27

[1]	王永真, 赵伟, 张靖. 能源互联网下的数据中心能源供应[J]. 能源, 2020(5): 61-65.
	WANG Yongzhen, ZHAO Wei, ZHANG Jing. Energy supply of data center under energy internet[J]. Energy, 2020(5): 61-65.
[2]	国家统计局能源统计司. 2017中国能源统计年鉴[M]. 北京: 中国统计出版社, 2017.
[3]	FETTWEIS G, ZIMMERMANN E. ICT energy consumption-trends and challenges[C]// Proceedings of the 11th International Symposium on Wireless Personal Multimedia Communications. Finland: Lapland, 2008, 2(4): 6.
[4]	曾海燕, 郑鑫. 基于5G移动通信基站选址方法的探究[J]. 智能计算机与应用, 2020, 10(5): 231-232, 237.
	ZENG Haiyan, ZHENG Xin. Research on site selection method of 5G mobile communication base station[J]. Intelligent Computer and Applications, 2020, 10(5): 231-232, 237.
[5]	宋黎. 基于遗传算法的通信基站规划方法研究[D]. 大连: 大连理工大学, 2019.
	SONG Li. Research on communication base station planning method based on genetic algorithm[M]. Dalian: Dalian University of Technology, 2019.
[6]	谢许凯, 程松林. 基于免疫遗传算法的5G基站选址规划[J]. 现代信息科技, 2020, 4(2): 4-6.
	XIE Xukai, CHENG Songlin. Location planning of 5G base station based on immune genetic algorithm[J]. Modern Information Technology, 2020, 4(2): 4-6.
[7]	徐婷. 5G基站规划建设存在的问题分析[J]. 中国新通信, 2021, 23(2): 33-34.
	XU Ting. Analysis of problems in the planning and construction of 5G base station[J]. China New Telecommunications, 2021, 23(2): 33-34.
[8]	刘文凤. 基于城乡规划的5G移动通信基站站址布局研究[J]. 智能城市, 2021, 7(6): 11-12.
	LIU Wenfeng. Research on location layout of 5G mobile communication base station based on urban and rural planning[J]. Intelligent City, 2021, 7(6): 11-12.
[9]	叶健涛, 严锋, 陈广林, 等. 5G基站电源配套建设研究[J]. 广西通信技术, 2021(2): 12-16.
	YE Jiantao, YAN Feng, CHEN Guanglin, et al. Research on supporting construction of 5G base station power supply[J]. Guangxi Communication Technology, 2021(2): 12-16.
[10]	OH E, KRISHNAMACHARI B, LIU X, et al. Toward dynamic energy-efficient operation of cellular network infrastructure[J]. IEEE Communications Magazine, 2011, 49(6): 56-61.
[11]	郑俊杰, 王先峰, 罗顺湖. 面向5G移动通信的基站选址方法及优化策略研究[J]. 电信网技术, 2017(11): 71-74.
	ZHENG Junjie, WANG Xianfeng, LUO Shunhu. Research on base station location method and optimization strategy for 5G mobile communication[J]. Telecommunications Network Technology, 2017(11): 71-74.
[12]	郭丰. 燃气冷热电三联供系统在数据中心的应用[J]. 应用能源技术, 2020(8): 5-9.
	GUO Feng. Application of gas-fired cooling, heating and power generation system in data center[J]. Applied Energy Technology, 2020(8): 5-9.
[13]	李明友. 中国建设项目全寿命成本管理现状分析与实践研究[J]. 建筑经济, 2007, 28(3): 33-35.
	LI Mingyou. Research on the current situation and countermeasures of life cycle cost management in Chinese construction projects[J]. Construction Economy, 2007, 28(3): 33-35.
[14]	刘志松, 王涛, 冯艳, 等. 面向工业园区的供水-供能耦合系统鲁棒规划方法[J]. 中国电力, 2021, 54(7): 56-66.
	LIU Zhisong, WANG Tao, FENG Yan, et al. Robust co-planning of water-energy nexus for industrial parks[J]. Electric Power, 2021, 54(7): 56-66.
[15]	高宁. 考虑水-能耦合关系的综合能源系统运行优化研究[D]. 北京: 华北电力大学, 2021.
	GAO Ning. Research on the operation optimization of the integrated energy system considering water-energy nexus[D]. Beijing: North China Electric Power University, 2021.
[16]	GUO T, HENWOOD M I, VAN OOIJEN M. An algorithm for combined heat and power economic dispatch[J]. IEEE Transactions on Power Systems, 1996, 11(4): 1778-1784. doi: 10.1109/59.544642 URL
[17]	顾江其. 冷热电联供系统的特性建模与运行分析[D]. 南京: 东南大学, 2019.
	GU Jiangqi. Characteristic modeling and operating anaysis of the combined cooling heating and power[D]. Nanjing: Southeast University, 2019.
[18]	王谢康. 含蓄冷/热的园区综合能源系统优化运行的研究与应用[D]. 天津: 天津理工大学, 2021.
	WANG Xiekang. Research and application of optimizedoperation of park integrated energy system with cold/heat storage[D]. Tianjin: Tianjin University of Technology, 2021.
[19]	白森珂. 含电-气-热-冷多能源系统运行优化研究[D]. 西安: 西安科技大学, 2020.
	BAI Senke. Research on operation optimization of muti-energy system containing electricity-gas-heat-cool[D]. Xi’an: Xi’an University of Science an Technology, 2020.
[20]	杨晓辉, 宋曜任, 陈再星, 等. 综合需求响应对冷热电联供系统规划运行的影响分析[J]. 实验室研究与探索, 2021, 40(9): 109-113.
	YANG Xiaohui, SONG Yaoren, CHEN Zaixing, et al. Effect analysis of integrated demand response on the planning and operation of cooling and heating power systems[J]. Research and Exploration in Laboratory, 2021, 40(9): 109-113.
[21]	马丽叶, 王志强, 陆肖宇, 等. 基于机会约束规划的风-火-蓄联合系统优化调度[J]. 电网技术, 2019, 43(9): 3311-3320.
	MA Liye, WANG Zhiqiang, LU Xiaoyu, et al. Optimal scheduling of combined wind-thermo-storage system based on chance constrained programming[J]. Power System Technology, 2019, 43(9): 3311-3320.
[22]	LIU F, BIE Z H, WANG X. Day-ahead dispatch of integrated electricity and natural gas system considering reserve scheduling and renewable uncertainties[J]. IEEE Transactions on Sustainable Energy, 2019, 10(2): 646-658. doi: 10.1109/TSTE.5165391 URL
[23]	徐杨杨, 张新松, 陆胜男, 等. 多重随机特性下的电动汽车充电网络机会约束规划[J]. 电力系统保护与控制, 2021, 49(6):30-39.
	XU Yangyang, ZHANG Xinsong, LU Shengnan, et al. Chance constrained optimization of an electric vehicle charging network with multiple stochastic characteristics[J]. Power System Protection and Control, 2021, 49(6):30-39.
[24]	杨贤东, 袁旭峰, 熊炜, 等. 考虑源荷不确定性的风光火储系统低碳经济调度[J]. 智慧电力, 2022, 50(8):22-29,53.
	YANG Xiandong, YUAN Xufeng, XIONG Wei, et al. Low-carbon economic dispatch of wind-solar-fired-storage system considering source-load uncertainty[J]. Smart Power, 2022, 50(8): 22-29,53.
[25]	WU H Y, SHAHIDEHPOUR M, LI Z Y, et al. Chance-constrained day-ahead scheduling in stochastic power system operation[J]. IEEE Transactions on Power Systems, 2014, 29(4): 1583-1591. doi: 10.1109/TPWRS.2013.2296438 URL
[26]	XIE W J, AHMED S. Distributionally robust chance constrained optimal power flow with renewables: a conic reformulation[J]. IEEE Transactions on Power Systems, 2018, 33(2): 1860-1867. doi: 10.1109/TPWRS.59 URL
[27]	郇嘉嘉, 赵瑾, 曾诚玉, 等. 园区综合能源系统规划及优化配置方案[J]. 现代电力, 2020, 37(3): 303-309.
	HUAN Jiajia, ZHAO Jin, ZENG Chengyu, et al. Integrated energy system planning in parks and optimal allocation schemes[J]. Modern Electric Power, 2020, 37(3): 303-309.
