考虑竞争偏好的数据中心-电动汽车用能联合优化策略

张祥成¹(), 刘飞¹(), 田旭¹(), 王世斌¹(), 杜亚彬²(), 李彬²()

1.国网青海省电力公司经济技术研究院,西宁市 810001
2.华北电力大学电气与电子工程学院,北京市 102206

收稿日期:2022-04-18 出版日期:2023-03-01 发布日期:2023-03-02
通讯作者: 杜亚彬(1998),男,硕士研究生, 主要从事数据中心能耗优化、需求侧管理等技术研究工作,E-mail:dyb19980214@126.com
作者简介:张祥成(1983),男,学士,高级工程师,从事电网规划设计及新能源并网发电技术研究工作,E-mail:zxcheng4031@qh.sgcc.com
刘飞(1988),男,硕士,高级工程师,从事电网规划设计及新能源并网发电技术研究工作,E-mail:liufei602@163.com
田旭(1990),男,学士,工程师,从事电力系统规划设计、新能源并网发电研究工作,E-mail:tianxu0111@163.com
王世斌(1995),男,学士,工程师,从事电网规划设计及新能源并网发电技术研究工作,E-mail:1047265141@qq.com
李彬(1983),男,博士,副教授,主要从事电力通信、电气信息技术相关研究工作,E-mail:direfish@163.com
基金资助:
国家自然科学基金项目“信息-物理-社会多域耦合下的数据中心与配电网交互集成方法研究”(52177082);国家电网有限公司科技项目“电力系统需求侧用户可调节潜力测算与发展规划研究”(SGQHJY00GHJS2100232)

Joint Optimization Strategy for Energy Consumption of Data Center and Electric Vehicles Considering Competitive Preference

ZHANG Xiangcheng¹(), LIU Fei¹(), TIAN Xu¹(), WANG Shibin¹(), DU Yabin²(), LI Bin²()

1. Economic and Technological Research Institute of State Grid Qinghai Electric Power Company, Xining 810001, China
2. School of Electrical and Electronic Engineering, North China Electric Power University, Beijing 102206, China

Received:2022-04-18 Online:2023-03-01 Published:2023-03-02
Supported by:
National Natural Science Foundation of China(52177082);State Grid Corporation of China Research Program(SGQHJY00GHJS2100232)

摘要/Abstract

摘要：

利用现场可再生能源有利于数据中心降低用能成本、减少碳排放,但可再生能源出力的间歇性会导致部分现场可再生能源无法得到有效的利用。因此,利用数据中心负载的可调节特性,设计了数据中心运营商与电动汽车运营商可再生能源联合消纳机制,从而达到完成剩余可再生能源的利用。充分考虑多元主体竞争偏好行为,基于Stackelberg博弈理论,建立了由能源服务商代售的单一模型和直接售电与能源服务商代售结合的多重模型。根据电动汽车充电站日充电负荷的需求和2种模式优势对比,最终提出一种考虑竞争偏好的数据中心-电动汽车用能联合优化策略,并进行仿真与分析,结果表明所采用的优化策略具有较好的经济收益。

关键词: 数据中心, 可再生能源消纳, 竞争偏好, Stackelberg博弈, 电动汽车

Abstract:

The use of on-site renewable energy is beneficial to the data center to reduce energy costs and carbon emissions, but the intermittent output of renewable energy will lead to the ineffective use of some on-site renewable energy. According to the adjustable characteristics of data center load, this paper designs a joint renewable energy consumption mechanism between data center operators and electric vehicle operators, so as to achieve the utilization of residual renewable energy. According to Stackelberg game theory, this paper fully considers the competitive preference behavior of multiple subjects, and establishes a single model of energy service providers' consignment and a multiple model that considers the combination of direct electricity sales and energy service providers' consignment. According to the demand of daily charging load of electric vehicle charging station and the comparison of advantages of the two modes, a joint optimization strategy for energy consumption of data center and electric vehicles considering competitive preference is finally proposed. Simulation and analysis results show that the optimization strategy adopted in this paper has good economic benefits.

Key words: data center, renewable energy consumption, competitive preference, Stackelberg game, electric vehicle

中图分类号:

TM73

张祥成, 刘飞, 田旭, 王世斌, 杜亚彬, 李彬. 考虑竞争偏好的数据中心-电动汽车用能联合优化策略[J]. 电力建设, 2023, 44(3): 85-92.

ZHANG Xiangcheng, LIU Fei, TIAN Xu, WANG Shibin, DU Yabin, LI Bin. Joint Optimization Strategy for Energy Consumption of Data Center and Electric Vehicles Considering Competitive Preference[J]. ELECTRIC POWER CONSTRUCTION, 2023, 44(3): 85-92.

图/表 11

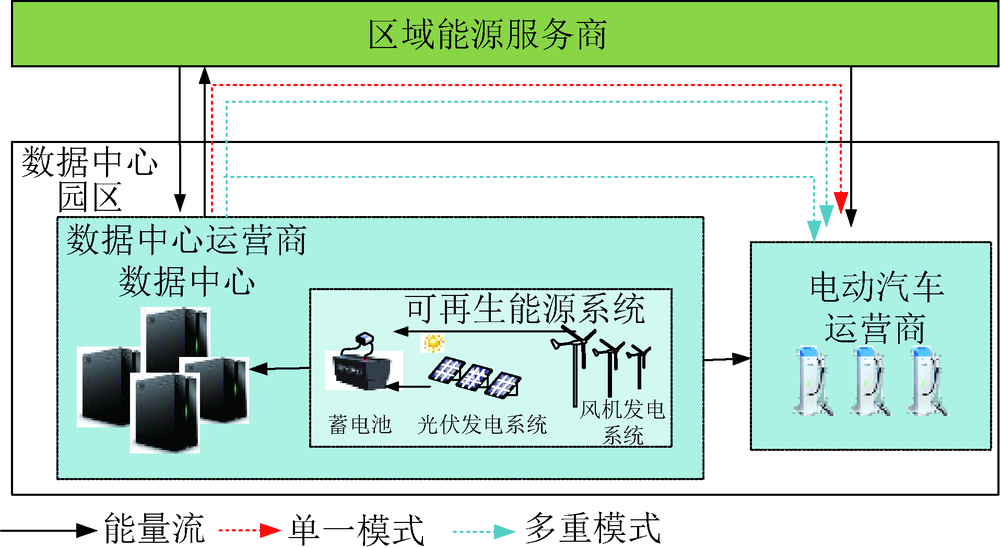

图1 系统架构

Fig.1 System architecture

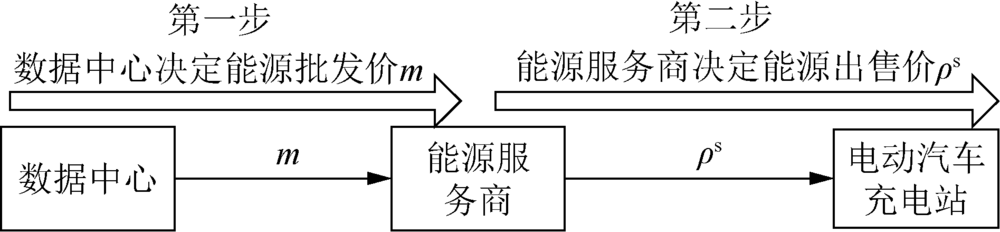

图2 单一模式

Fig.2 Single mode

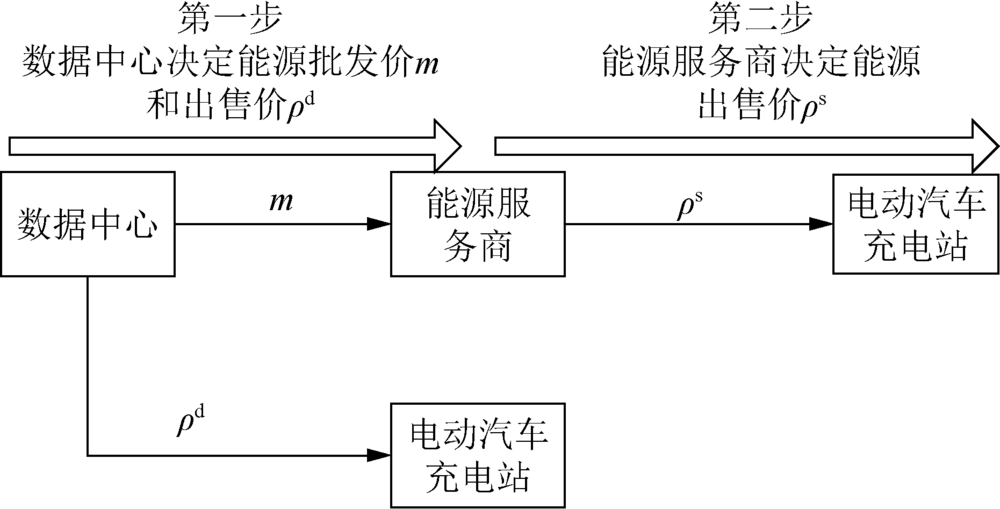

图3 多重模式

Fig.3 Multiple mode

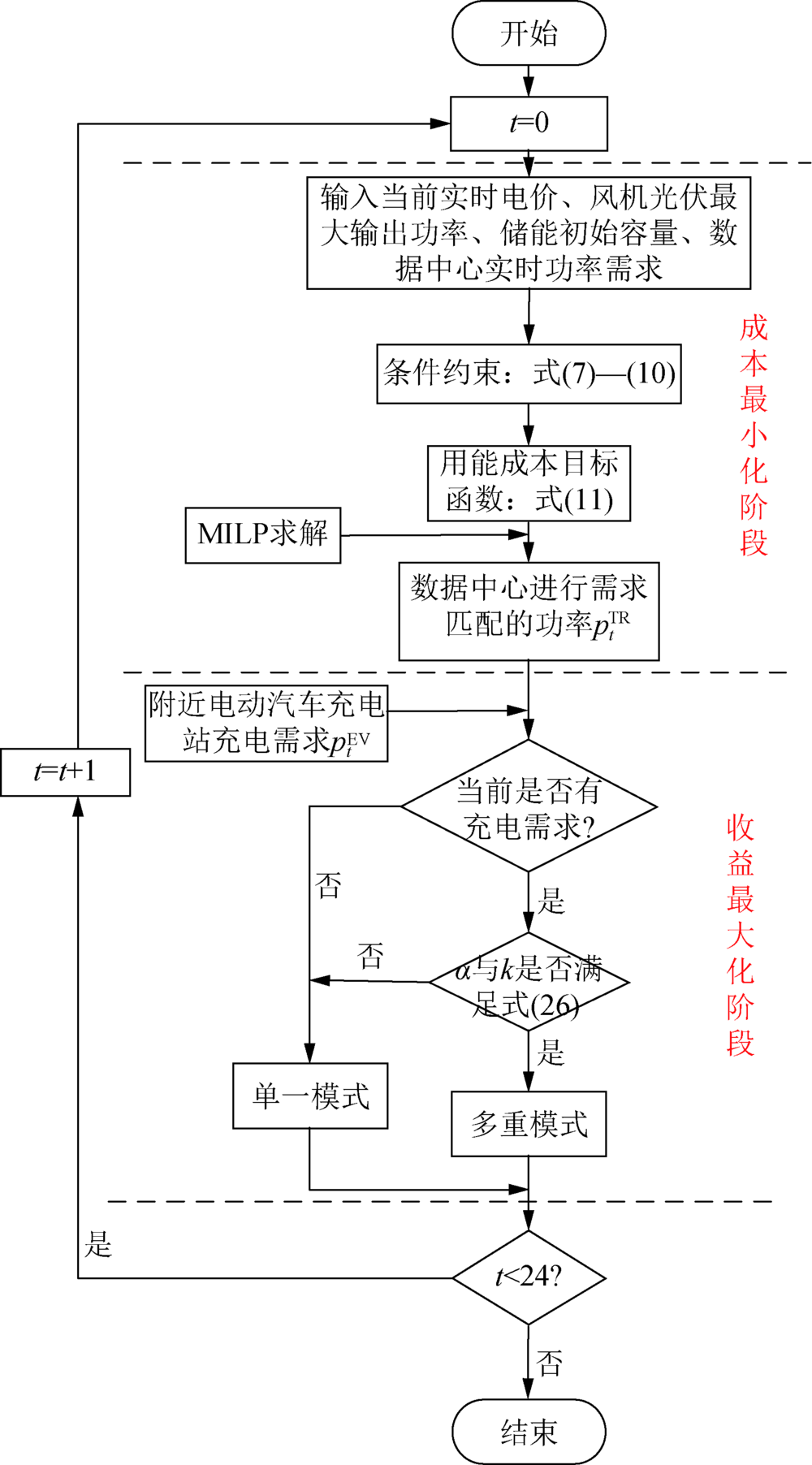

图4 考虑供需关系的能源联合消纳策略流程

Fig.4 Joint energy consumption strategy process considering the relationship between supply and demand

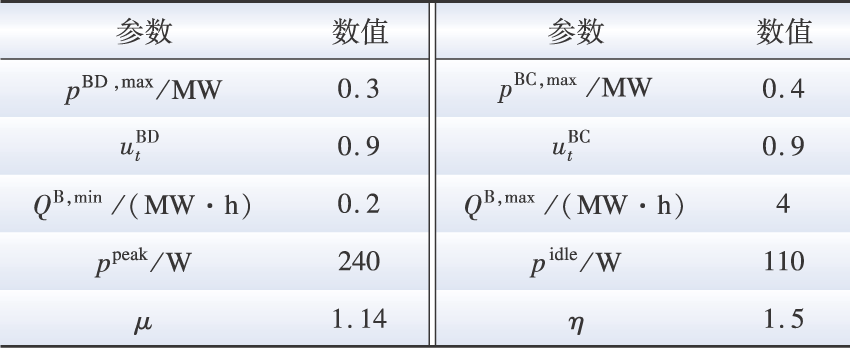

表1 系统主要参数设定

Table 1 System key parameter setting

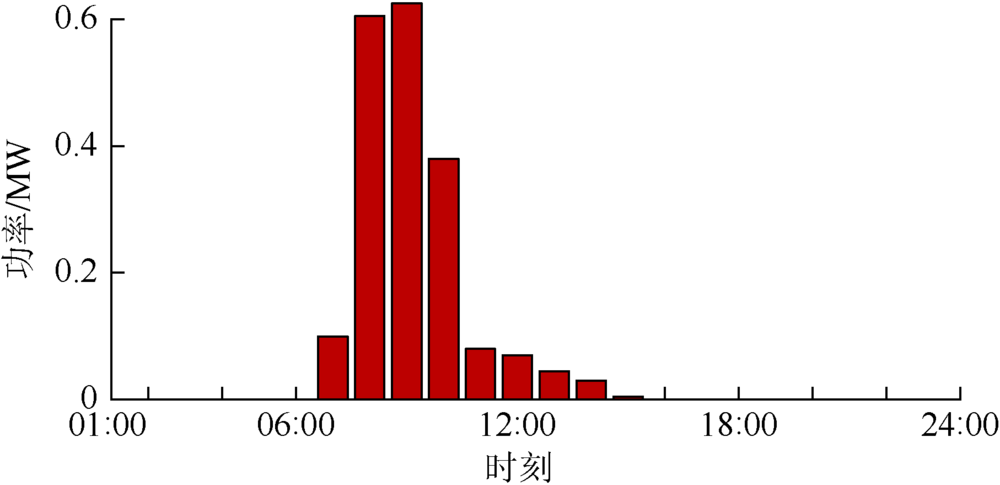

图5 充电站日充电负荷

Fig.5 Daily charging load of charging station

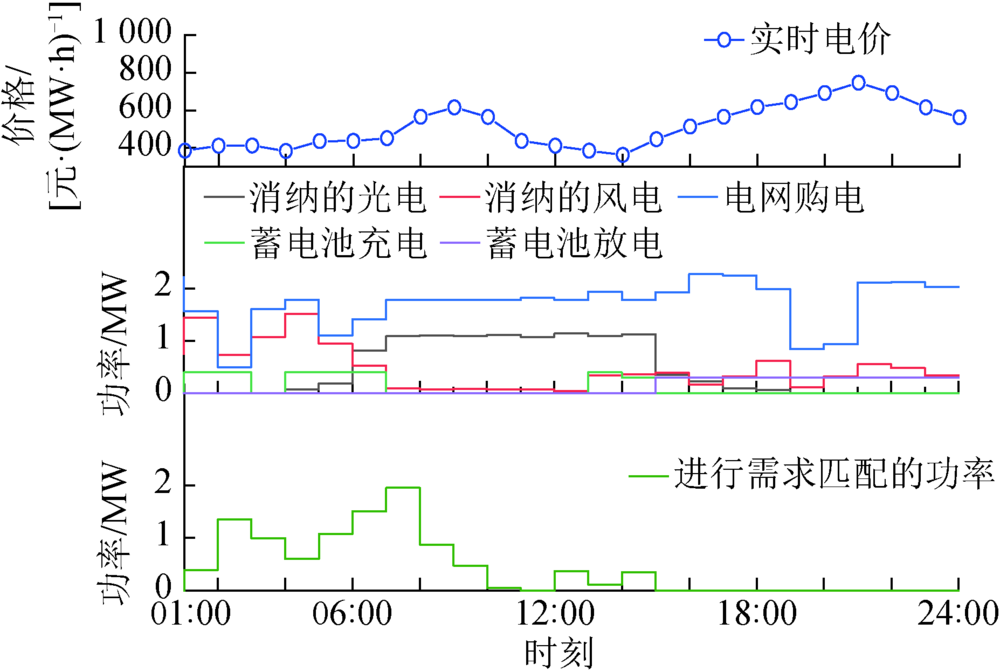

图6 数据中心能源利用情况

Fig.6 Data center energy utilization

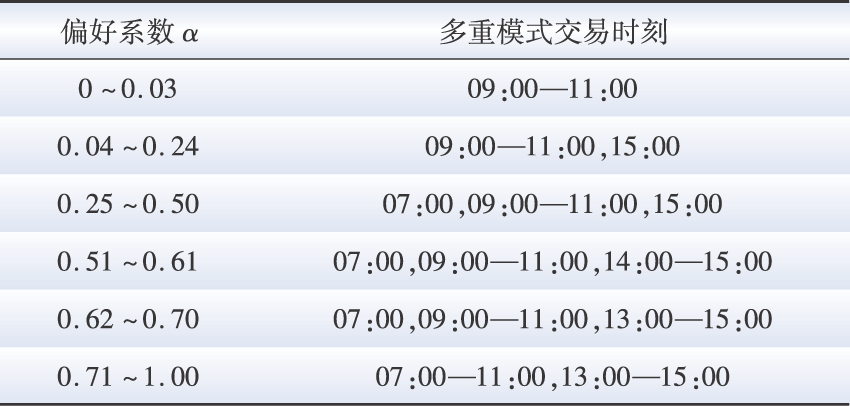

表2 不同偏好下多重模式的交易时刻

Table 2 Multi-mode trading time under different preference

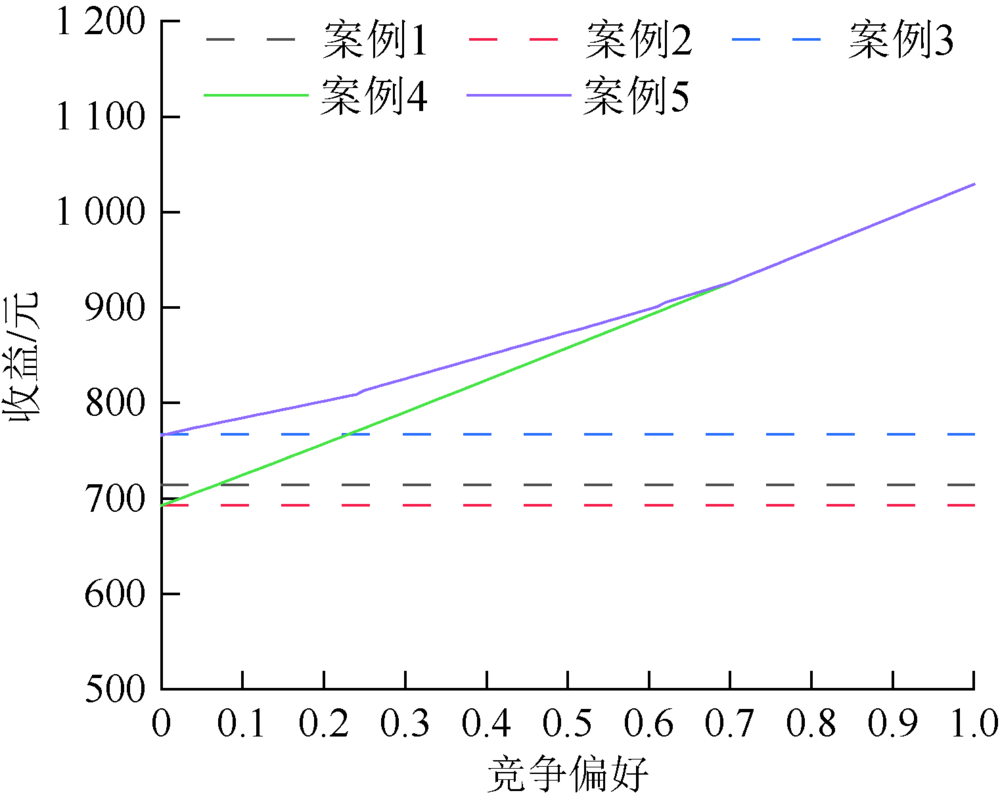

图7 各交易案例中竞争偏好与收益的关系

Fig.7 The relationship between competitive preference and revenue in different trading scenarios

图8 不同价格弹性系数下的各种案例收益分析

Fig.8 Revenue analysis of each scenarios under different price elasticity coefficients

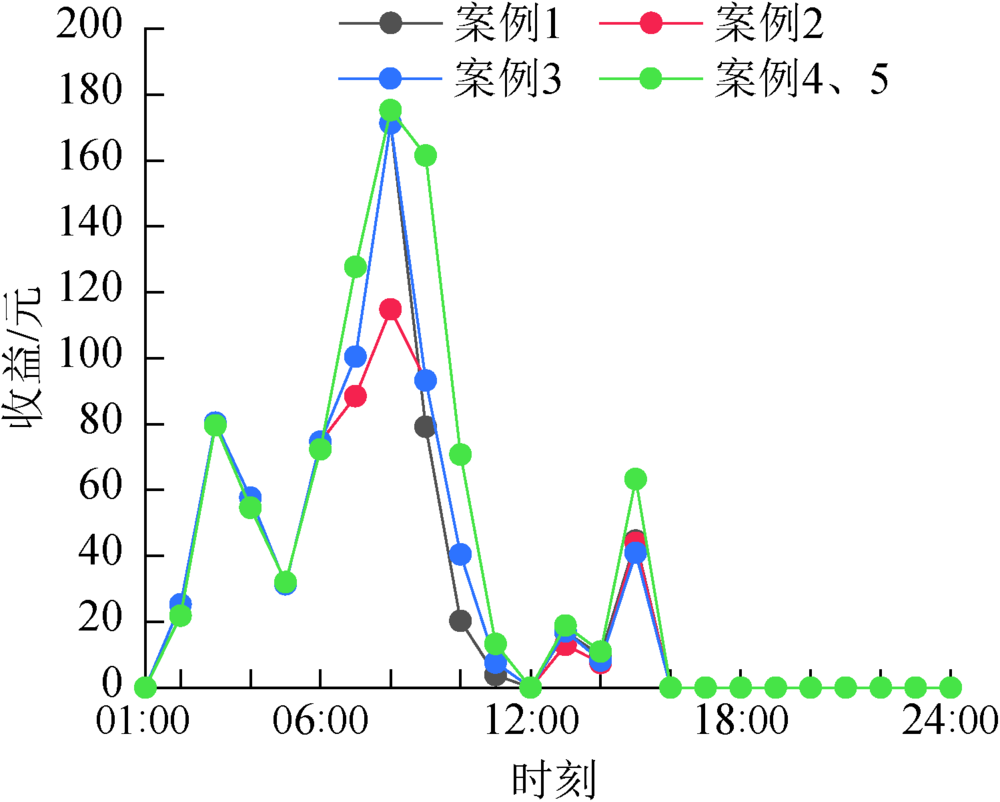

图9 各案例24 h收益
