Ultra-short-term Load Forecasting Using Hybrid Neural Network Based on Parallel Multi-model Combination

doi:10.12204/j.issn.1000-7229.2020.10.001

Abstract

Abstract:

For the purpose of addressing the difficulty of improving load forecasting accuracy brought by enormous input data features, a method based on hybrid neural network using parallel multi-model combination is proposed. In order to respectively extract local features and time-series features, this paper places the convolutional neural network (CNN) in parallel with the gated recurrent unit (GRU) structure, then concatenates the output of two network structures and inputs to a deep neural network, uses deep neural network to perform load forecasting. Through a prediction experiment of load and temperature data by using the proposed method, the experiment results show that, compared with GRU-NN model, long short term memory (LSTM) model, serial CNN-LSTM network model and serial CNN-GRU network model, the proposed method shows better prediction performance.

Key words: ultra-short-term load forecasting, convolutional neural network (CNN), gated recurrent unit (GRU), deep neural network (DNN), feature extraction

CLC Number:

TM715

ZHUANG Jiayi, YANG Guohua, ZHENG Haofeng, WANG Yudong, HU Ruikun, DING Xu. Ultra-short-term Load Forecasting Using Hybrid Neural Network Based on Parallel Multi-model Combination[J]. ELECTRIC POWER CONSTRUCTION, 2020, 41(10): 1-8.

Figures/Tables 12

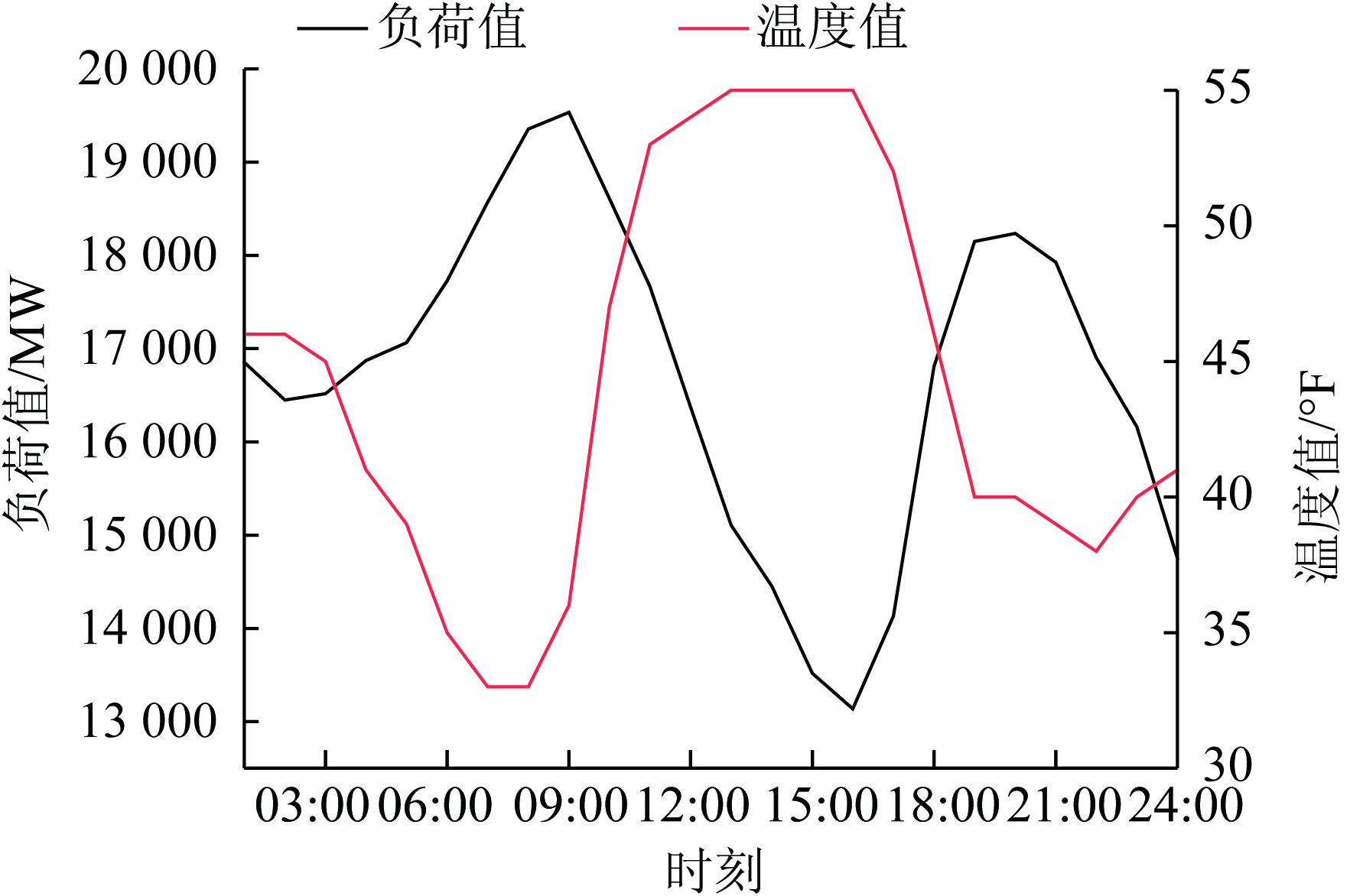

Fig.1 Comparison of load and temperature on January 1st

Fig.2 Comparison of load and temperature on July 5th

Fig.3 Basic structure of GRU

Fig.4 Structure of hybrid neural network using parallel multi-model combination

Fig.5 Sliding window structure of input and output

Table 1 Prediction metrics comparison of hybrid neural network under different GRU structure

Table 2 Prediction metrics comparison of hybrid neural network under different CNN structure

Table 3 Structure and parameters of hybrid neural network

Table 4 Comparison of MAPE and RMSE under different model prediction

Fig.6 Comparison of single model and multi-model predicted and practical curves

Table 5 Comparison of model prediction accuracy

Fig.7 Comparison of multi-model predicted and practical curves
