Optimal Planning for Soft Open Point Integrated with ESS to Improve the Economy of Active Distribution Network

doi:10.12204/j.issn.1000-7229.2020.10.007

Abstract

Abstract:

With the increasing penetration of renewable distributed generators (DGs), combined with the power regulation capabilities of soft open point (SOP) and the characteristics of energy storage system (ESS), SOP integrated with ESS (ESOP) can adjust the power flow and enhance the economy of active distribution networks (ADNs) in spatial and temporal aspects. Considering the complex physical structure and high investment cost of ESOP, reasonable capacity configuration of inverter and energy storage battery should be selected in the planning stage to enhance the comprehensive benefits of the ADNs. Firstly, the structure and mathematical model of ESOP are elaborated in this paper. Secondly, to establish the ESOP planning model of ADNs, the minimum comprehensive cost of the network is taken as the object and the operation constraints of ESOP and ADNs are considered. Finally, the second-order cone-programming algorithm is used to solve the proposed model, and the effectiveness of the proposed planning model is verified by a modified IEEE 33-node test system. The results show that the proposed ESOP planning model can effectively reduce the comprehensive cost and improve the economy of ADNs.

Key words: active distribution network, soft open point integrated with energy storage system, optimal configuration, operation economy

CLC Number:

TM715

WANG Junfeng, KONG Lingsheng, FAN Xinming, PENG Yuanquan, CHEN Hao, SONG Guanyu. Optimal Planning for Soft Open Point Integrated with ESS to Improve the Economy of Active Distribution Network[J]. ELECTRIC POWER CONSTRUCTION, 2020, 41(10): 63-70.

Figures/Tables 10

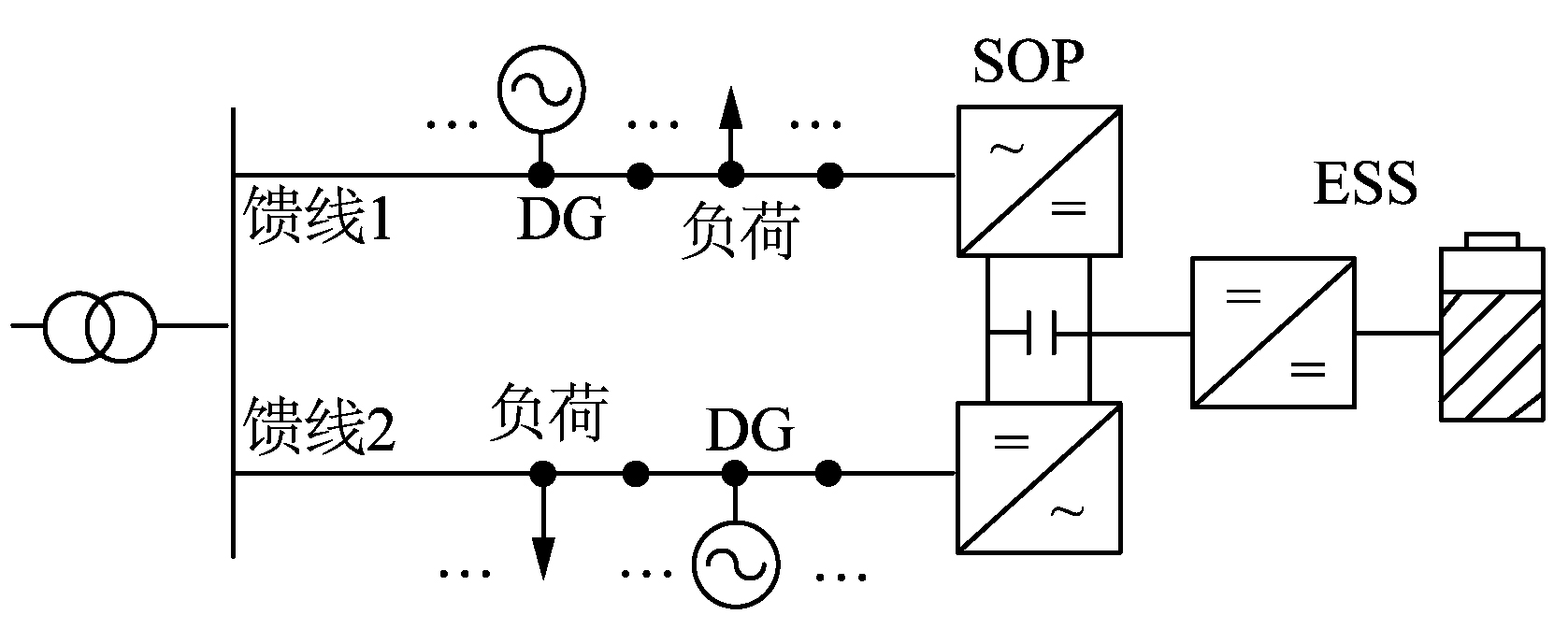

Fig.1 ESOP in a medium-voltage distribution network
