Optimal Scheduling Strategy for Integrated Energy System Considering Mixed Uncertainties of Integrated Demand Response

doi:10.12204/j.issn.1000-7229.2022.09.007

Abstract

Abstract:

Integrated demand response (IDR) is the main means to exploit the load-side regulation potential of the integrated energy system (IES). However, IDR users’ energy consumption behaviors are characterized by random-fuzzy mixed uncertainties, which will not only bring challenges to the formulation of scheduling strategy, but also affect the reliability of the system, and may even lead to load outage. To solve the above problem, firstly, a model based on the improved PMV-PPD index to evaluate user participation willingness is proposed. Secondly, according to the cloud model theory, a price IDR model considering mixed uncertainties is established. On the basis of these, the IES optimal scheduling strategy considering the uncertainties of various energy response boundaries and price elasticity coefficients is proposed. The results of examples show that the proposed IES optimal scheduling strategy can better deal with the load fluctuation caused by the uncertainties of IDR and improve system reliability effectively.

Key words: integrated energy system(IES), integrated demand response(IDR), optimal scheduling, mixed uncertainties, reliability, cloud model

CLC Number:

TM732

YANG Zhihao, LIU Hang, WEN Ming, ZHAO Haipeng, LIAO Jing, MIAO Shihong. Optimal Scheduling Strategy for Integrated Energy System Considering Mixed Uncertainties of Integrated Demand Response[J]. ELECTRIC POWER CONSTRUCTION, 2022, 43(9): 66-76.

Figures/Tables 15

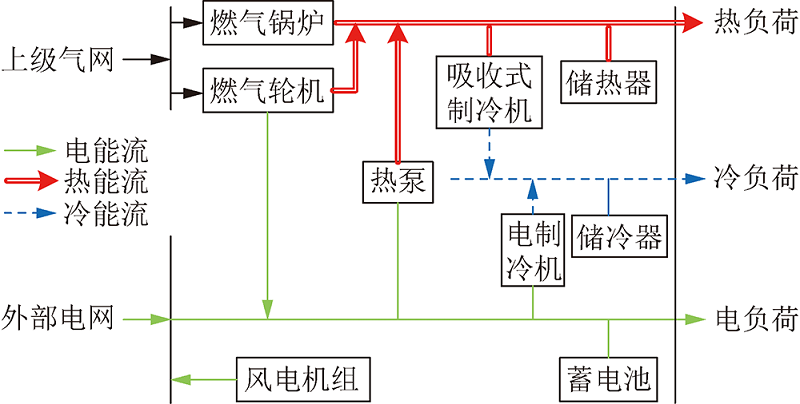

Fig.1 Basic framework of IES

Fig.2 Cloud droplet diagram with the coefficient of elastic uncertainty

Fig.3 The implementation process of IES optimal scheduling strategy

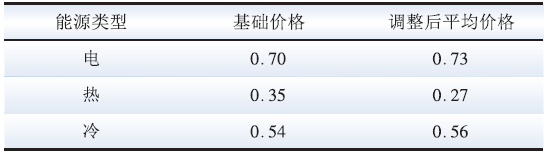

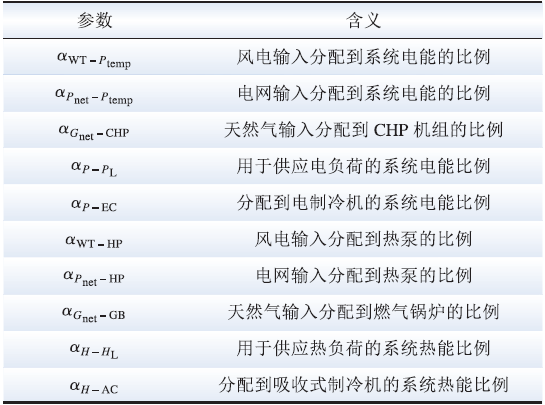

Table 1

Fig.4 The comparison of load curves before and after scheduling in S1

Fig.5 The fitness curves of PSO

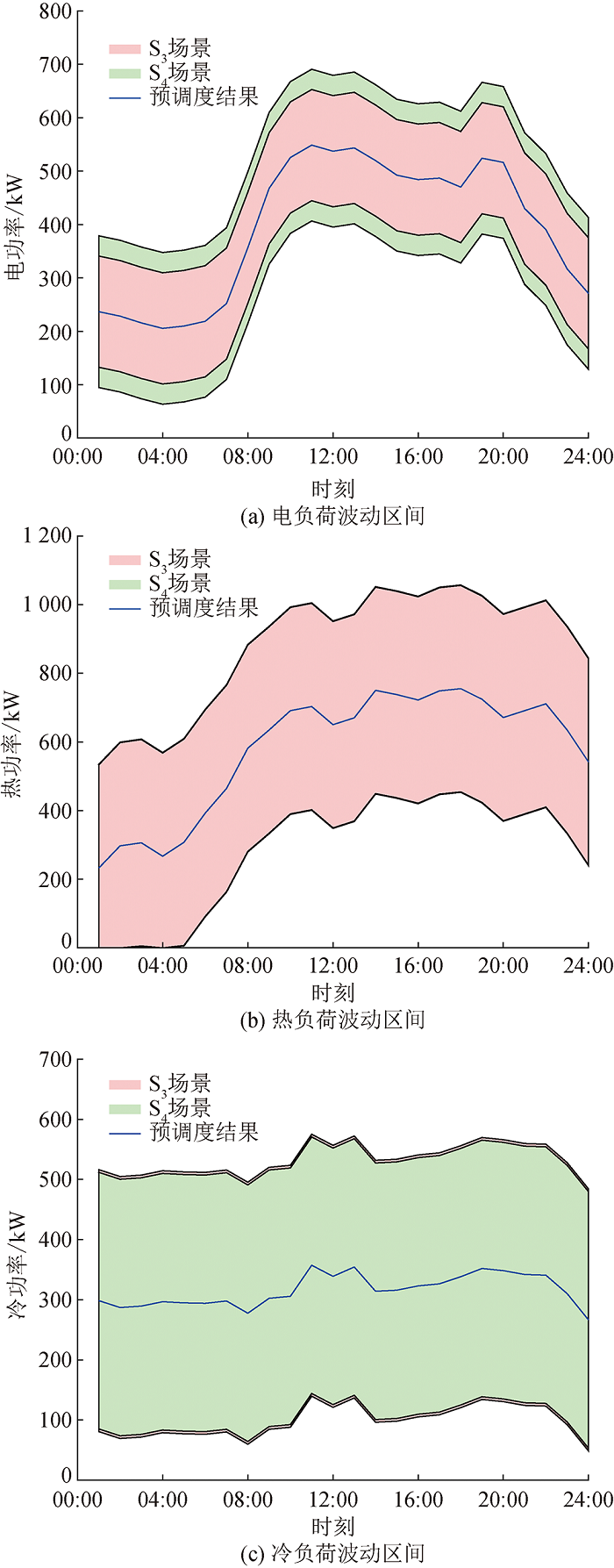

Fig.6 Fluctuation range of the loads in S2, S3 and S4

Fig.7 Available range of loads in S3 and S4 strategies

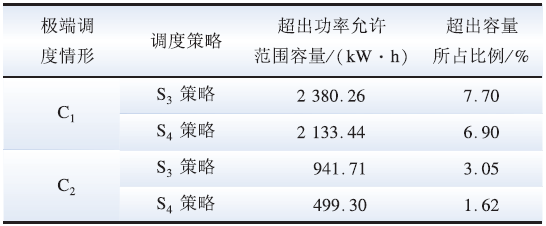

Table 2 Reliability comparison of scheduling strategies in S3 and S4

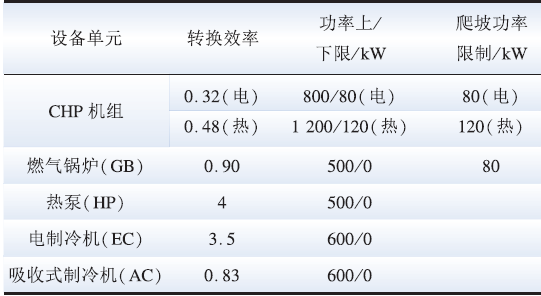

Table A1 Parameters of productive equipment in IES

Table A2 Parameters of productive equipment in IES

Fig.A1 The relationship between energy prices and demand response

Fig.A2 Variation range of demand response

Fig.A3 Cloud droplet diagram of user willingness to participate IDR

Fig.A4 Forecasting curves of power, heating, cooling loads, and the maximum output of wind power

References 25
