Distributed Planning Model of Renewable Vehicle Energy Supply Station Considering Seasonal Hydrogen Storage

doi:10.12204/j.issn.1000-7229.2022.12.004

Abstract

Abstract:

In order to overcome the information barrier of power-transportation system and improve the low utilization rate of renewable power generations, a distributed planning model of renewable vehicle energy supply system considering seasonal hydrogen storage is proposed in this paper. Firstly, an energy supply architecture including winter-summer cross-seasonal hydrogen storage is proposed, and the operation behaviors of distribution network, combined energy supply station, and transportation network are modeled. Secondly, an electric-transportation joint planning model is established with the goal of economy. Then, a tailored alternating direction multiplier methool (ADMM) is proposed to realize the distributed solution of energy supply system and transportation system. Finally, the validity and advancement of seasonal hydrogen storage model and distributed algorithm are verified based on IEEE 33-node power distribution network and 12-node typical transportation network, and the synergies among various storages are discussed.

Key words: energy supply station planning, distributed solution, tailored alternating direction multiplier method(ADMM), seasonal hydrogen storage

CLC Number:

TM715

WENG Changhong, HU Zhijian, ZHANG Chengsheng, LI Xiang, WANG Fang. Distributed Planning Model of Renewable Vehicle Energy Supply Station Considering Seasonal Hydrogen Storage[J]. ELECTRIC POWER CONSTRUCTION, 2022, 43(12): 37-46.

Figures/Tables 15

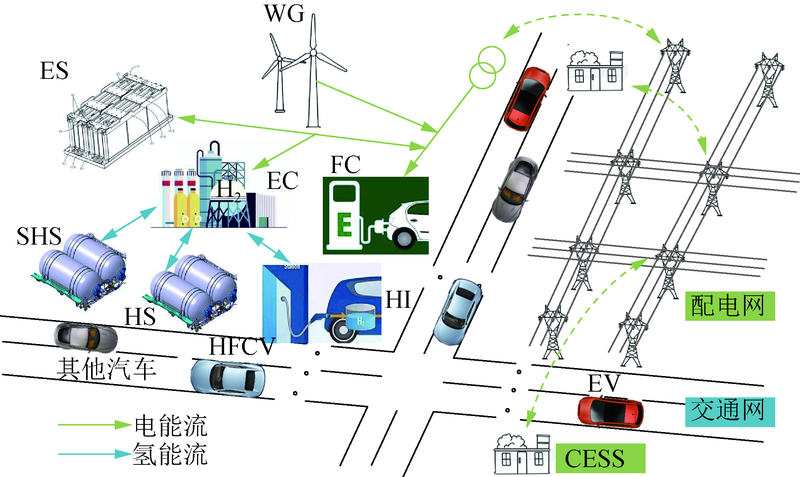

Fig.1 Architecture of a RVESS

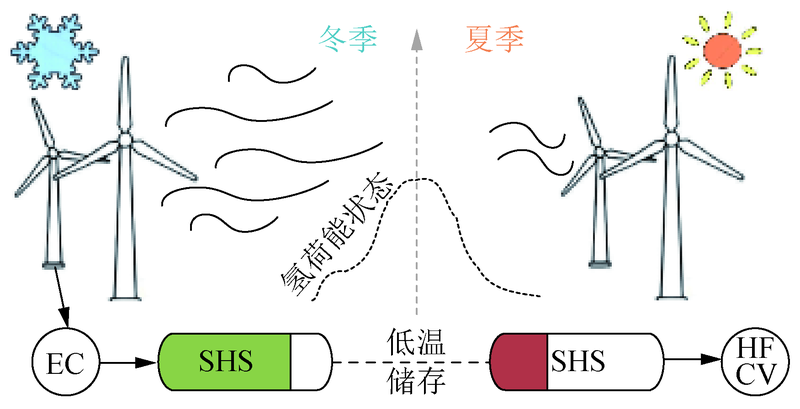

Fig.2 Schematic diagram of SHS operating mechanism for winter-summer transfer

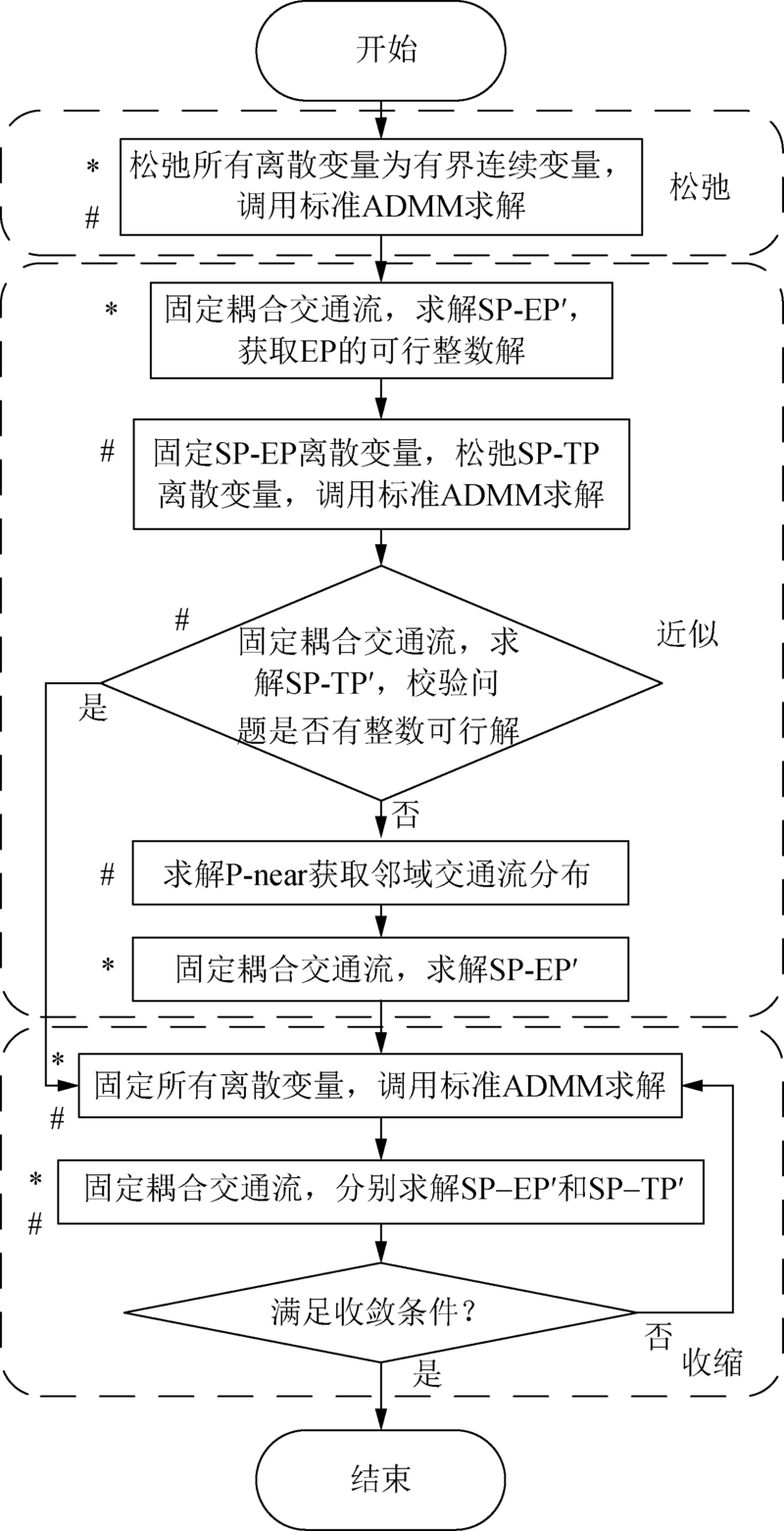

Fig.3 Flow chart of tailored ADMM algorithm

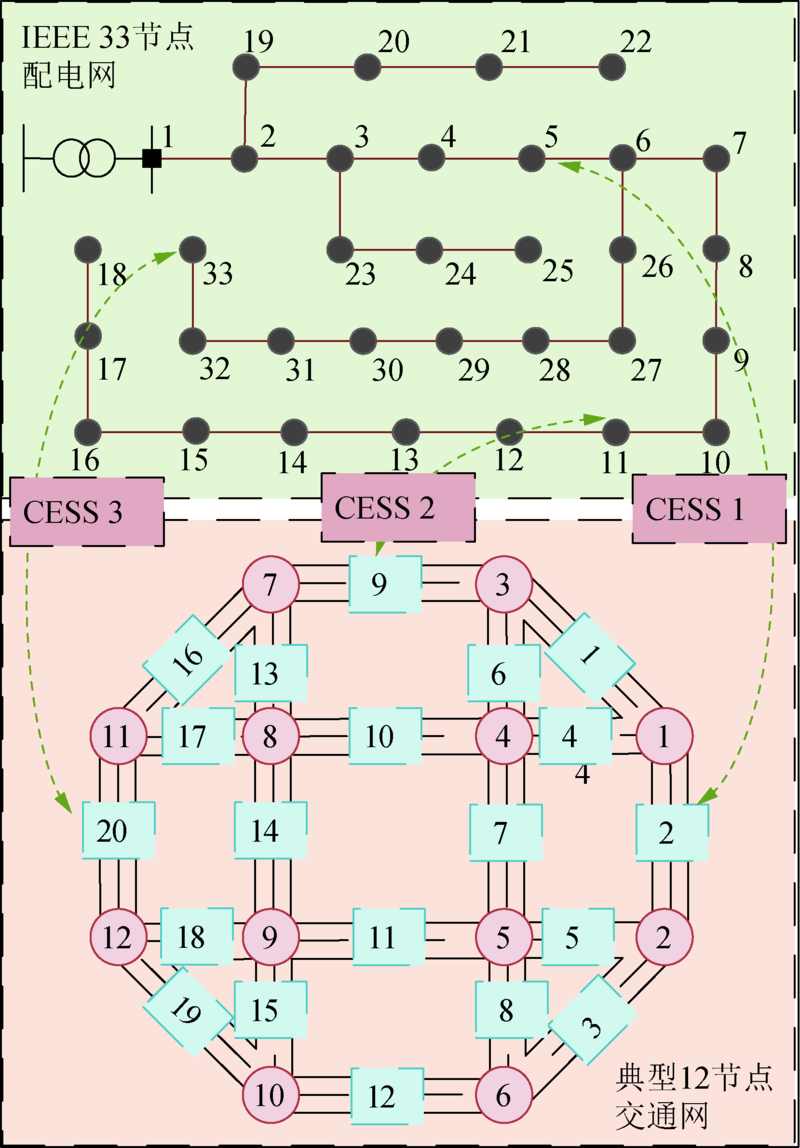

Fig.4 Test example of electricity-transportation joint system

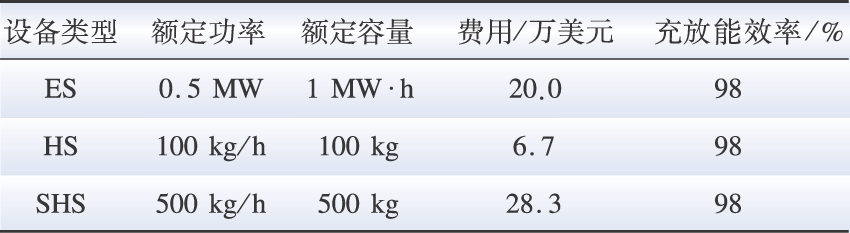

Table A1 Information of alternative energy storage equipment

Table A2 Information of other alternative equipment

Table A3 Parameters of planning model

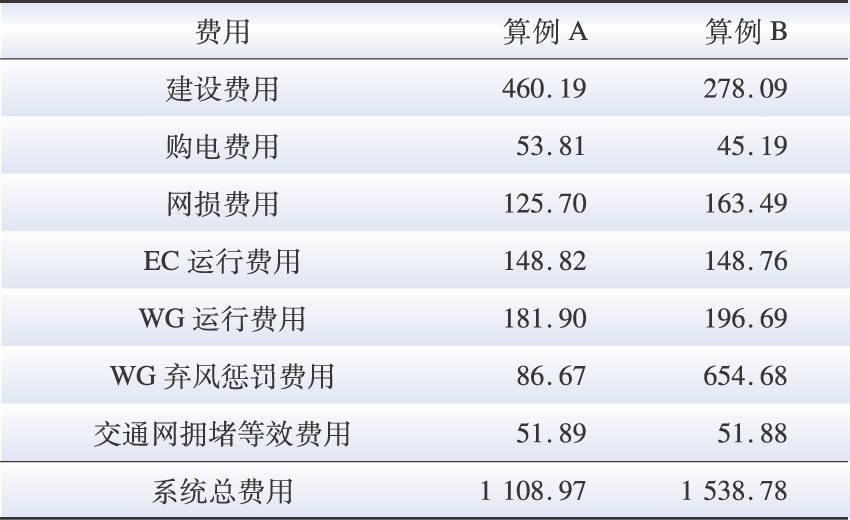

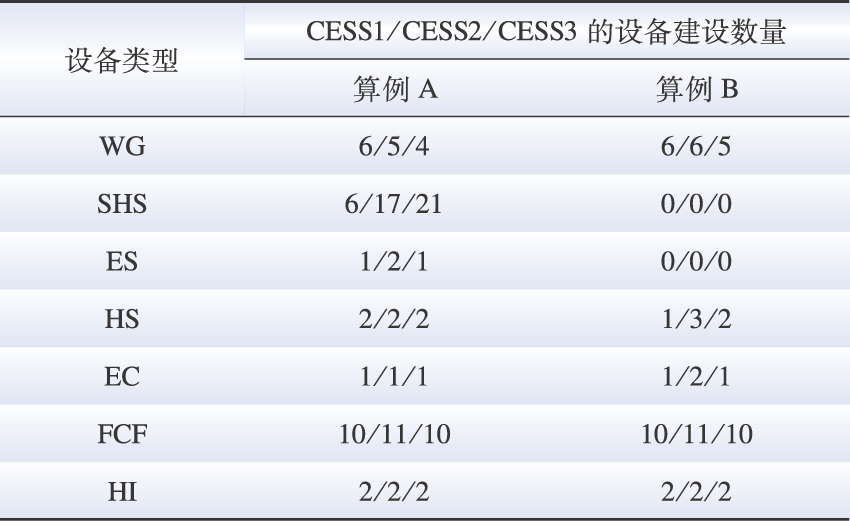

Table 1 Equipment construction in case A and B

Table 2

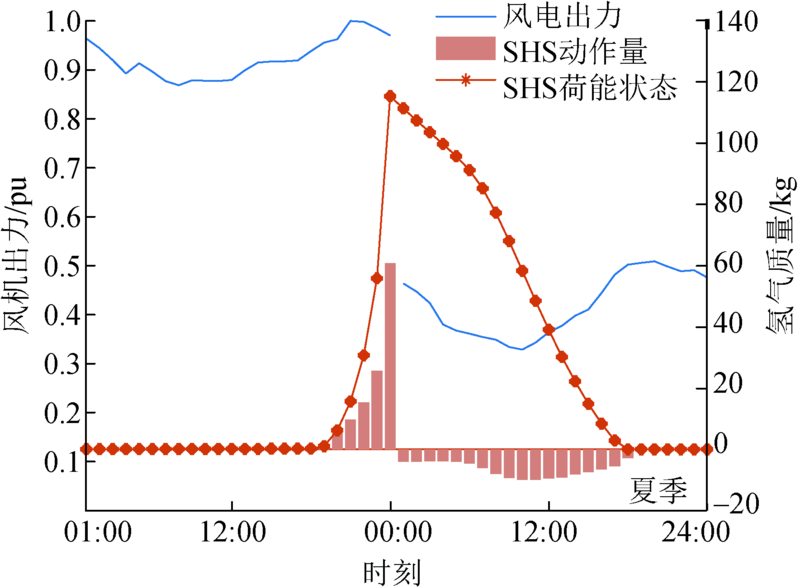

Fig.5 Chart of action quantity and state of energy of SHS

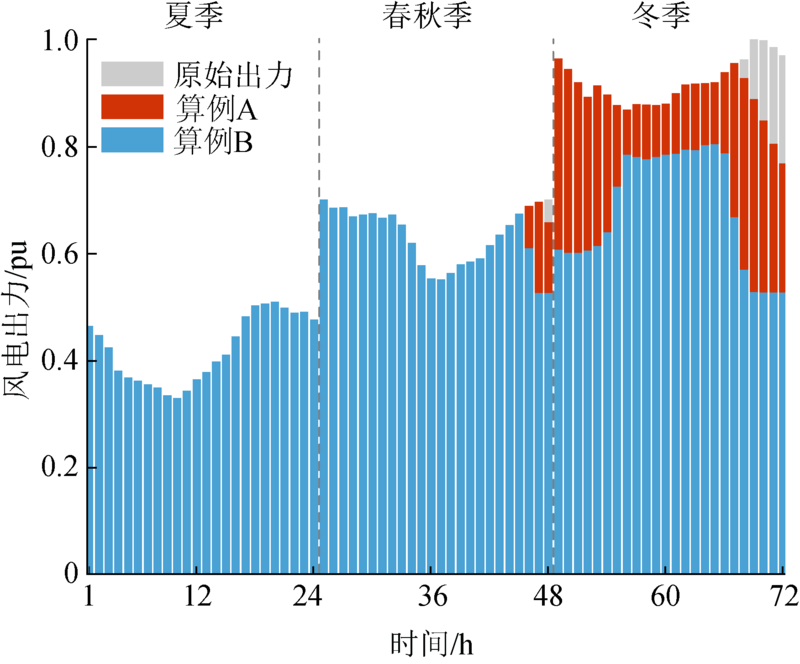

Fig.6 Chart of wind power curtailment in case A and B

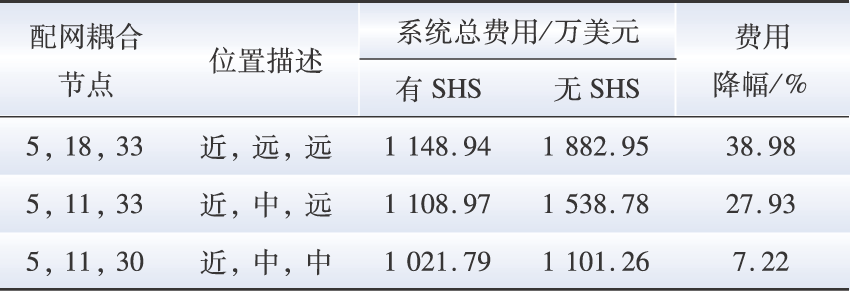

Table 3 System economic cost under multiple coupling points

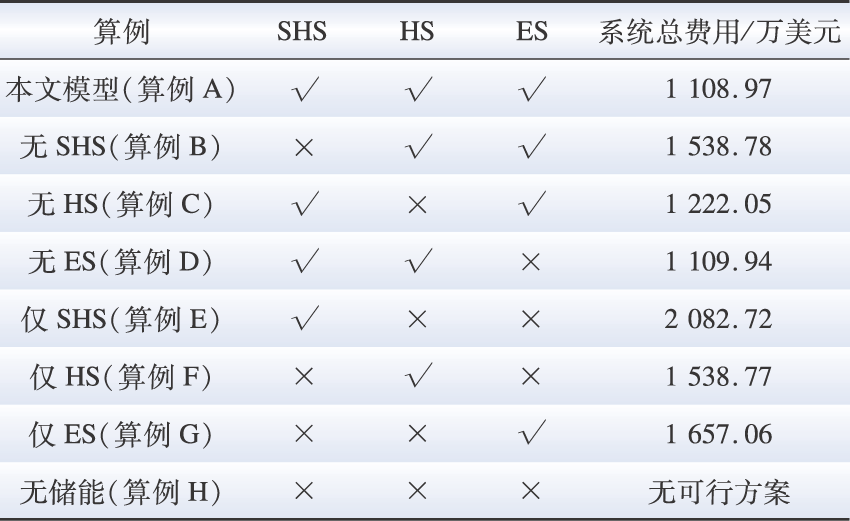

Table 4 Total economic costs of multiple storage combinations

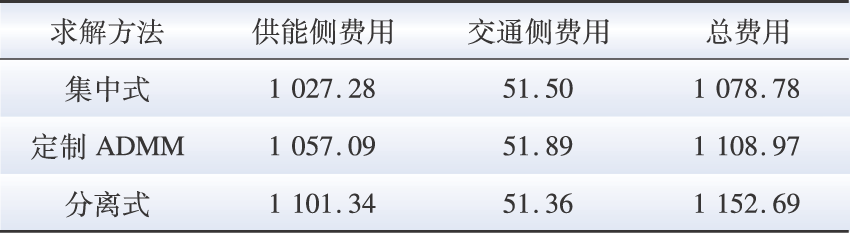

Table 5

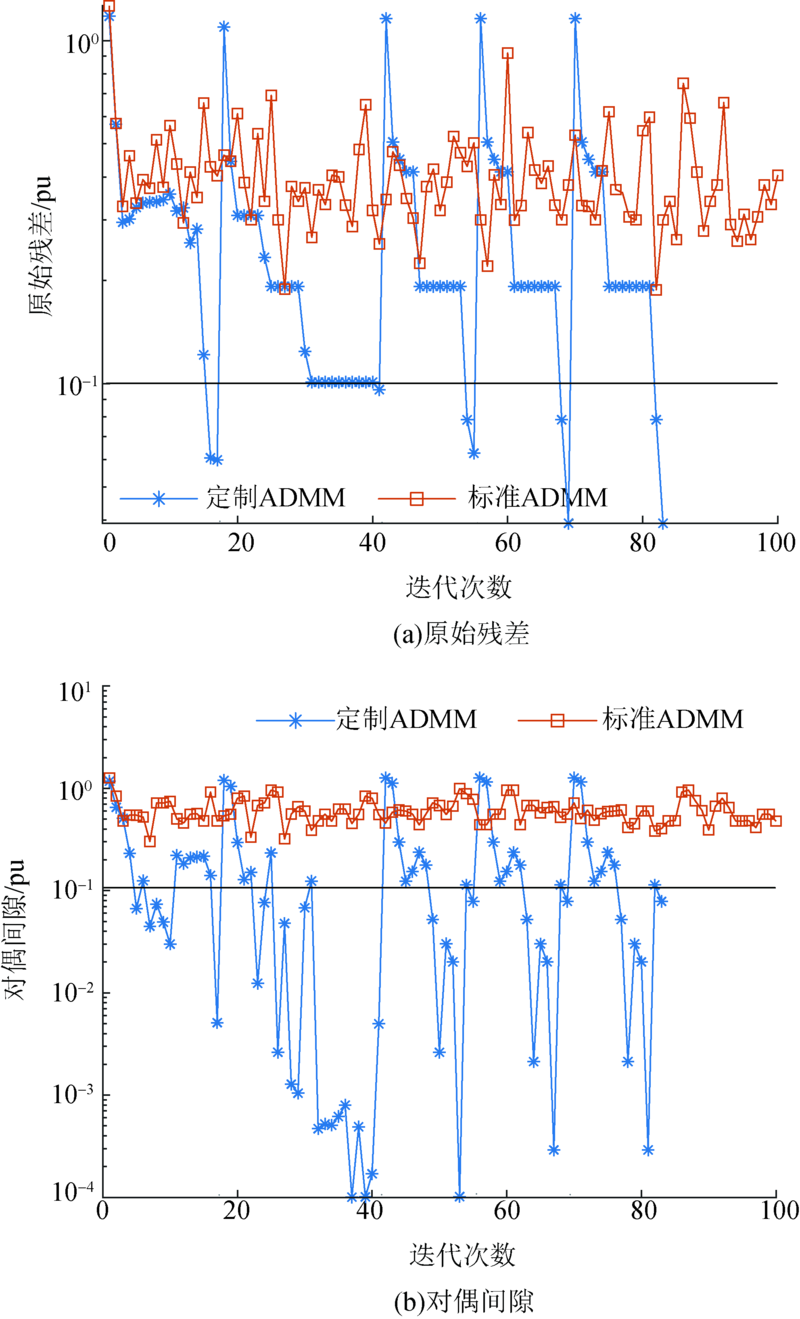

Fig.7 Convergence comparison of tailored ADMM and standard ADMM

References 17
