Rural Electricity-Heat Integrated Energy System Planning Based on Coupling Utilization of Biomass and Solar Resources
WANG Yongli, HAN Xu, LIU Chen, CAI Chengcong, ZHOU Minhan, MA Ziben
Electric Power Construction ›› 2023, Vol. 44 ›› Issue (3) : 1-14.
PDF(10363 KB)
PDF(10363 KB)
Rural Electricity-Heat Integrated Energy System Planning Based on Coupling Utilization of Biomass and Solar Resources

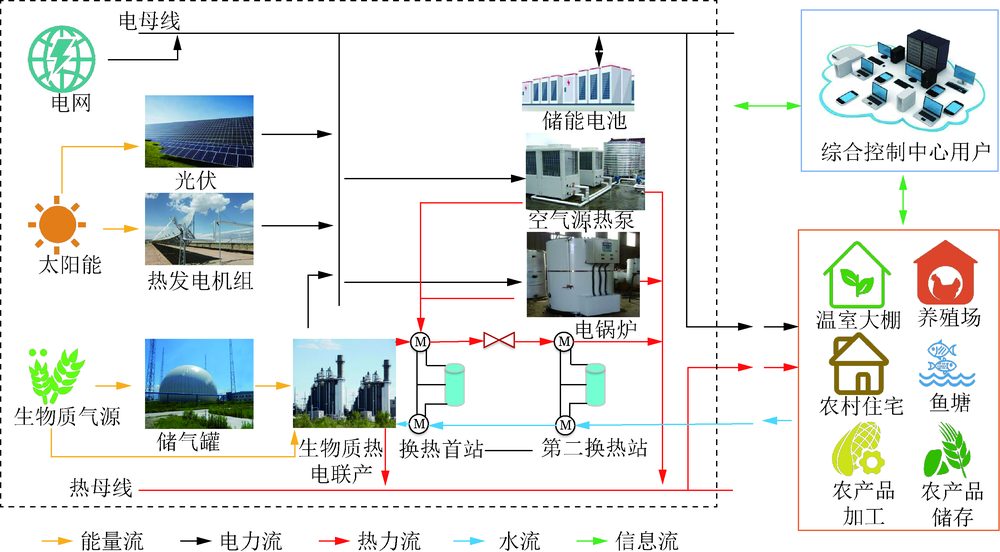

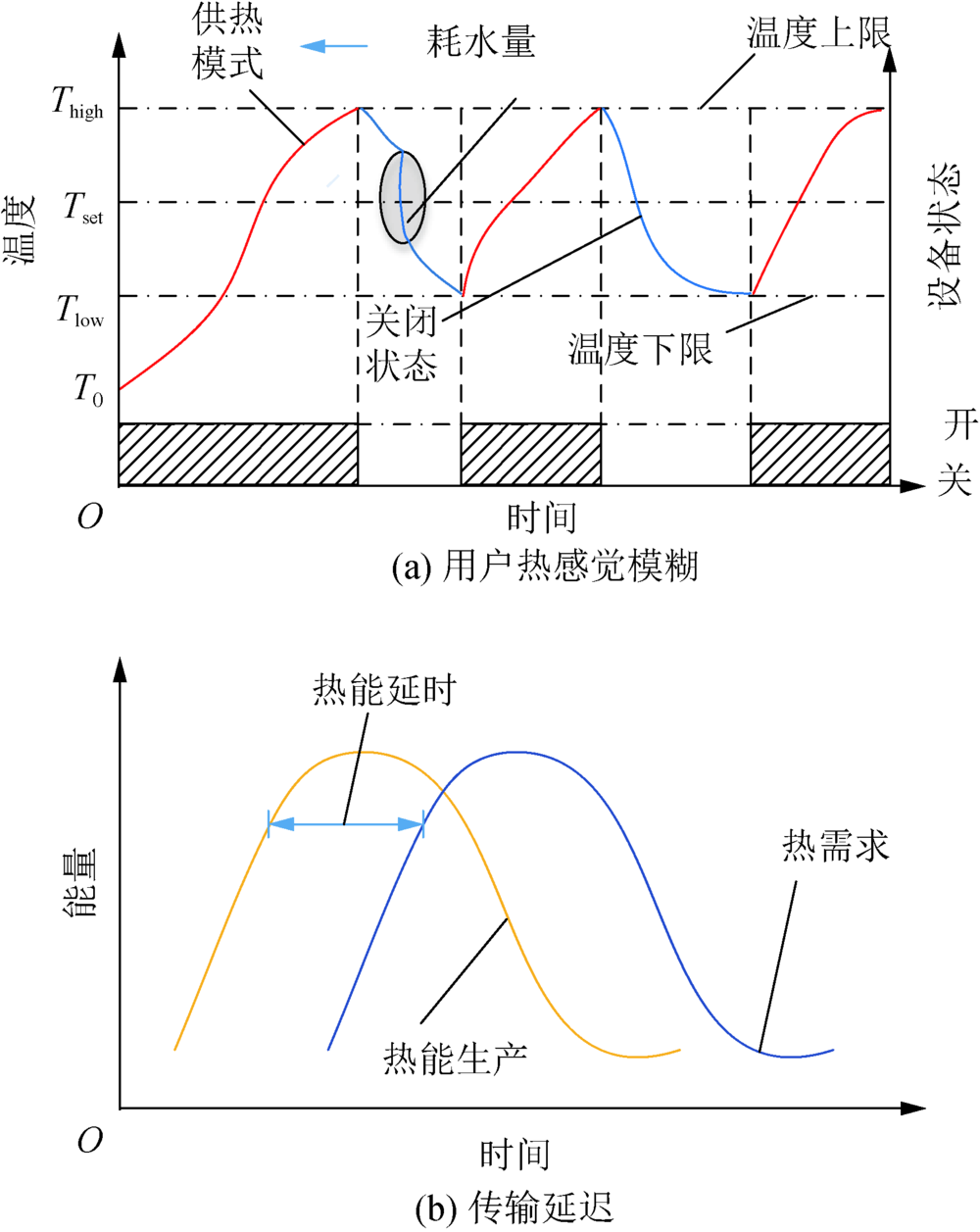

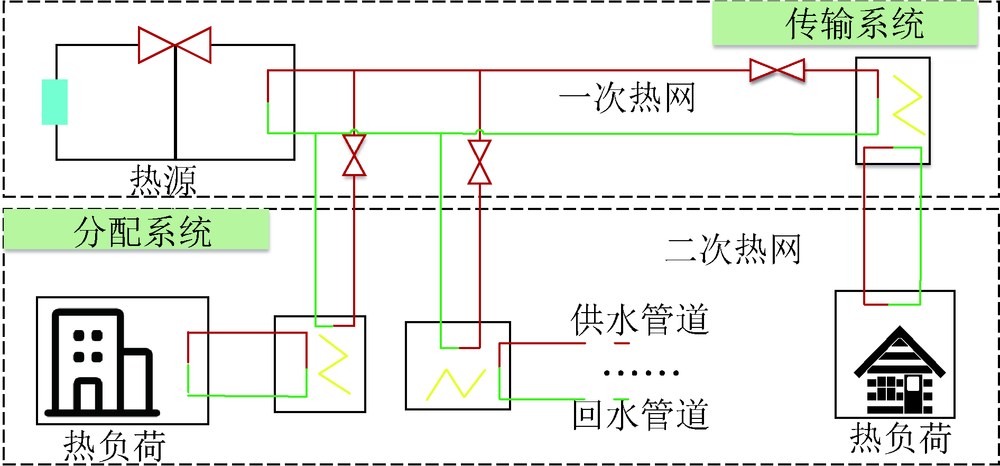

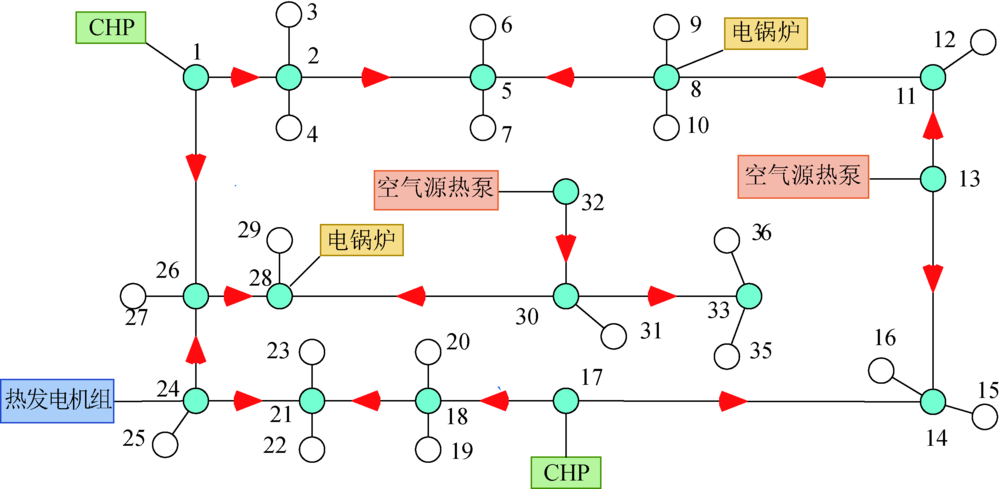

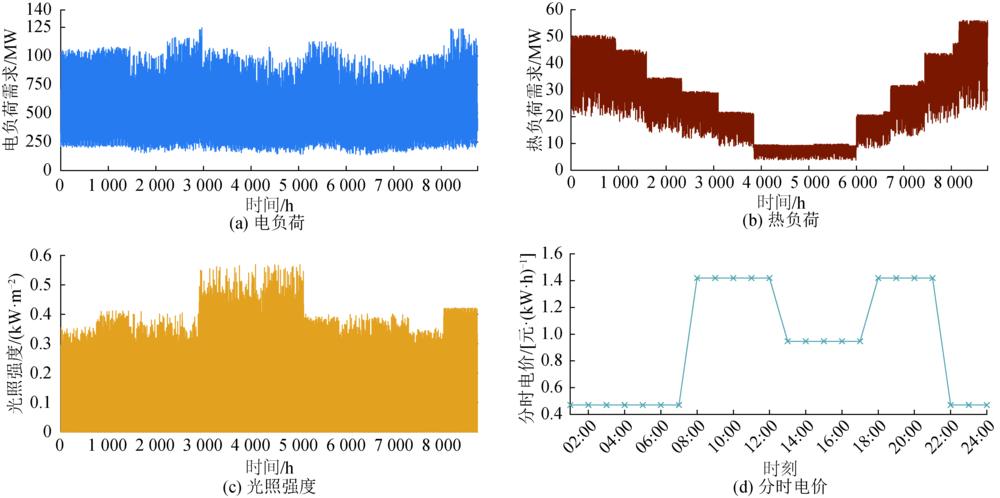

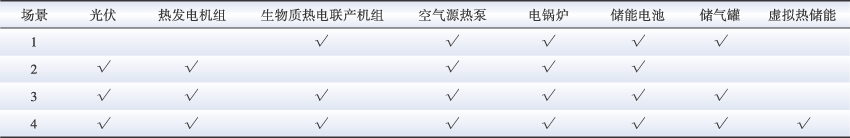

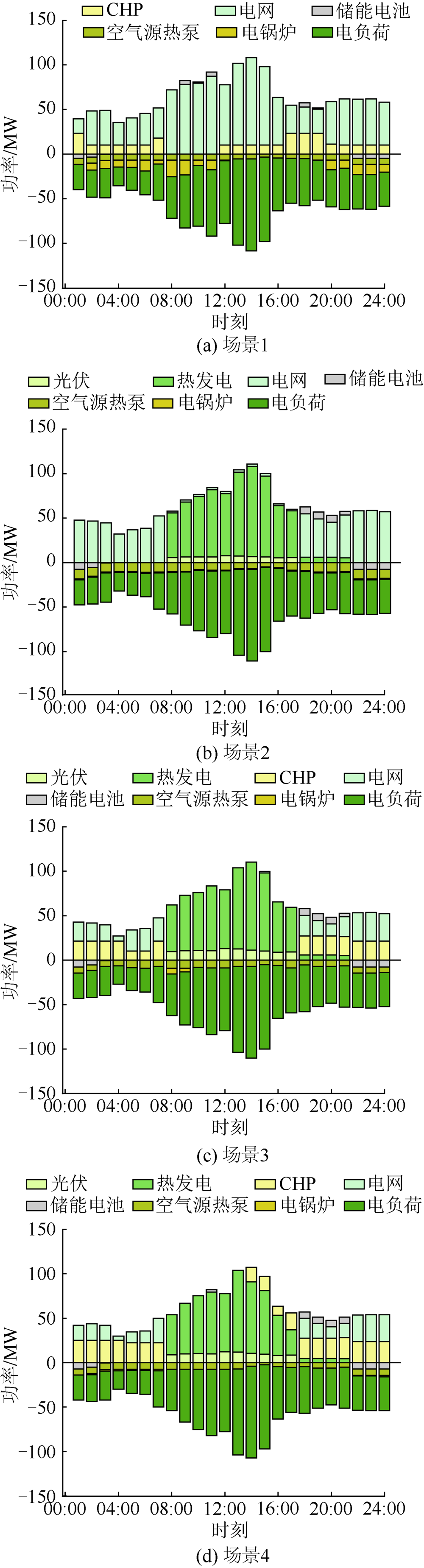

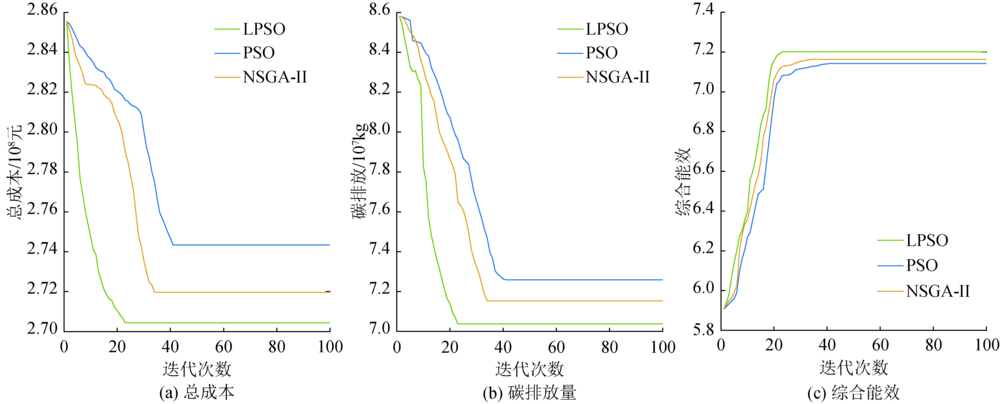

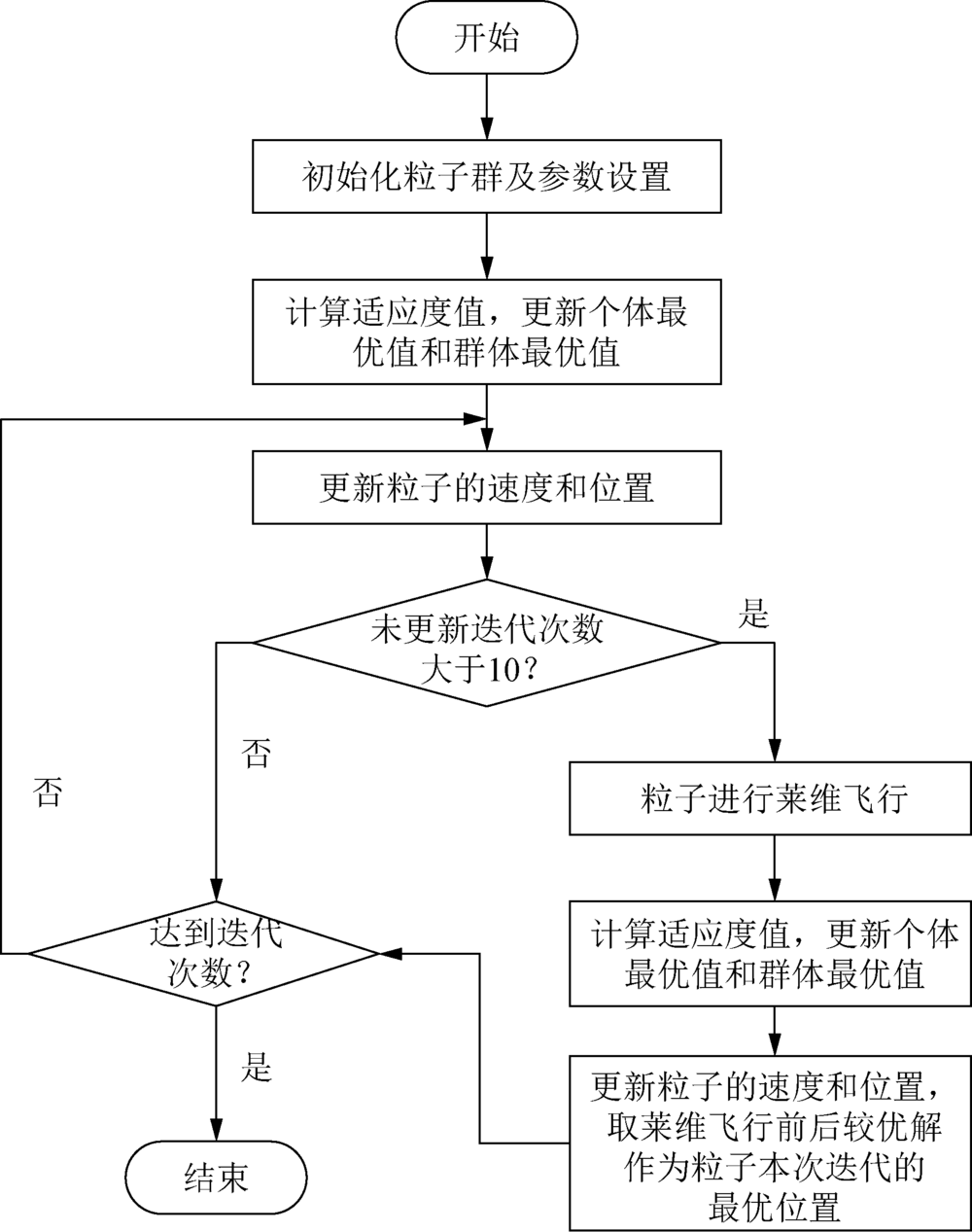

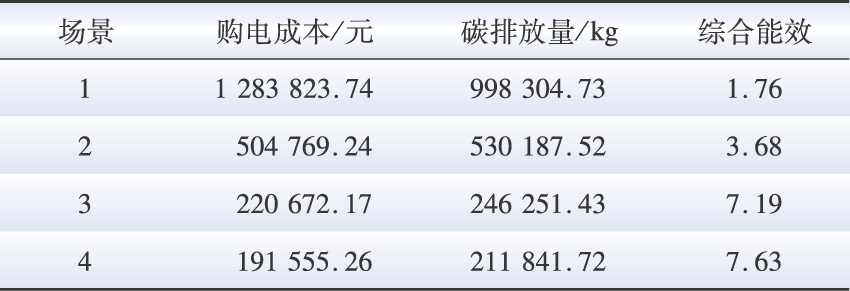

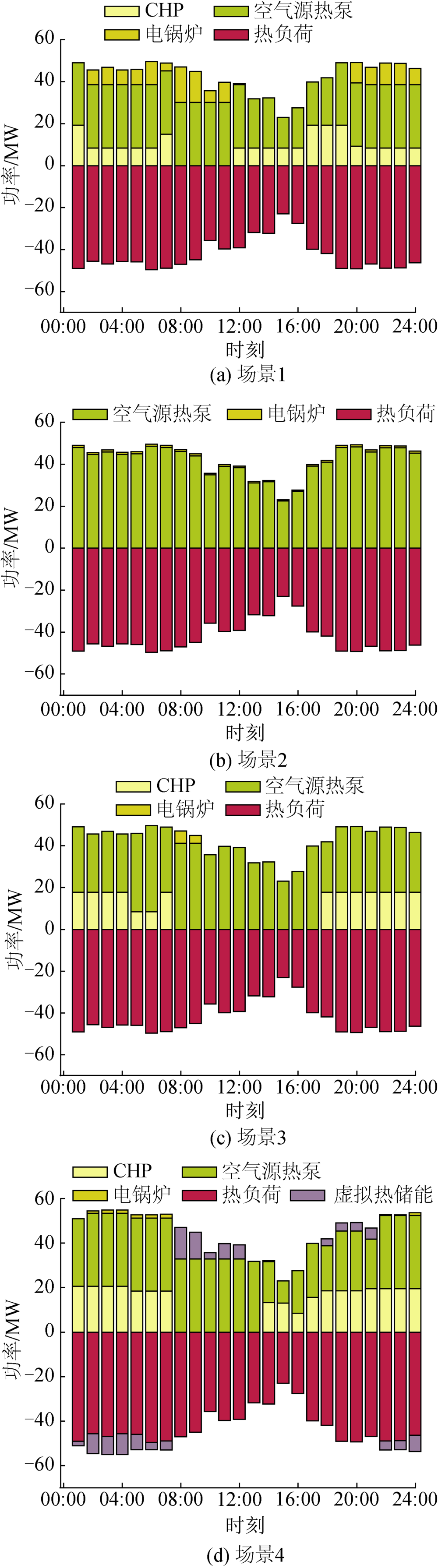

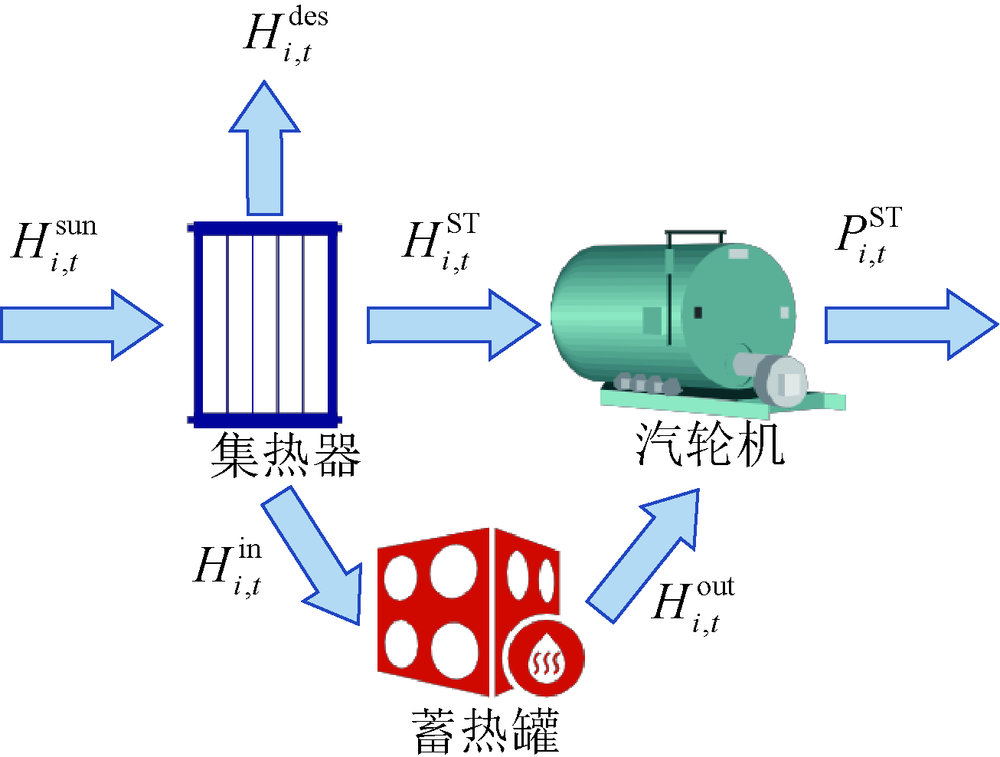

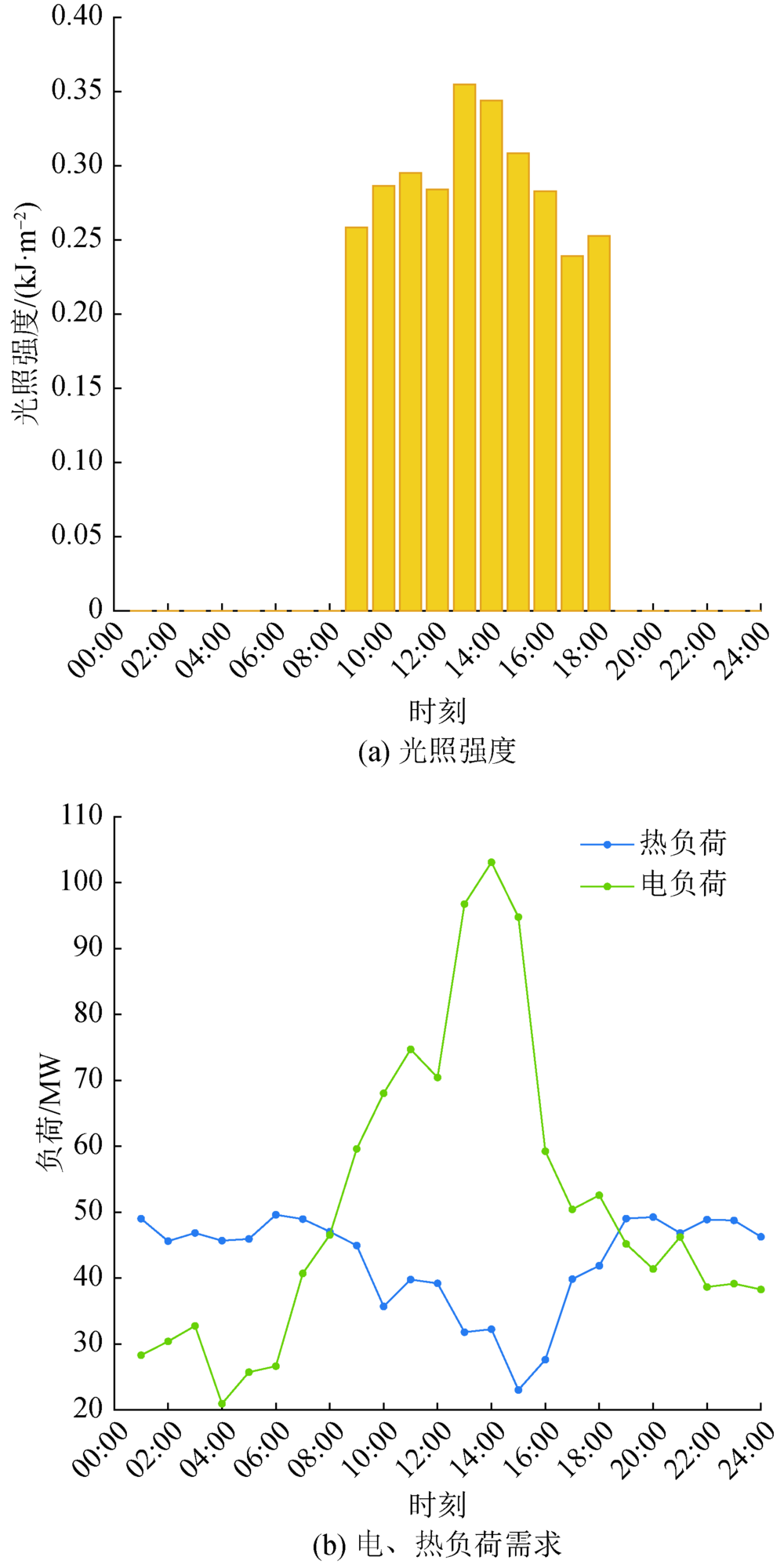

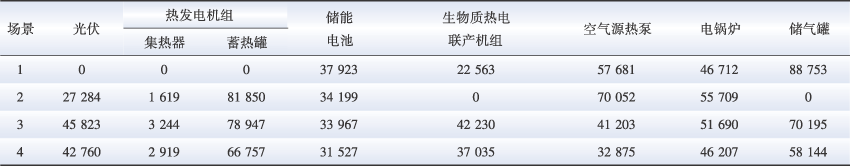

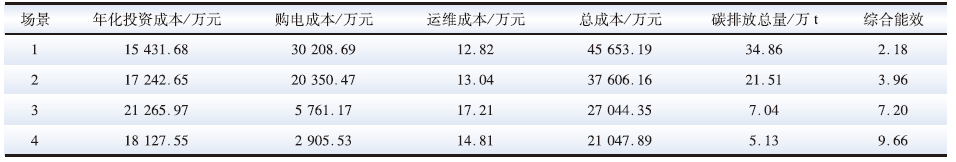

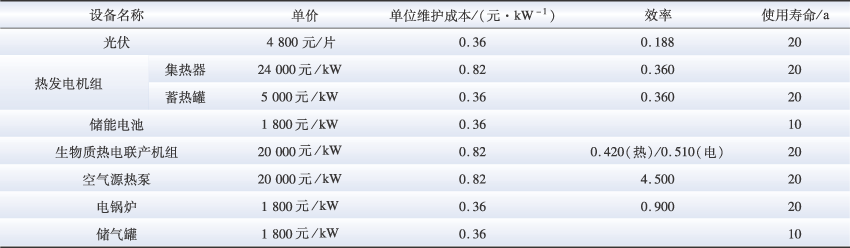

Renewable energy sources such as solar energy and biomass energy are abundant in rural areas of China, but the energy utilization rate is low and pollution is serious. Aiming at the rural scene where clean renewable energy sources such as biomass and solar energy are connected, a multi-objective planning method based on the coupling utilization of biomass and solar power for rural electricity-heat integrated energy system is proposed, considering the transmission characteristics of heat network and the adjustable agricultural production load. Firstly, a typical architecture of rural integrated energy system is constructed considering the coupling utilization of biomass and solar energy resources. At the same time, the virtual energy storage function of thermal network, adjustable load of agricultural production and key equipment of the system are modeled and analyzed, and relevant operation strategies are proposed. Secondly, a planning and optimization model for rural integrated energy system is constructed, which takes into account economy, environmental protection and energy efficiency. Considering constraints such as investment capacity, equipment operation and energy balance, the Levy flight-based particle swarm optimization algorithm (LPSO) is used to solve the planning optimization scheme. Finally, the simulation is carried out in a village and town of a county in northern China, and the results show that the proposed method is reasonable and effective.
rural electricity-heat integrated energy system / biomass-solar coupling / virtual thermal energy storage / multi-objective
