Distribution System External Fault Causes Identification based on Multi-Source Information Fusion

doi:10.12204/j.issn.1000-7229.2023.03.008

Abstract

Abstract:

Accurate identification of distribution network fault causes is of great significance to shorten the time of fault search and improve the speed of power supply recovery and power supply reliability. According to the attribution of responsibility, the causes of distribution network fault can be divided into internal causes and external causes. Internal causes refer to electrical related causes such as equipment insulation weakening and overvoltage, while external faults usually refer to weather, animal or human activities. Faults caused by external causes are the result of a combination of many factors. In this paper, a fault external cause identification method is proposed, which integrates the non-electrical information such as line parameters, weather and time, and the electrical information such as fault current and phase number. Firstly, the characteristics and related influencing factors of five typical external fault causes are analyzed to build the basis of identification model. Then unsupervised learning training is used to obtain the optimal parameters of each layer of deep belief network, and supervised learning is used to fine-tune the global parameters, and the classification model of external causes of distribution network faults based on deep belief network is obtained. Finally, the accuracy of the algorithm is verified by using the actual fault data of a certain area in western China. The result shows that the recognition accuracy can reach 94.82%, which proves the correctness of the method.

Key words: distribution system fault, external fault causes, fault cause identification, deep learning, multi-source information fusion

CLC Number:

TM773

TAN Yuan, ZHANG Wenhai, WANG Yang. Distribution System External Fault Causes Identification based on Multi-Source Information Fusion[J]. ELECTRIC POWER CONSTRUCTION, 2023, 44(3): 77-84.

Figures/Tables 14

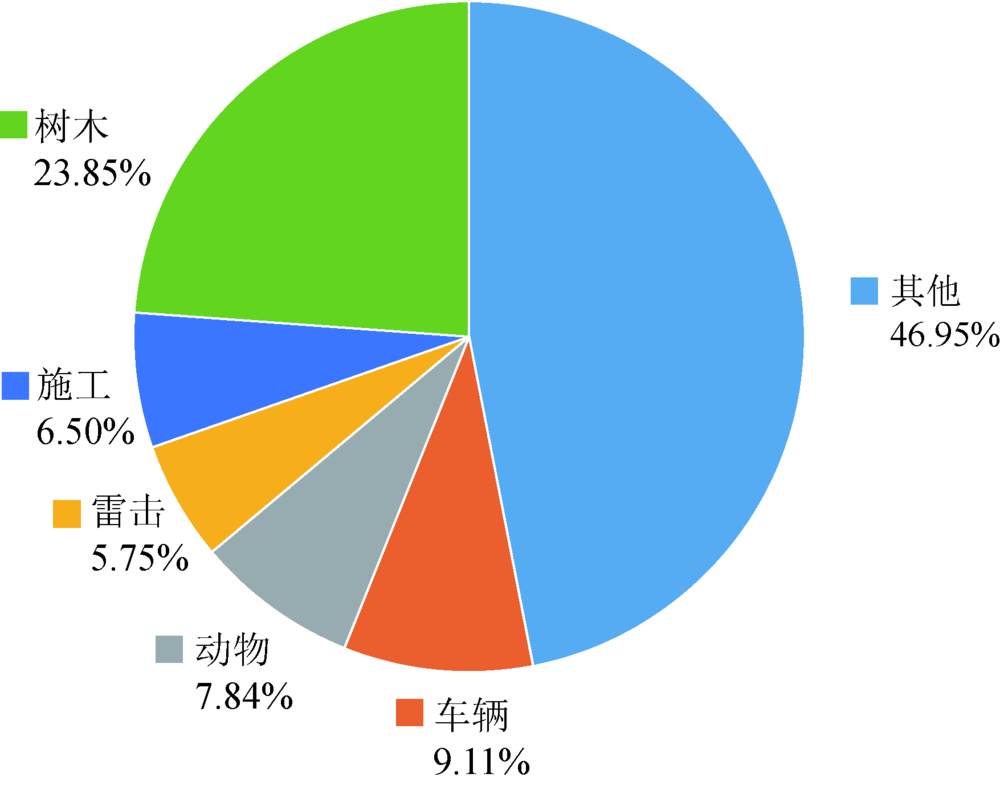

Fig.1 Proportion of different fault causes in a district from 2015 to 2021

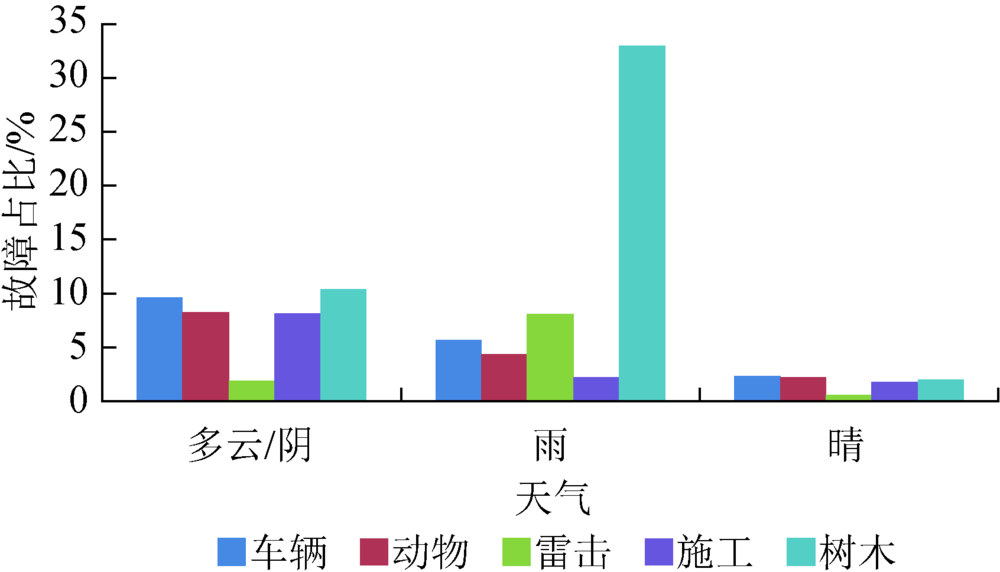

Fig.2 Correlation analysis of external fault causes with weather

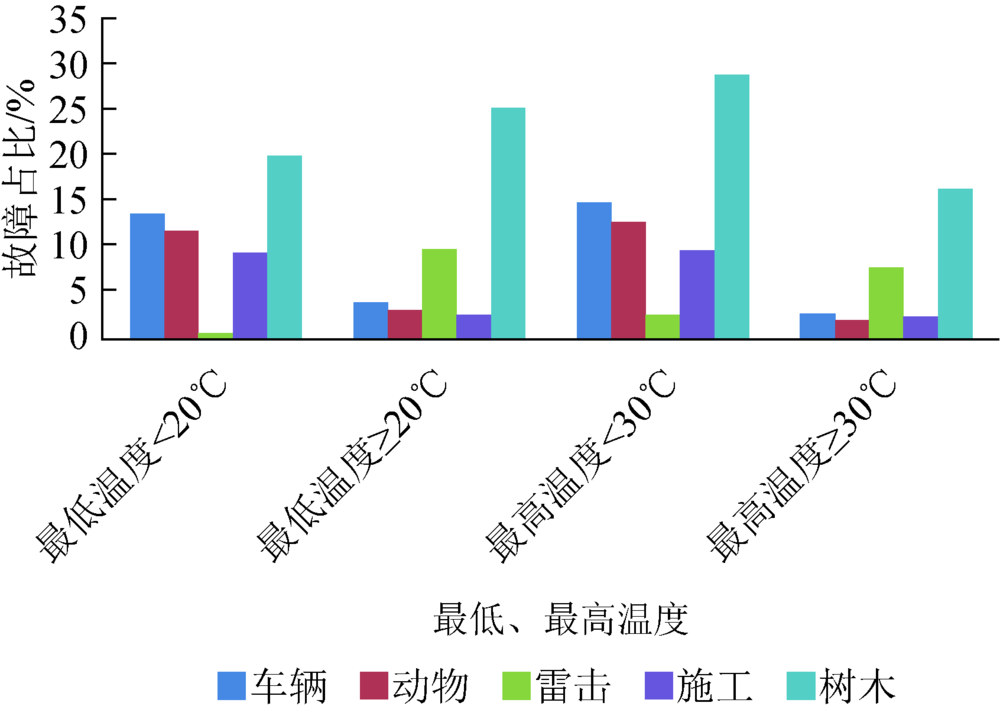

Fig.3 Correlation analysis of external fault causes with minimum and maximum temperature

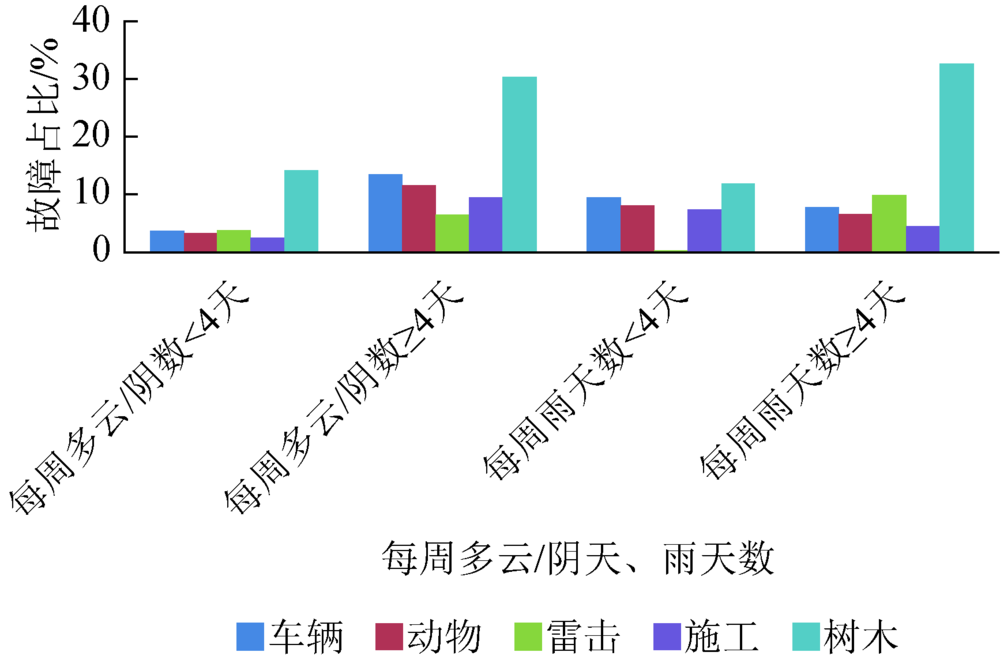

Fig.4 Correlation analysis of external fault causes with number of cloudy and rainy days per week

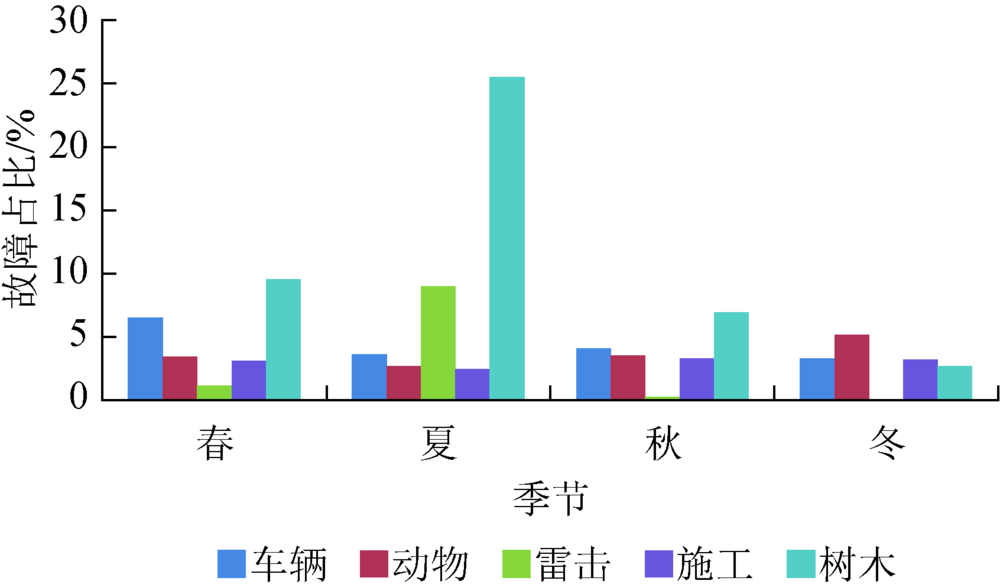

Fig.5 Correlation analysis of external faults causes with season

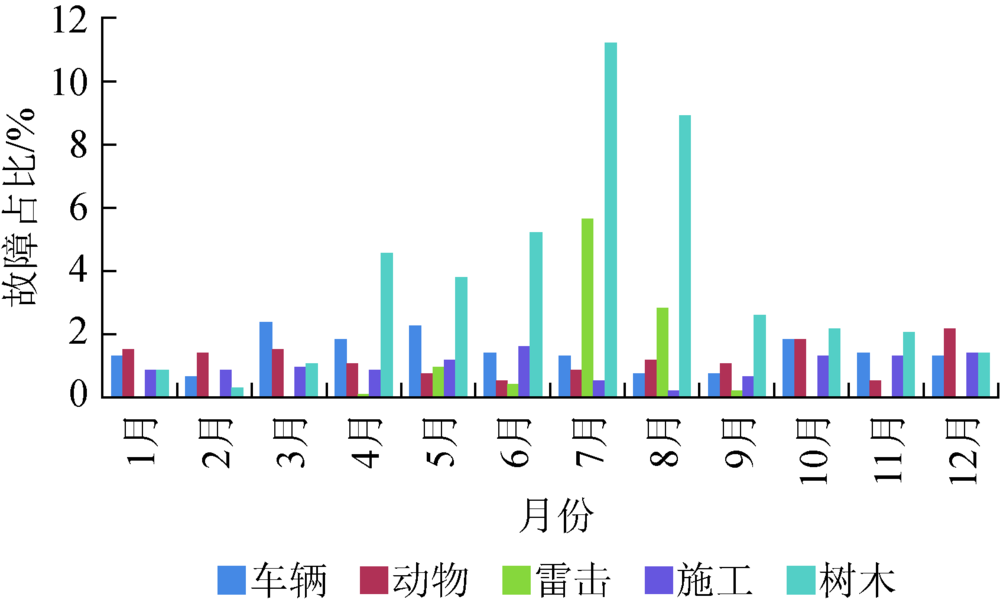

Fig.6 Correlation analysis of external faults causes with month

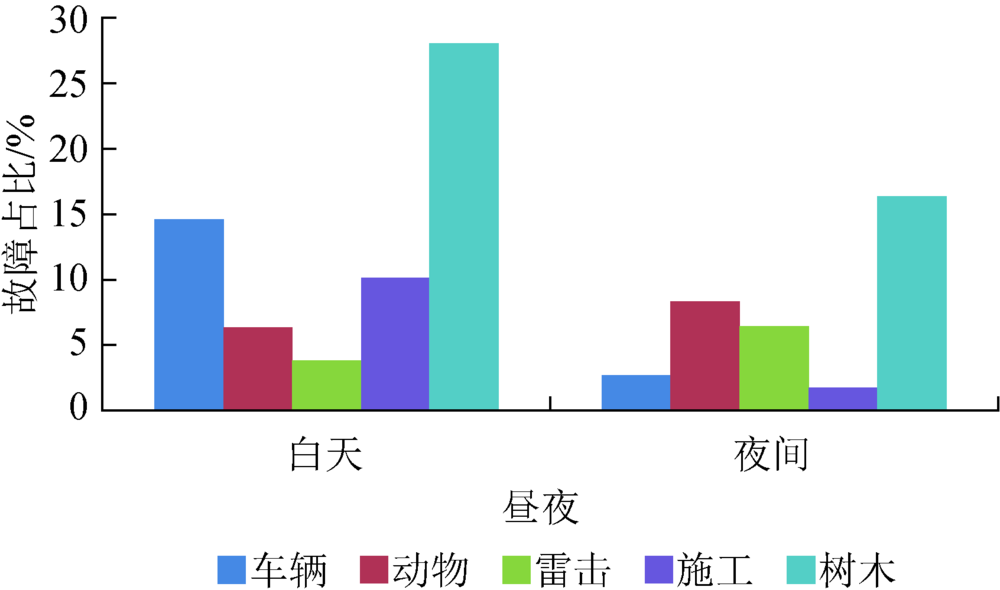

Fig.7 Correlation analysis of external faults causes with time of day

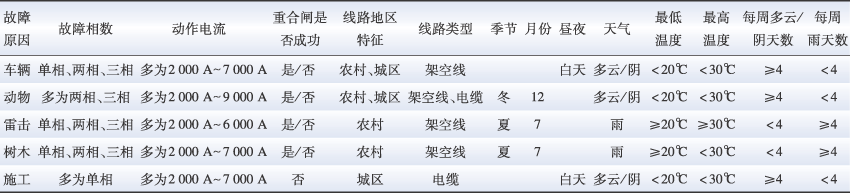

Table 1 Relationship between fault causes and feature information

Fig.8 Structure of DBN

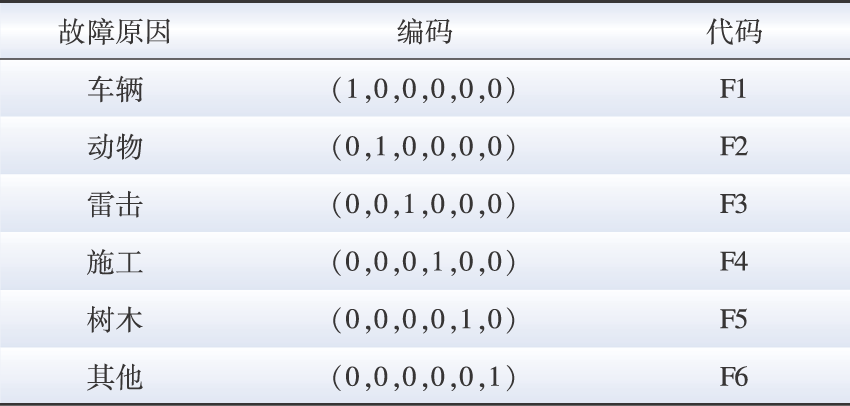

Table 2 Coding table of failure causes

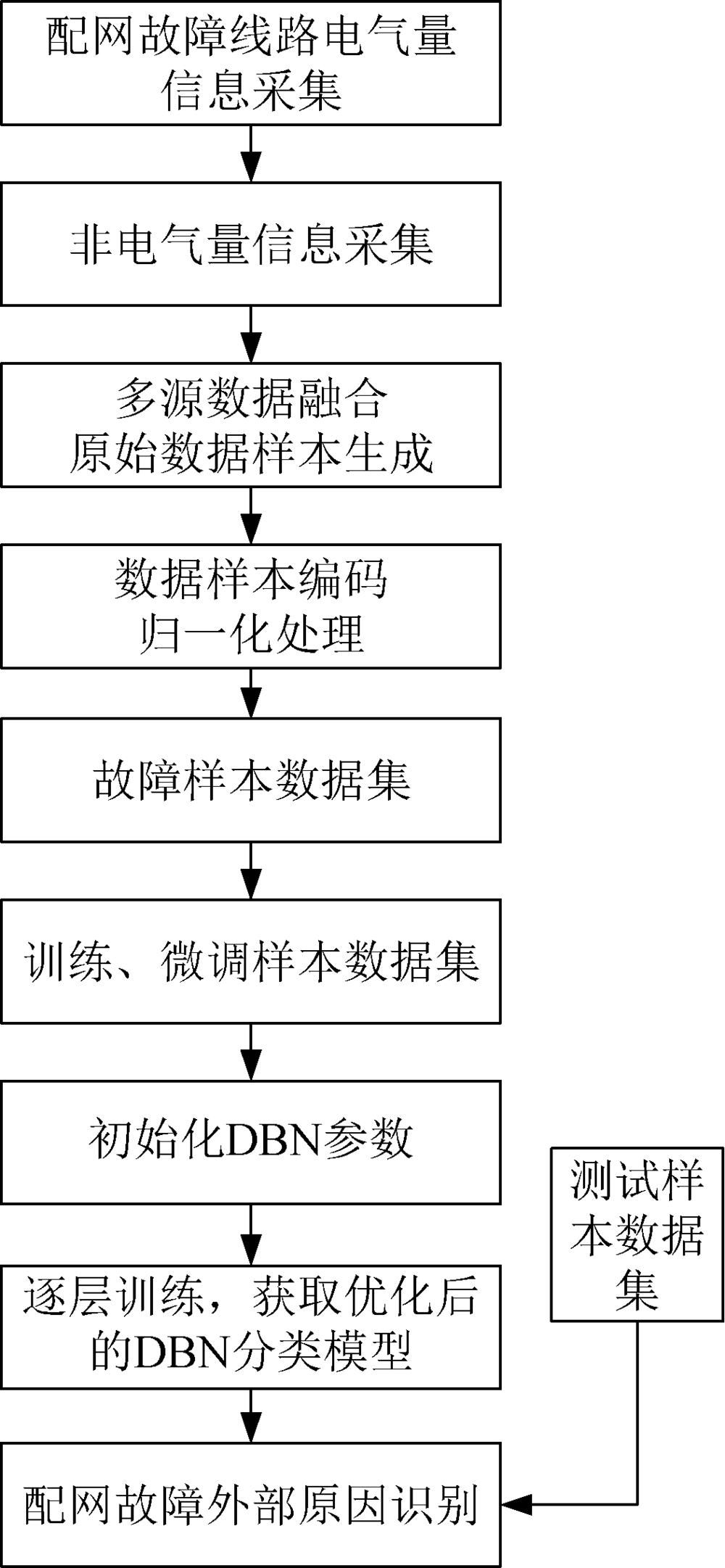

Fig.9 Process of fault cause identification

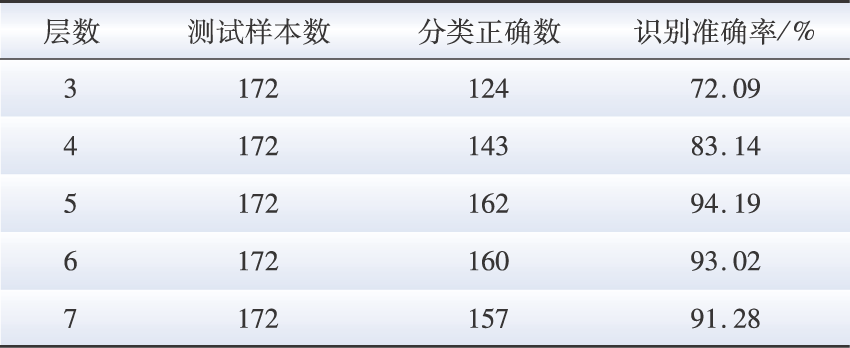

Table 3 Influence of the number of network layers on recognition accuracy

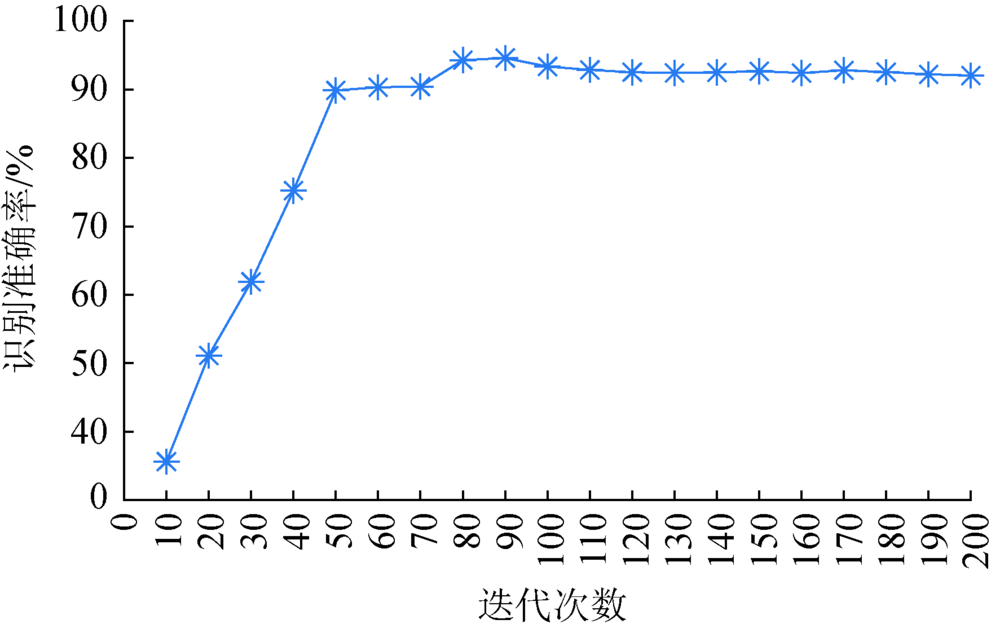

Fig.10 The effect of iteration number on recognition accuracy

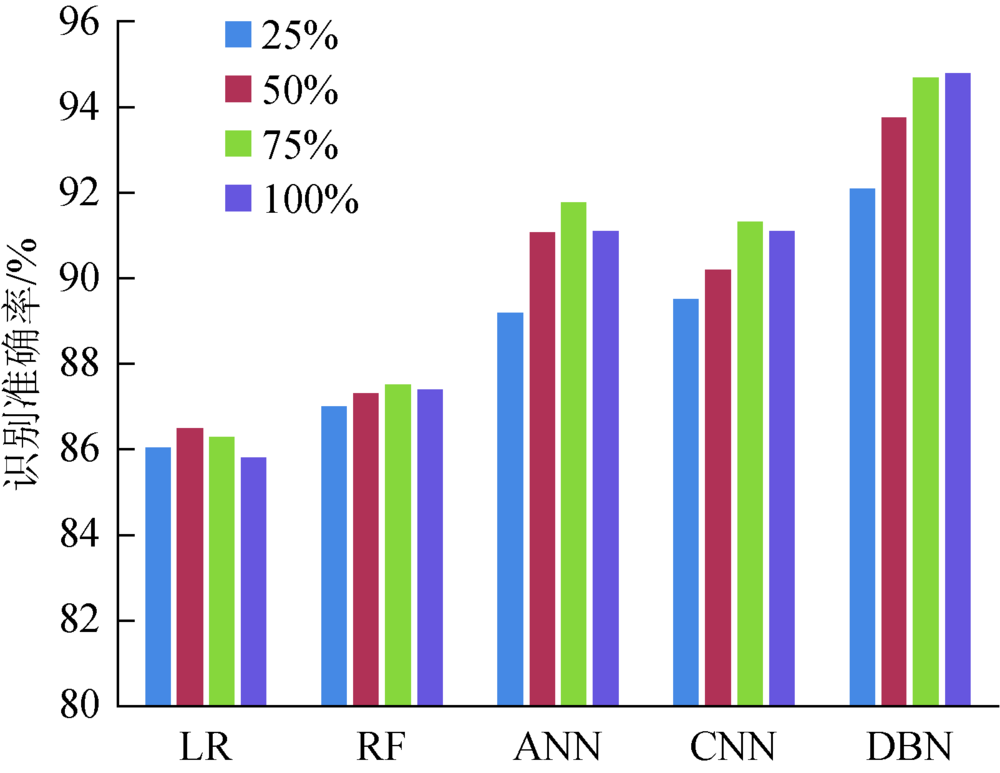

Fig.11 The effect of different algorithms on the recognition accuracy
