Multi-scenario Demand Response Strategy Based on DEMATEL-AISM for Electric Vehicles

doi:10.12204/j.issn.1000-7229.2023.03.010

Abstract

Abstract:

With the continuous increase of renewable energy penetration, the volatility and randomness of the power grid are increasing, and demand-side resource supply will become more and more important. Electric vehicles (EVs) account for a relatively large share of demand-side resources, but existing studies have rarely considered the multi-factor interaction of individual and social factors in the process of EV participating in demand response. Therefore, an EV multi-scenario demand-response charging scheduling strategy based on the decision-making trial and evaluation laboratory-adversarial interpretive structure modeling method (DEMATEL-AISM) is constructed in this paper. Firstly, a data mining method is used to analyze the operating characteristics of charging stations and EV charging characteristics in multiple scenarios, and an EV charging load characteristic model is constructed. Secondly, the DEMATEL-AISM algorithm is used to analyze the multi-factor coupling relationship affecting EV charging behavior in multiple scenarios, and the dominant factors are explored. Finally, according to the analysis of the dominant factors in multiple scenarios, a user regulation strategy is formulated under the influence of multiple factors. Through simulation, it is verified that the method proposed in this paper can effectively smooth out the peak and valley levels of load, node voltage fluctuations is reduced, the stability and economy of the demand side of the power system is improved.

Key words: electric vehicles, demand response, decision-making trial and evaluation laboratory-adversarial interpretive structure modeling method (DEMATEL-AISM), multi-factor impact degree assessment

CLC Number:

TM73

YAO Yin, ZHU Yedong, LI Dongdong, ZHOU Bo, LIN Shunfu. Multi-scenario Demand Response Strategy Based on DEMATEL-AISM for Electric Vehicles[J]. ELECTRIC POWER CONSTRUCTION, 2023, 44(3): 93-104.

Figures/Tables 17

Fig.1 Calculation flow chart of DEMATEL-AISM

Fig.2 Load curves of EV charging station for different functional areas and dates

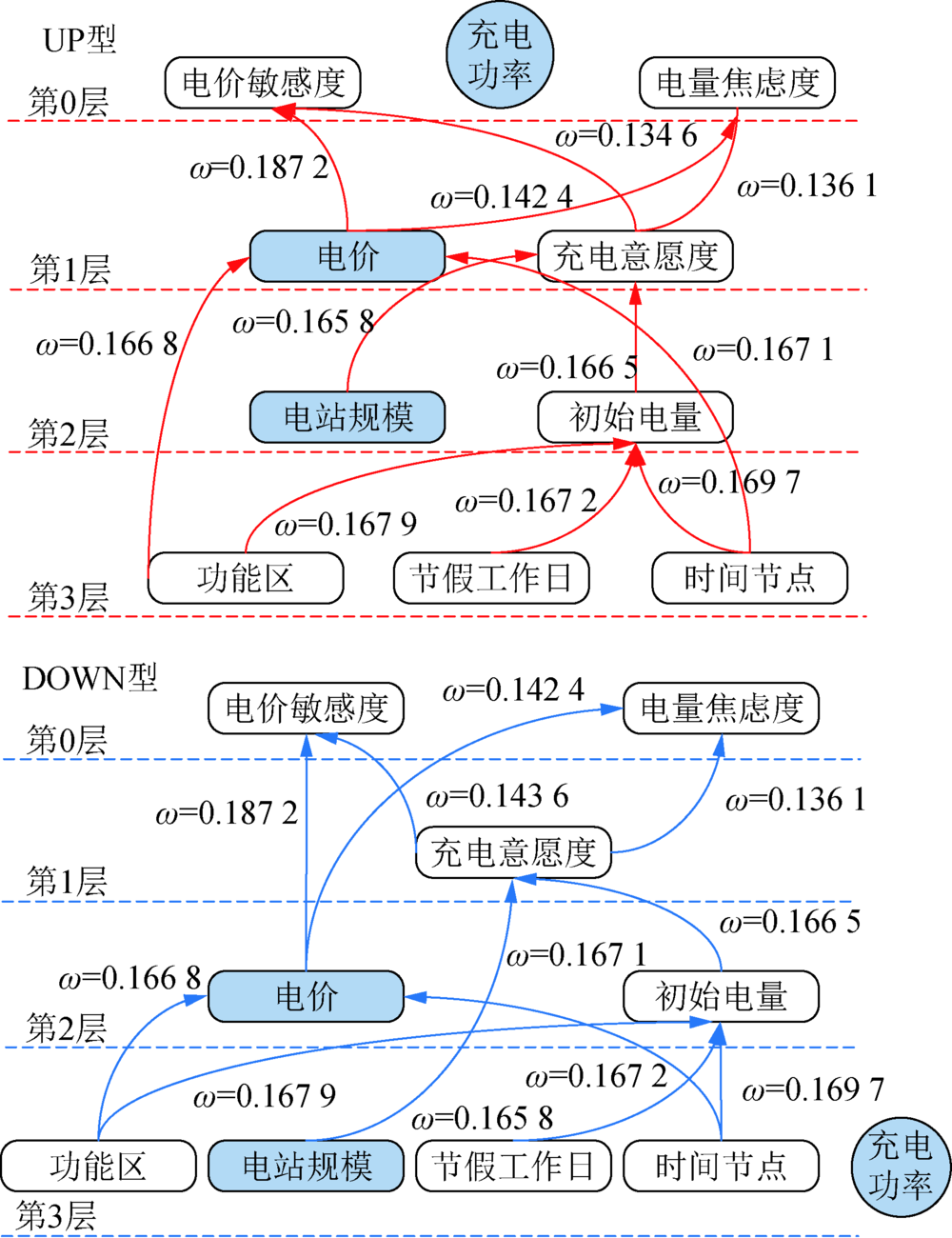

Fig.3 Hierarchy diagram of UP and DOWN topology

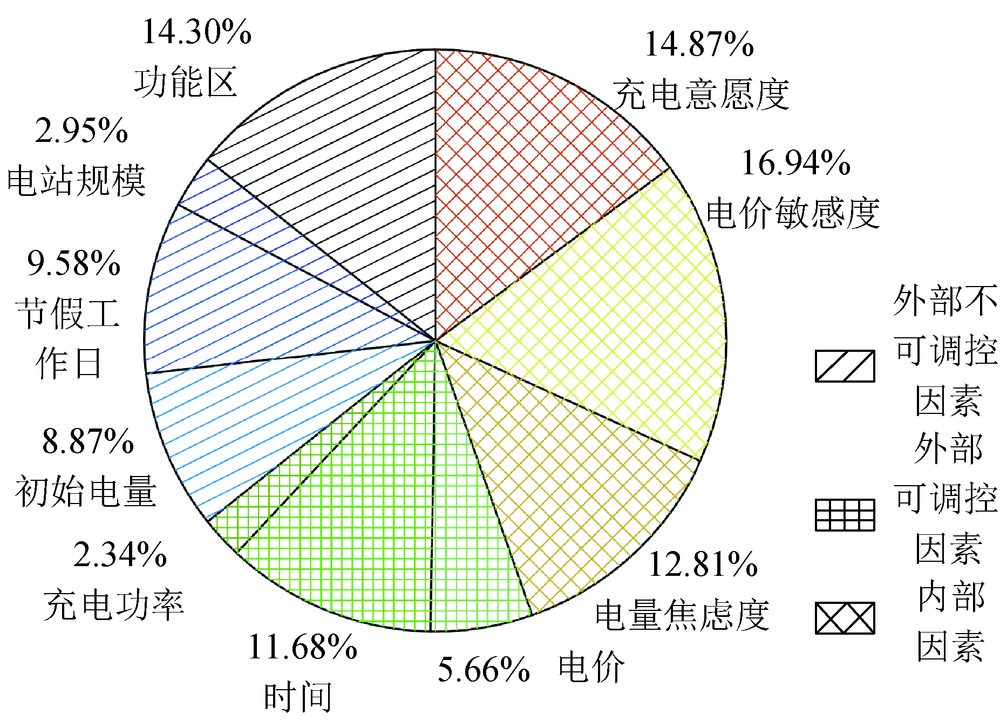

Fig.4 The weights of factors in the integrated system affecting users' charging behavior

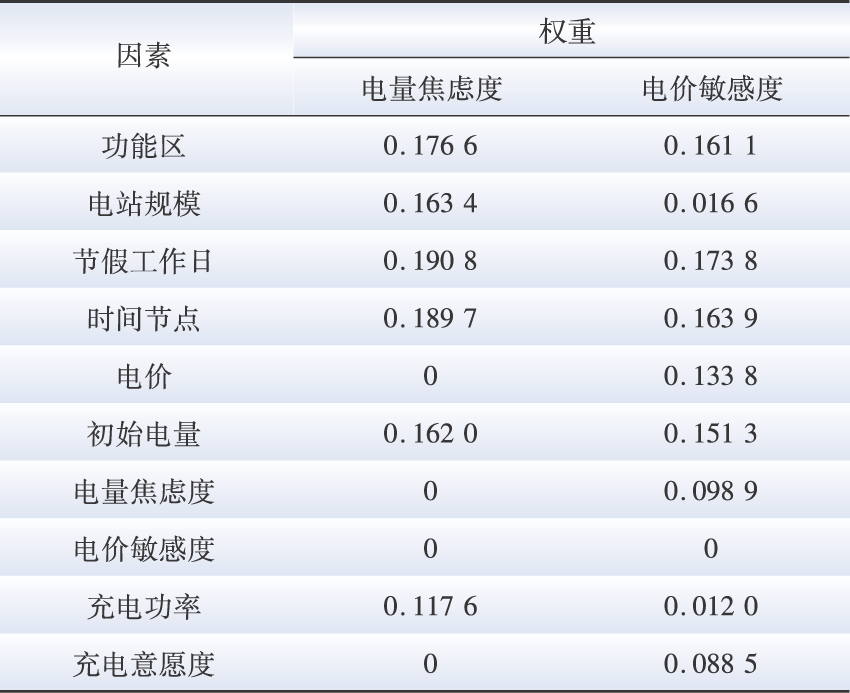

Table 1 Distribution of coupling weights among important factors

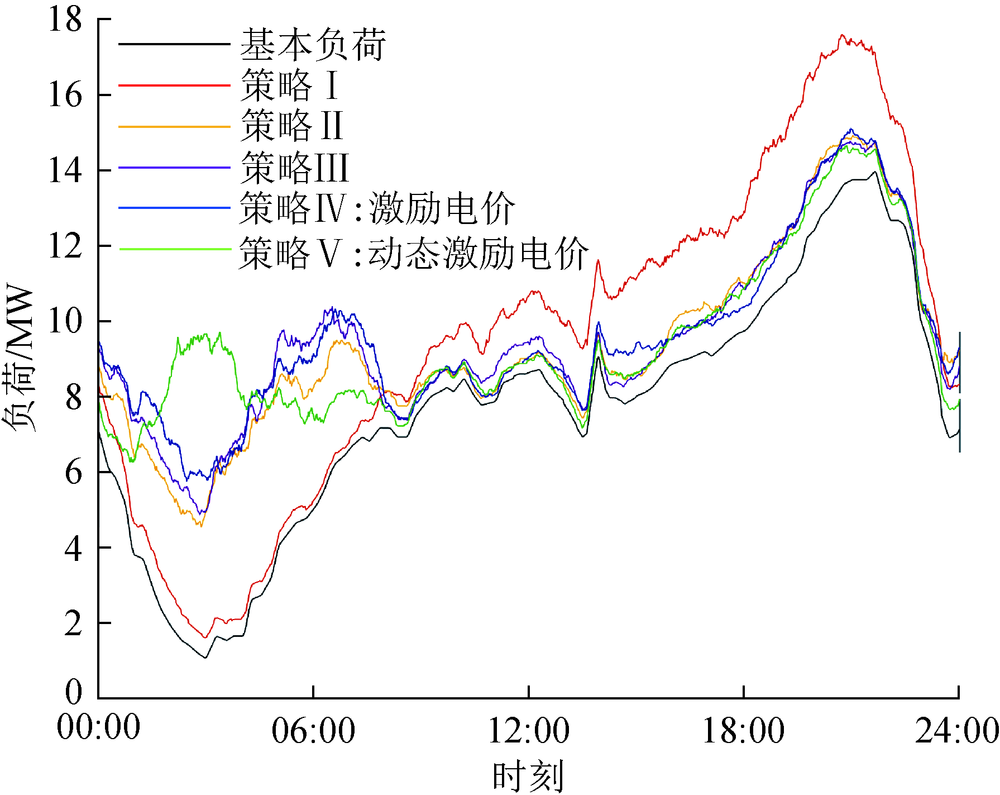

Fig.5 Grid load curve under different DR strategies

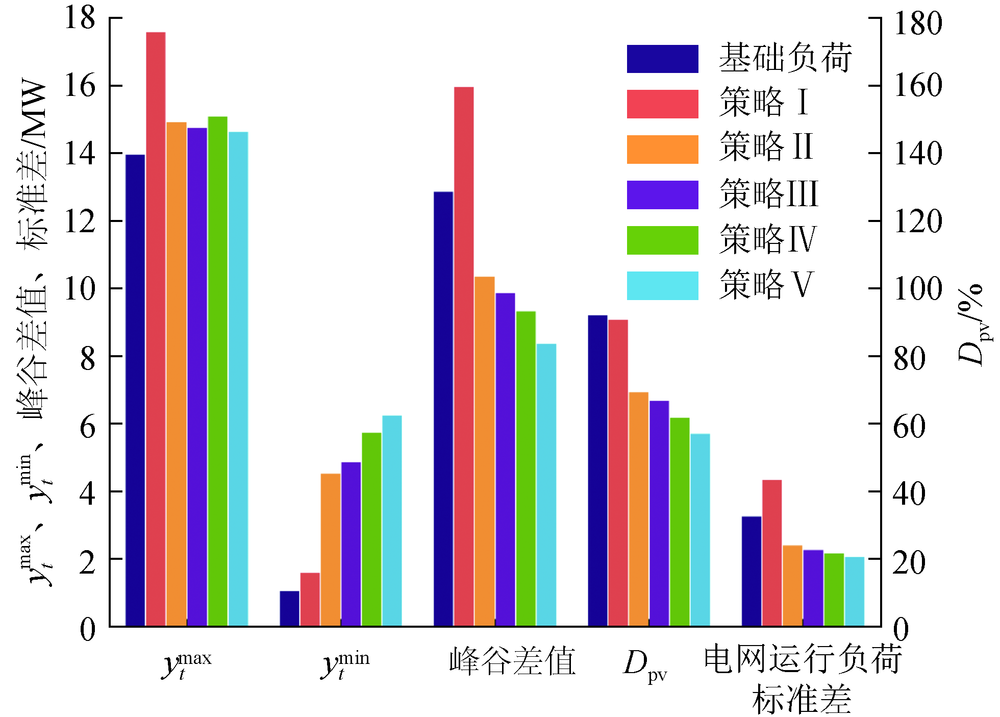

Fig.6 Levels of load peak-to-valley differences and load fluctuation under different DR strategies

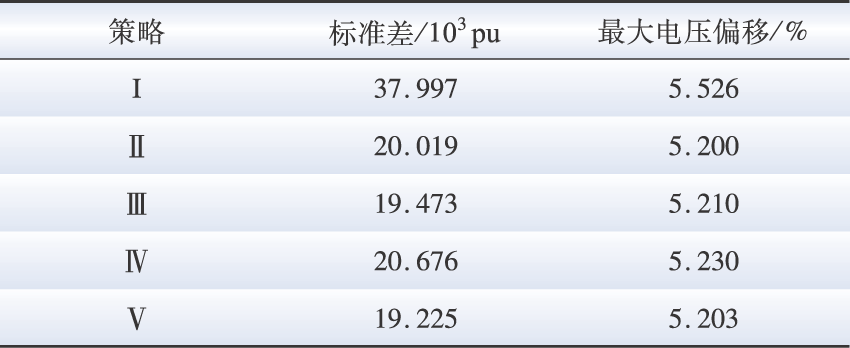

Table 2 System voltage stability indicators under different DR strategies

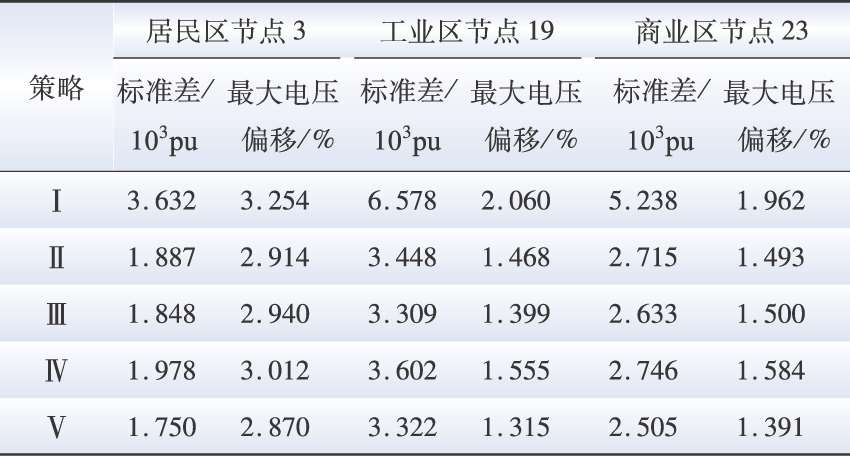

Table 3 Voltage stability indicators for each functional area under different DR strategies

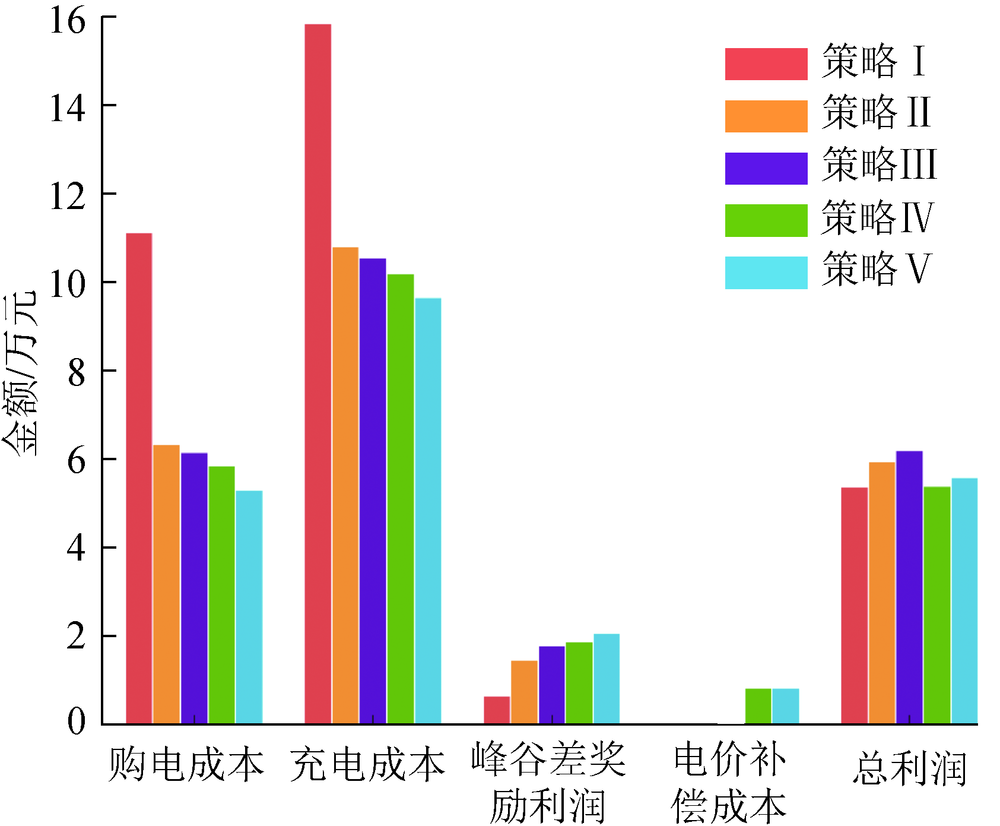

Fig.7 Cost and profits under each strategy

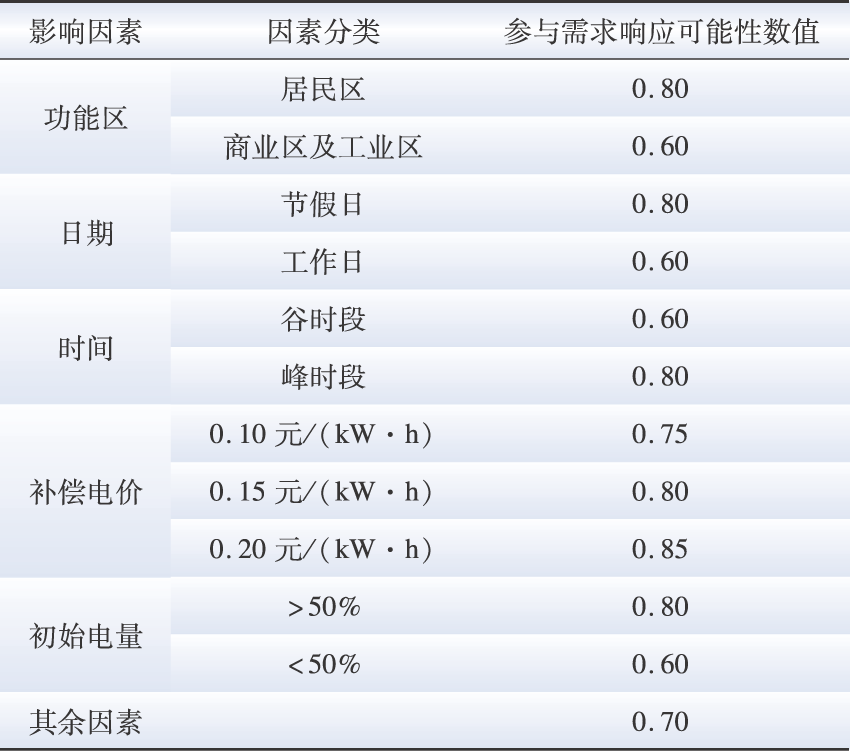

Table A1 Possibility value of consumer participating in demand response

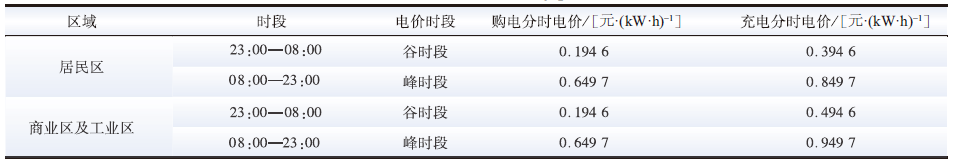

Table A2 Peak and valley prices

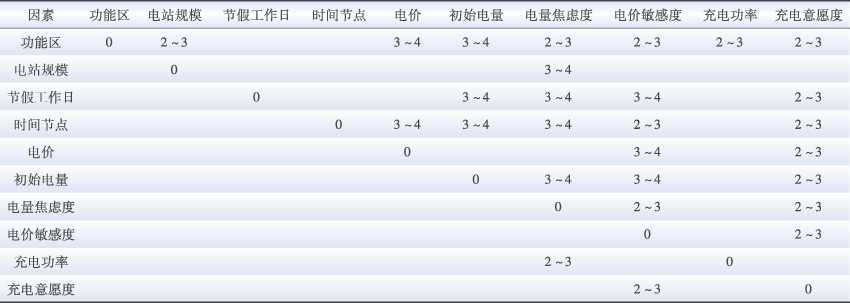

Table A3 Fuzzy influence matrix among factors

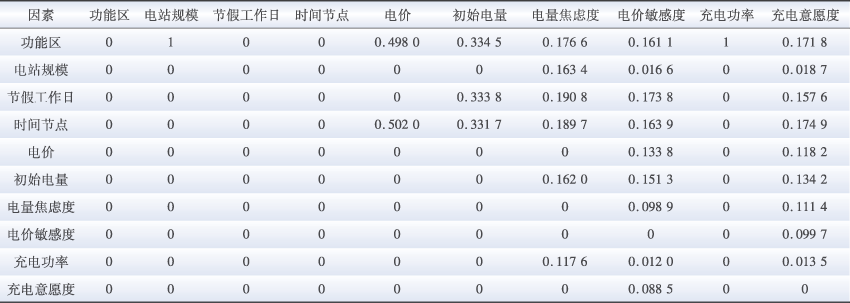

Table A4 Coupling weight values among factors

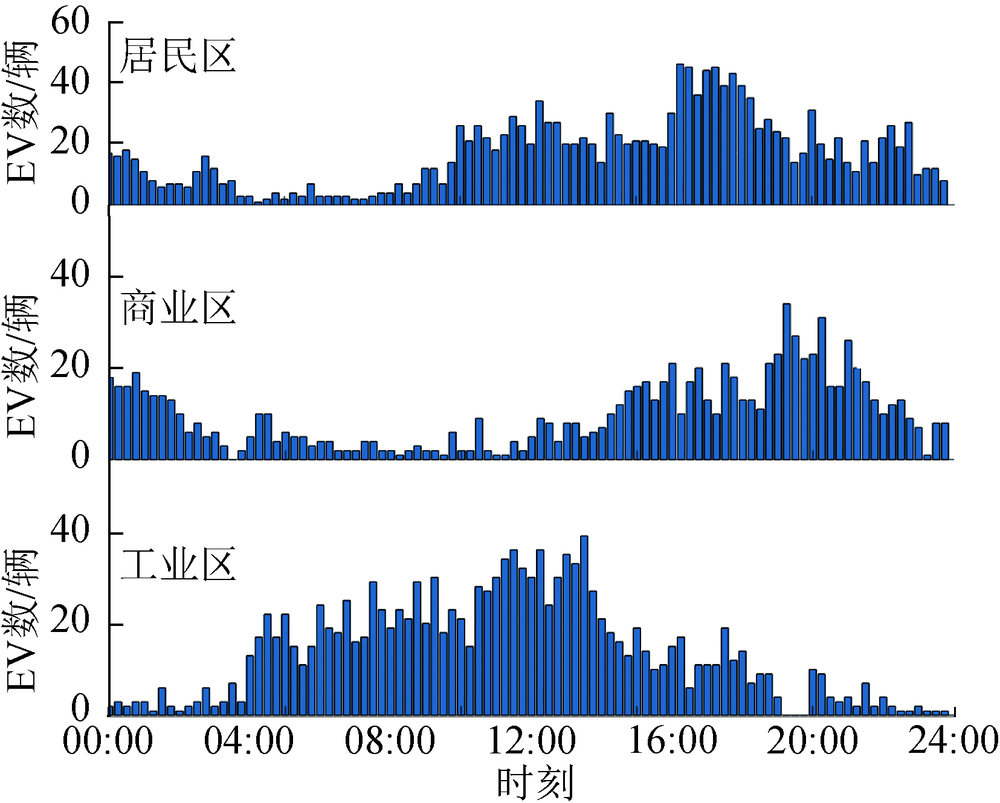

Fig.B1 Charging start time of EVs in different functional areas

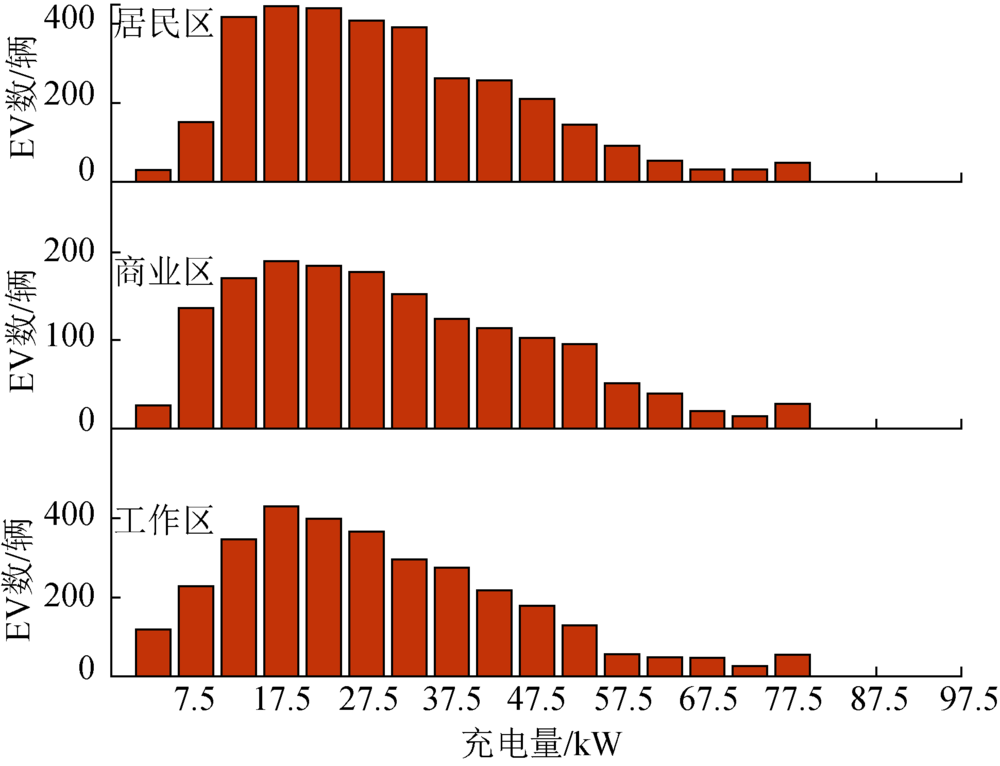

Fig.B2 Single-time charge capacity of EVs in different functional areas

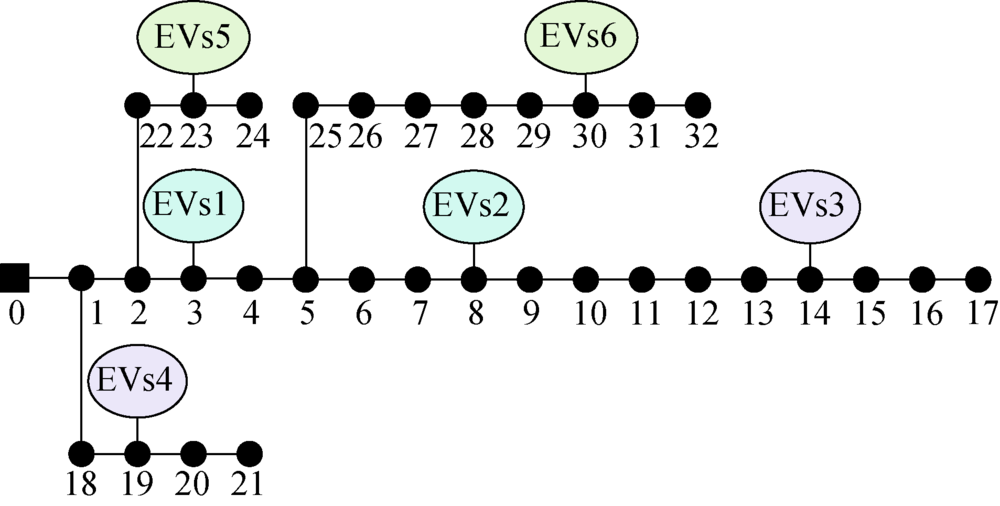

Fig.B3 IEEE 33-bus system
