A General Incentive Pricing Model and Its Application for Multi-type Demand-Side Resources of Load Aggregators

doi:10.12204/j.issn.1000-7229.2021.01.001

Abstract

Abstract:

A load aggregator is a professional organization to develop power demand response, which integrates demand-side adjustable resources to participate in system operation and market transactions to gain profits. It is very important for further flexible management of demand-side resources and increasing demand-response benefit to realize personalized incentive customization of multiple types of demand-response resources. It is also the core business of load aggregators. In this paper, a general model of incentive price customization for load aggregators is established according to the principle of stackelberg game. Electric-vehicle users and building air-conditioning users are selected as the research object. Considering the impact of comfort price changing with load shedding, an optimization model of building air-conditioning users with different comfort prices and a model for optimizing the charge and discharge behavior of electric vehicles are constructed under the framework of stackelberg game model. Karush-Kuhn-Tucker condition, dual theorem and linear relaxation are used to derive a two-level mixed integer linear programming model with the minimum economic loss of load aggregator. The results show that the proposed model can be effectively used to customize dynamic incentive price of building air-conditioning users and electric-vehicle users for load aggregators, and provide new ideas for demand response.

Key words: load aggregator, building air conditioning, electric vehicle, incentive, profit

CLC Number:

TM73

WU Wanlu, HAN Shuai, SUN Leping, GUO Xiaoxuan. A General Incentive Pricing Model and Its Application for Multi-type Demand-Side Resources of Load Aggregators[J]. ELECTRIC POWER CONSTRUCTION, 2021, 42(1): 1-9.

Figures/Tables 11

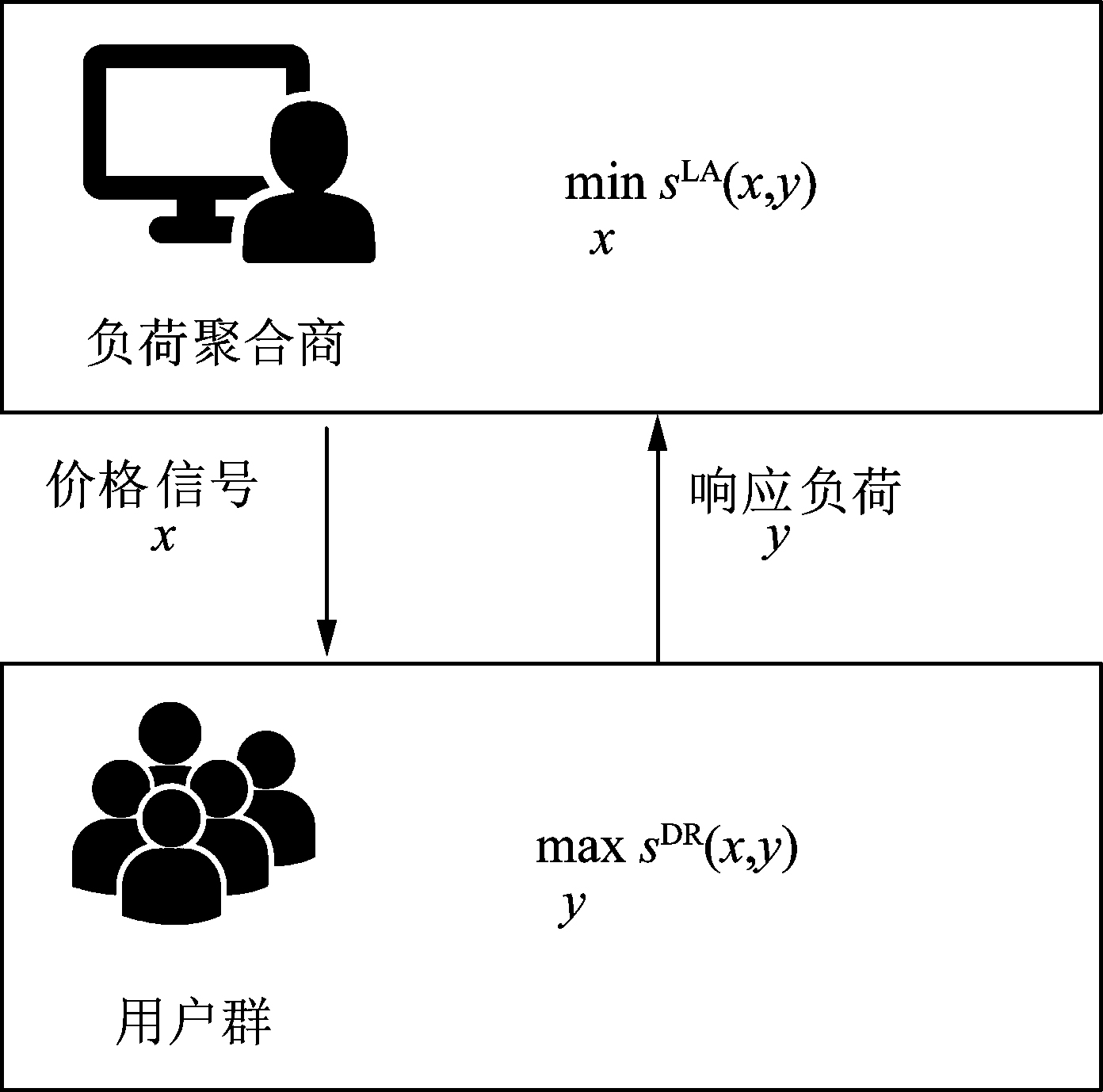

Fig.1 Architecture of a two-level problem

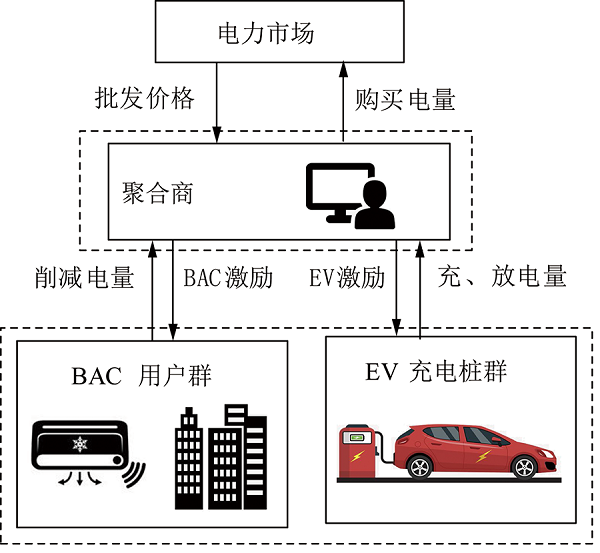

Fig.2 Framework of stackelberg game model between LA and users

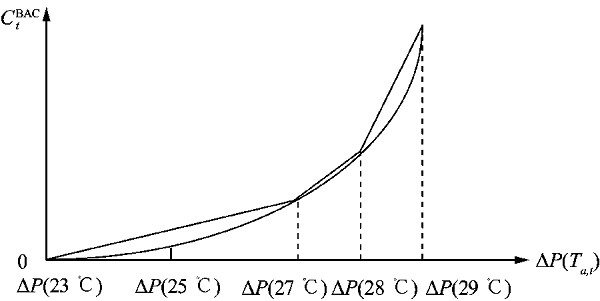

Fig.3 Curve of comfort cost versus reduced load

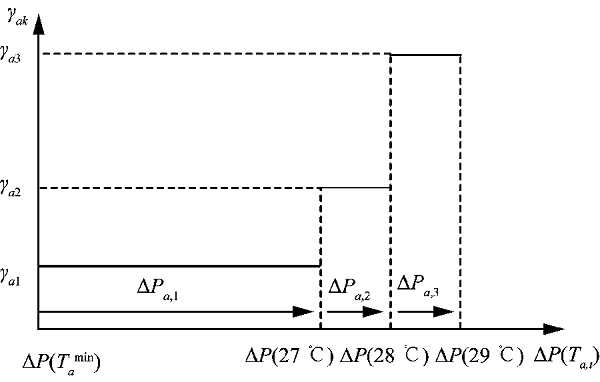

Fig.4 Curve of comfort price versus reduced load

Table 1 Parameters of BAC

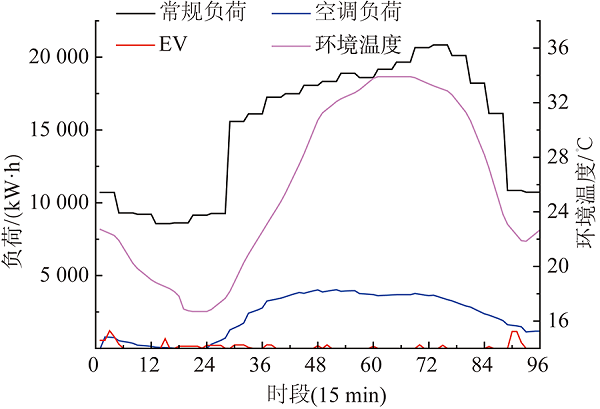

Fig.5 Forecast value of load and outdoor air temperature

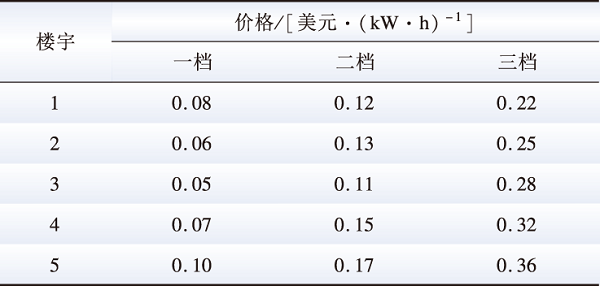

Table 2 Comfort price of user

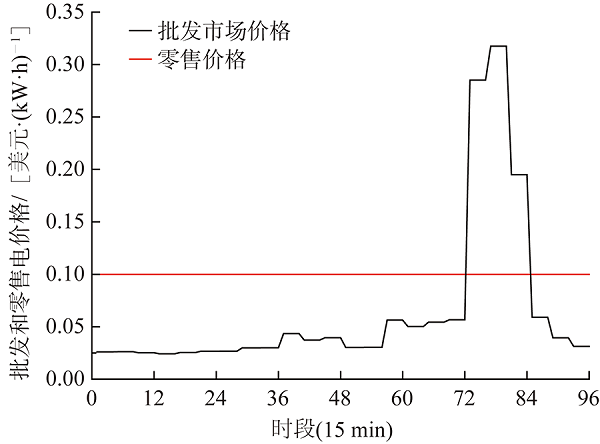

Fig.6 Wholesale price of power and retail rate

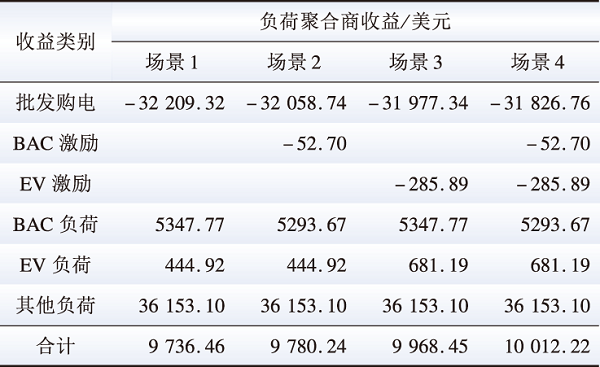

Table 3 Profit of the load aggregator in different scenarios

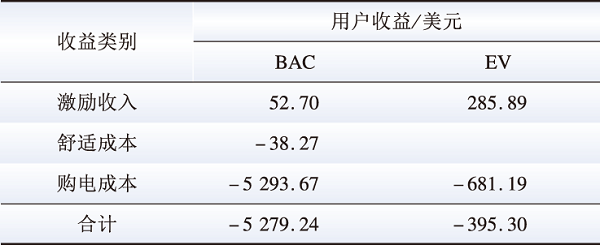

Table 4 Benefit of users participating in demand response

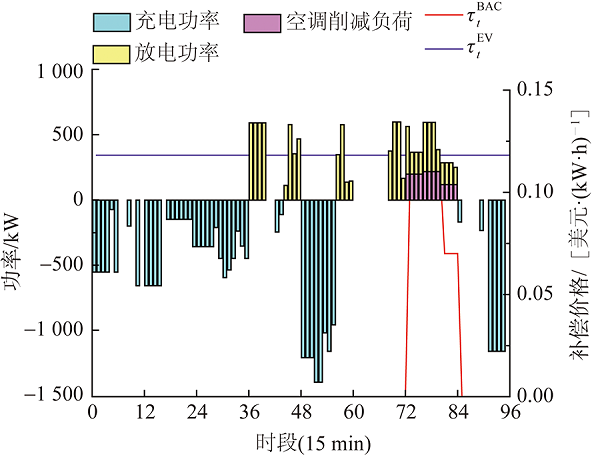

Fig.7 Simulation results under scenario 4

References 16

[1]	张钦, 王锡凡, 王建学 , 等. 电力市场下需求响应研究综述[J]. 电力系统自动化, 2008,32(3):97-106.
	ZHANG Qin, WANG Xifan, WANG Jianxue , et al. Survey of demand response research in deregulated electricity markets[J]. Automation of Electric Power Systems, 2008,32(3):97-106.
[2]	曾鸣, 韩旭, 孙静惠 , 等. 能源互联网背景下自动需求响应关键问题及展望[J]. 电力建设, 2017,38(2):21-27.
	ZENG Ming, HAN Xu, SUN Jinghui , et al. Key issues and prospects of automated demand response under energy Internet background[J]. Electric Power Construction, 2017,38(2):21-27.
[3]	高赐威, 李倩玉, 李慧星 , 等. 基于负荷聚合商业务的需求响应资源整合方法与运营机制[J]. 电力系统自动化, 2013,37(17):78-86. doi: 10.7500/AEPS201211091 URL
	GAO Ciwei, LI Qianyu, LI Huixing , et al. Methodology and operation mechanism of demand response resources integration based on load aggregator[J]. Automation of Electric Power Systems, 2013,37(17):78-86. doi: 10.7500/AEPS201211091 URL
[4]	陈璐, 杨永标, 姚建国 , 等. 基于电力积分的需求响应激励机制设计[J]. 电力系统自动化, 2013,37(18):82-87. doi: 10.7500/AEPS201208245 URL
	CHEN Lu, YANG Yongbiao, YAO Jianguo , et al. Incentive mechanism design for demand response based on power score[J]. Automation of Electric Power Systems, 2013,37(18):82-87. doi: 10.7500/AEPS201208245 URL
[5]	王均, 黄琦 . 基于优惠券激励的需求响应双层优化机制[J]. 电力系统保护与控制, 2019,47(1):108-114.
	WANG Jun, HUANG Qi . Coupon incentives based customers voluntary demand response program via bilevel optimization mechanism[J]. Power System Protection and Control, 2019,47(1):108-114.
[6]	李媛, 冯昌森, 文福拴 , 等. 含电动汽车和电转气的园区能源互联网能源定价与管理[J]. 电力系统自动化, 2018,42(16):1-10.
	LI Yuan, FENG Changsen, WEN Fushuan , et al. Energy pricing and management for park-level energy internets with electric vehicles and power-to-gas devices[J]. Automation of Electric Power Systems, 2018,42(16):1-10.
[7]	董军, 张晓虎, 李春雪 , 等. 自动需求响应背景下考虑用户满意度的分时电价最优制定策略[J]. 电力自动化设备, 2016,36(7):67-73.
	DONG Jun, ZHANG Xiaohu, LI Chunxue , et al. Optimal TOU pricing strategy considering user satisfaction in automated demand response background[J]. Electric Power Automation Equipment, 2016,36(7):67-73.
[8]	张高, 王旭, 蒋传文 . 基于主从博弈的含电动汽车虚拟电厂协调调度[J]. 电力系统自动化, 2018,42(11):48-55.
	ZHANG Gao, WANG Xu, JIANG Chuanwen . Stackelberg game based coordinated dispatch of virtual power plant considering electric vehicle management[J]. Automation of Electric Power Systems, 2018,42(11):48-55.
[9]	宋梦, 高赐威, 苏卫华 . 面向需求响应应用的空调负荷建模及控制[J]. 电力系统自动化, 2016,40(14):158-167.
	SONG Meng, GAO Ciwei, SU Weihua . Modeling and controlling of air-conditioning load for demand response applications[J]. Automation of Electric Power Systems, 2016,40(14):158-167.
[10]	黄海涛, 王岱锋, 朱丰泽 , 等. 考虑热舒适度的变频空调响应调控策略[J]. 电力建设, 2018,39(9):9-17.
	HUANG Haitao, WANG Daifeng, ZHU Fengze , et al. Study on the control strategy of frequency conversion air conditioning considering thermal comfort[J]. Electric Power Construction, 2018,39(9):9-17.
[11]	辛洁晴, 吴亮 . 商务楼中央空调周期性暂停分档控制策略[J]. 电力系统自动化, 2013,37(5):49-54. doi: 10.7500/AEPS201204161 URL
	XIN Jieqing, WU Liang . Hierarchical strategies for duty cycling control of air conditioners in business buildings[J]. Automation of Electric Power Systems, 2013,37(5):49-54. doi: 10.7500/AEPS201204161 URL
[12]	ZENG B, ZHAO L . Solving two-stage robust optimization problems using a column-and-constraint generation method[J]. Operations Research Letters, 2013,41(5):457-461. doi: 10.1016/j.orl.2013.05.003 URL
[13]	Residential module user’s guide [EB/OL]. [ 2020- 03- 22]. http://gridlab-d.shoutwiki.com/wiki/Residential_module_user%27s_guide, 2017-06-06.
[14]	RUIZ C, CONEJO A J . Pool strategy of a producer with endogenous formation of locational marginal prices[J]. IEEE Transactions on Power Systems, 2009,24(4):1855-1866. doi: 10.1109/TPWRS.2009.2030378 URL
[15]	YAO W F, ZHAO J H, WEN F S , et al. A hierarchical decomposition approach for coordinated dispatch of plug-in electric vehicles[J]. IEEE Transactions on Power Systems, 2013,28(3):2768-2778. doi: 10.1109/TPWRS.2013.2256937 URL
[16]	Climate guide [EB/OL]. [ 2020- 03- 22]. http://gridlab-d.shoutwiki.com/wiki/Climate_Guide2016-07-2.
