Optimized Operation of Electricity Sales Companies Considering the Insurance Mechanism and User Demand Response

doi:10.12204/j.issn.1000-7229.2023.01.006

Abstract

Abstract:

The uncertainty of the electricity purchase and sale sides is the key factor restricting the operation of the electricity sales company. This paper uses the third-party insurance mechanism to avoid market fluctuations and demand response to improve returns, and puts forward an optimized operation model for electricity sales companies under the spot market. Firstly, the deviation assessment model and premium model are established, the deviation assessment model of the user limit penalty mechanism and demand response contract on the user utility in the bilateral long association contract are quantified, and the optimal operation model is verified with the data of local users. The example results show that the electricity sales company can guide the users to respond positively through the stepped demand response incentive mechanism; the introduced insurance mechanism can effectively disperse and transfer the risk of electricity fluctuation, and realize the win-win value between the electricity sales company and the users.

This work is supported by National Natural Science Foundation of China(No. 52077146).

Key words: demand response, user utility, market insurance, electricity sales company, deviation assessment

CLC Number:

TM76

WEN Qianhui, WEI Zhenbo, ZHANG Yonglin, LIANG Zheng, HE Yongxiang. Optimized Operation of Electricity Sales Companies Considering the Insurance Mechanism and User Demand Response[J]. ELECTRIC POWER CONSTRUCTION, 2023, 44(1): 47-54.

Figures/Tables 6

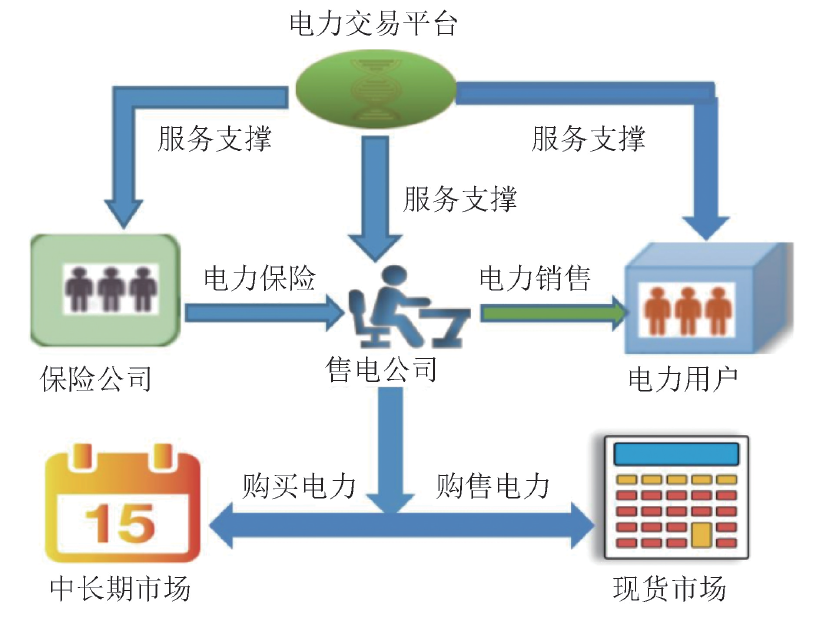

Fig.1 Market structure including the insurance companies

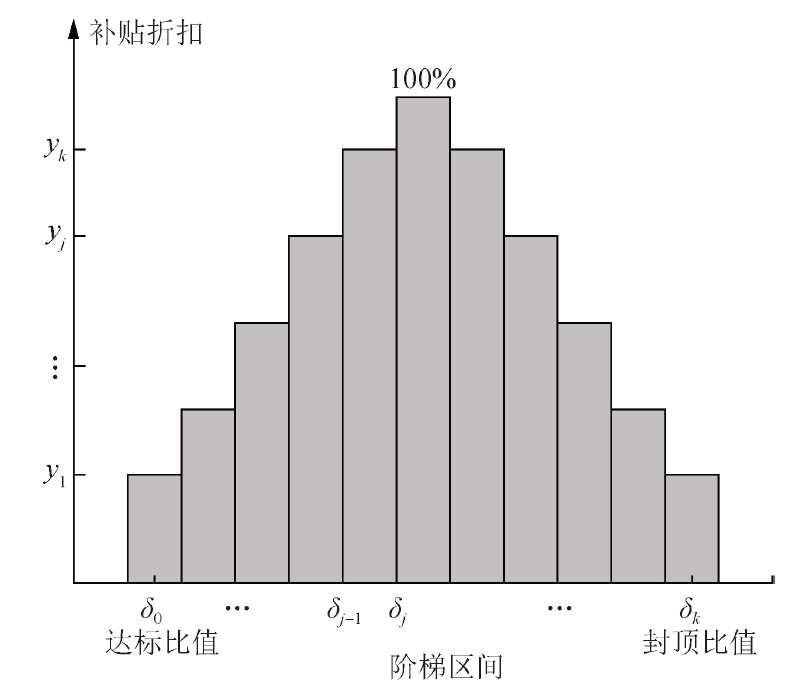

Fig.2 DR ladder-incentive mechanism

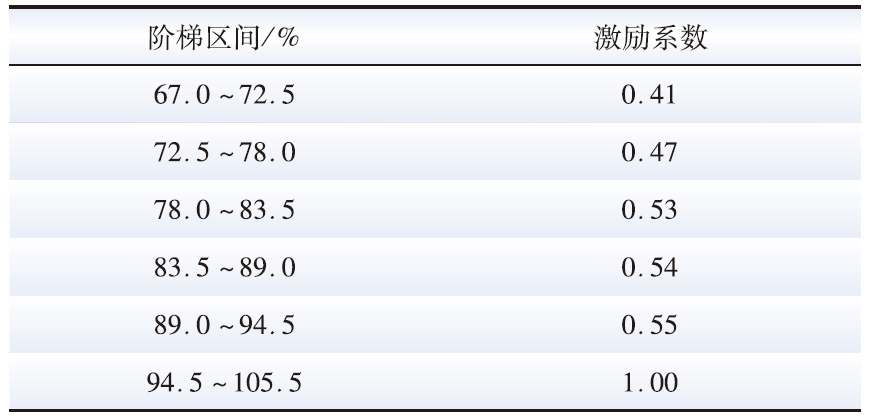

Table 1 Optimization result of demand-response ladder-incentive mechanism

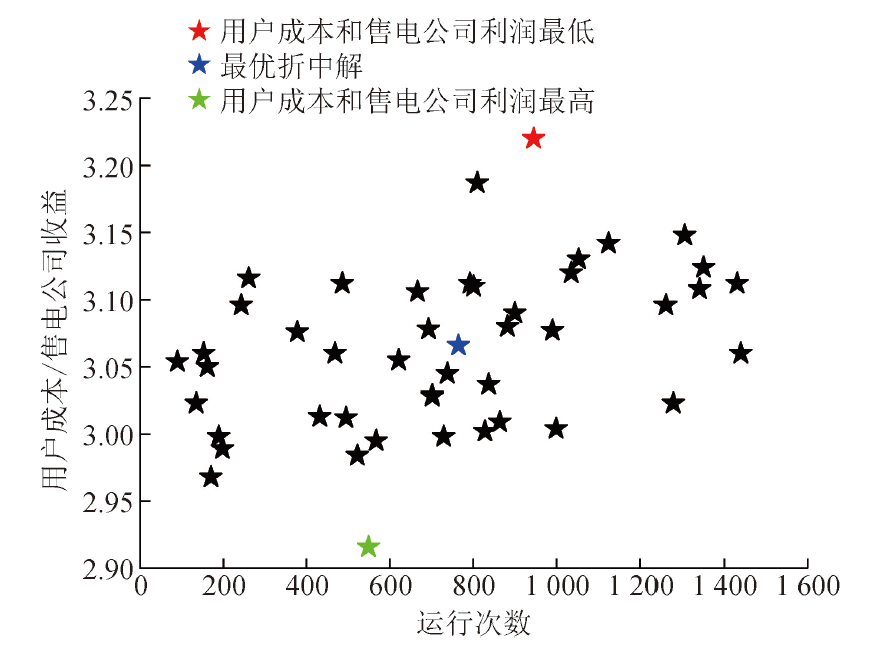

Fig.3 Optimal solution set of ladder-incentive

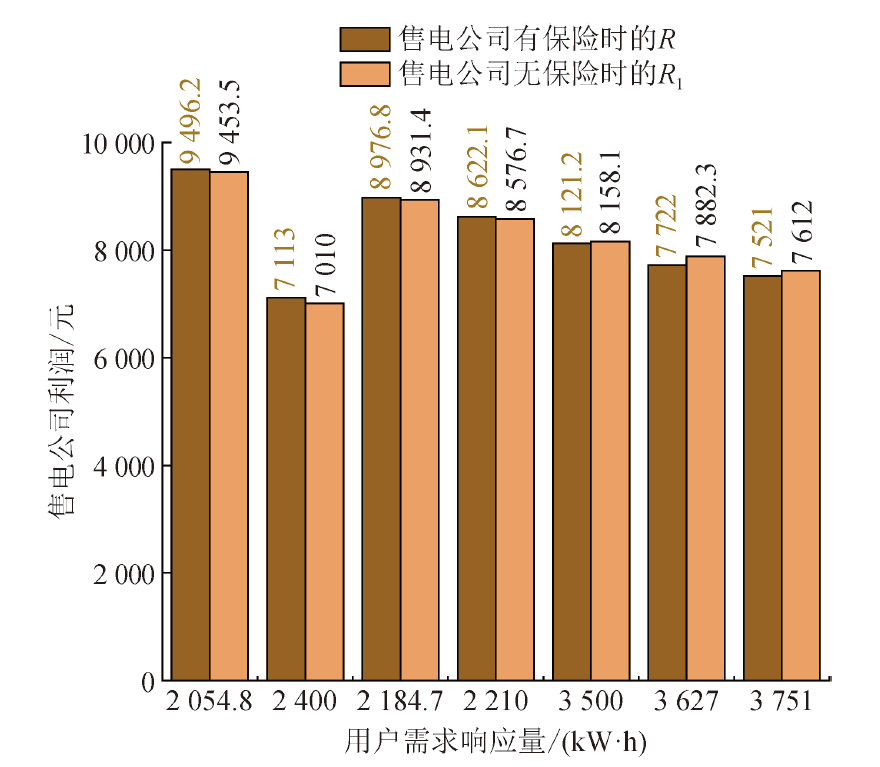

Fig.4 Relationship between demand response volume and the profit of the electricity sales company

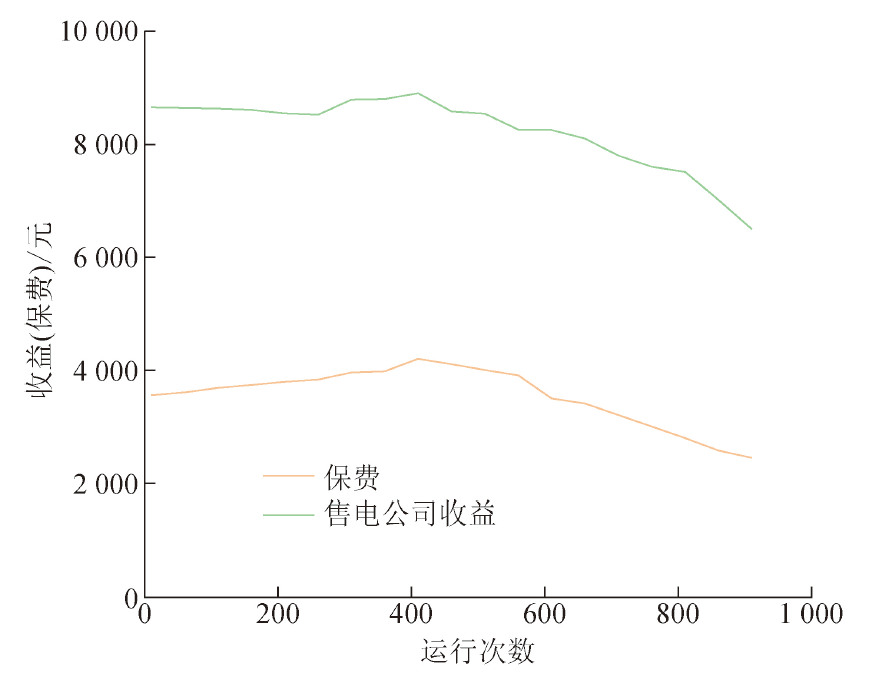

Fig.5 Objective function value under different premiums

References 24

[1]	国家发改委. 关于进一步深化燃煤发电上网电价市场化改革的通知[R]. 国家发改委, 2021.
	The NDRC. Notice on further deepening the market-oriented reform of on-grid electricity price for coal-fired power generation[R]. The NDRC, 2021.
[2]	FENG L, ZHANG J N, LI G J, et al. Cost reduction of a hybrid energy storage system considering correlation between wind and PV power[J]. Protection and Control of Modern Power Systems, 2016, 1: 11. doi: 10.1186/s41601-016-0021-1 URL
[3]	王林炎, 张粒子, 张凡, 等. 售电公司购售电业务决策与风险评估[J]. 电力系统自动化, 2018, 42(1): 47-54.
	WANG Linyan, ZHANG Lizi, ZHANG Fan, et al. Decision-making and risk assessment of purchasing and selling business for electricity retailers[J]. Automation of Electric Power Systems, 2018, 42(1): 47-54.
[4]	王星华, 刘升伟, 陈豪君, 等. 考虑用户差异性的售电公司需求响应电价模型[J]. 电力建设, 2019, 40(9): 116-123. doi: 10.3969/j.issn.1000-7229.2019.09.014
	WANG Xinghua, LIU Shengwei, CHEN Haojun, et al. Demand response pricing model for power sales companies considering user differences[J]. Electric Power Construction, 2019, 40(9): 116-123. doi: 10.3969/j.issn.1000-7229.2019.09.014
[5]	李小玉, 贾伯岩, 关家祥, 等. 计及需求响应不确定性的售电商峰谷电价决策研究[J]. 河北电力技术, 2020, 39(6): 6-11.
	LI Xiaoyu, JIA Boyan, GUAN Jiaxiang, et al. Research on peak-valley time-of-use pricing of electricity tariff considering demand response uncertainty[J]. Hebei Electric Power, 2020, 39(6): 6-11.
[6]	YANG H M, ZHANG J, QIU J, et al. A practical pricing approach to smart grid demand response based on load classification[J]. IEEE Transactions on Smart Grid, 2018, 9(1): 179-190. doi: 10.1109/TSG.2016.2547883 URL
[7]	CRAMPES C. Economics of stationary electricity storage with various charge and discharge durations[J]. Journal of Energy Storage, 2019, 24: 100746. doi: 10.1016/j.est.2019.04.020 URL
[8]	郭曼兰, 陈皓勇, 张聪, 等. 偏差电量考核机制下售电公司的最优经营策略[J]. 电力系统自动化, 2017, 41(20): 17-25.
	GUO Manlan, CHEN Haoyong, ZHANG Cong, et al. Optimal marketing strategy of retailers under energy deviation penalty[J]. Automation of Electric Power Systems, 2017, 41(20): 17-25.
[9]	唐力, 刘继春, 杨阳方, 等. 基于信息间隙决策理论的多种零售合同模式下售电公司购售电策略[J]. 电网技术, 2019, 43(6): 1978-1988.
	TANG Li, LIU Jichun, YANG Yangfang, et al. Study on strategies of electricity procurement and sale of power retailer with multiple retail contract modes based on information gap decision theory[J]. Power System Technology, 2019, 43(6): 1978-1988.
[10]	喻小宝, 谭忠富, 马佳乐, 等. 计及需求响应的售电公司正偏差电量考核优化模型[J]. 电力系统自动化, 2019, 43(7): 120-128.
	YU Xiaobao, TAN Zhongfu, MA Jiale, et al. Optimal model for positive deviation penalty of power retailers considering demand response[J]. Automation of Electric Power Systems, 2019, 43(7): 120-128.
[11]	杨萌, 艾欣, 唐亮, 等. 计及风险规避的售电公司平衡市场优化交易策略研究[J]. 电网技术, 2016, 40(11): 3300-3309.
	YANG Meng, AI Xin, TANG Liang, et al. Optimal trading strategy in balancing market for electricity retailer considering risk aversion[J]. Power System Technology, 2016, 40(11): 3300-3309.
[12]	冯小峰, 谢添阔, 高赐威, 等. 电力现货市场下计及售电商长期收益的需求侧响应[J]. 电网技术, 2019, 43(8): 2761-2769.
	FENG Xiaofeng, XIE Tiankuo, GAO Ciwei, et al. A demand side response strategy considering long-term revenue of electricity retailer in electricity spot market[J]. Power System Technology, 2019, 43(8): 2761-2769.
[13]	徐弘升, 陆继翔, 杨志宏, 等. 基于深度强化学习的激励型需求响应决策优化模型[J]. 电力系统自动化, 2021, 45(14): 97-103.
	XU Hongsheng, LU Jixiang, YANG Zhihong, et al. Decision optimization model of incentive demand response based on deep reinforcement learning[J]. Automation of Electric Power Systems, 2021, 45(14): 97-103.
[14]	任艺, 周明, 李庚银. 考虑用户需求响应的售电公司购售电决策双层模型[J]. 电力系统自动化, 2017, 41(14): 30-36.
	REN Yi, ZHOU Ming, LI Gengyin. Bi-level model of electricity procurement and sale strategies for electricity retailers considering users' demand response[J]. Automation of Electric Power Systems, 2017, 41(14): 30-36.
[15]	ZHENG S L, SUN Y, LI B, et al. Stochastic programming model for incentive-based demand response considering complex uncertainties of consumers[J]. IET Generation, Transmission & Distribution, 2020, 14(20): 4488-4500. doi: 10.1049/iet-gtd.2020.0692 URL
[16]	林照航, 李华强, 王羽佳, 等. 基于可利用传输能力与保险理论的大用户直购电决策[J]. 电网技术, 2016, 40(5): 1564-1569.
	LIN Zhaohang, LI Huaqiang, WANG Yujia, et al. Research on direct-power-purchasing decision of large consumers based on available transfer capability and insurance theory[J]. Power System Technology, 2016, 40(5): 1564-1569.
[17]	YANG H M, QIU J, MENG K, et al. Insurance strategy for mitigating power system operational risk introduced by wind power forecasting uncertainty[J]. Renewable Energy, 2016, 89: 606-615. doi: 10.1016/j.renene.2015.12.007 URL
[18]	王辉, 王军杰, 王腾飞, 等. 出力不确定下基于保险机制的风电供应链最优交易决策[J]. 技术经济, 2020, 39(12): 43-50.
	WANG Hui, WANG Junjie, WANG Tengfei, et al. Optimal trading decision of wind power supply chain based on insurance mechanism under uncertainty output[J]. Journal of Technology Economics, 2020, 39(12): 43-50.
[19]	王腾飞, 王辉, 冷亚军, 等. 计及电力保险的电力市场主体最优决策[J]. 电力系统自动化, 2020, 44(12): 56-63.
	WANG Tengfei, WANG Hui, LENG Yajun, et al. Power insurance based support optimal decision of electricity market subjects[J]. Automation of Electric Power Systems, 2020, 44(12): 56-63.
[20]	徐瑶, 杨成慧, 包淑慧, 等. 引入保险机制的售电公司交易决策优化[J]. 电力需求侧管理, 2021, 23(6): 41-46.
	XU Yao, YANG Chenghui, BAO Shuhui, et al. Optimisation of power retailer trading decision under power IoT environment[J]. Power Demand Side Management, 2021, 23(6): 41-46.
[21]	四川电力交易中心. 2022年四川电力市场结算细则[R]. 四川电力交易中心, 2022.
	Sichuan Electric Power Trading Center. 2022 Sichuan electric power market settlement rules[R]. Sichuan Electric Power Trading Center, 2022.
[22]	唐力, 刘继春. 不同零售合同模式下的售电公司多目标购售电决策建模[J]. 供用电, 2019, 36(2): 48-55.
	TANG Li, LIU Jichun. Multi-target electricity procurement and sale strategies modeling of electricity retailers under different retail contract modes[J]. Distribution & Utilization, 2019, 36(2): 48-55.
[23]	CONEJO A J, FERNANDEZ-GONZALEZ J J, ALGUACIL N. Energy procurement for large consumers in electricity markets[J]. IEE Proceedings - Generation, Transmission and Distribution, 2005, 152(3): 357. doi: 10.1049/ip-gtd:20041252 URL
[24]	QI X J, JI Z S, WU H B, et al. Short-term reliability assessment of generating systems considering demand response reliability[J]. IEEE Access, 8: 74371-74384. doi: 10.1109/ACCESS.2020.2988620 URL
