Coordinated Power Restoration Strategy of Electric Vehicles and Emergency Power Supply Vehicles Considering Multi-Temporal Domains
XU Yanchun, LI Fang, XI Lei, ZHANG Tao, WANG Lingyun, MI Lu
Electric Power Construction ›› 2026, Vol. 47 ›› Issue (8) : 119-139.
PDF(11575 KB)
PDF(11575 KB)
Coordinated Power Restoration Strategy of Electric Vehicles and Emergency Power Supply Vehicles Considering Multi-Temporal Domains
[Objective] To address the problem of critical load power restoration after distribution network faults, a coordinated power restoration strategy integrating electric vehicles (EVs) and emergency power supply vehicles (EPSVs) across multiple temporal domains is proposed. [Methods] A multi-temporal EV equivalent power source model is established to characterize the available power capacity of EV fleets under summer, winter, workday, and holiday scenarios. A load outage loss assessment model considering load importance, capacity, and outage duration is developed. On this basis, a two-stage EV-EPSV coordinated scheduling model is constructed and solved using genetic algorithm (GA) and adaptive large neighborhood search (ALNS). [Results] Simulation results show that, compared with the EV-only scheme, the EV+EPSV heuristic scheme achieves a load outage loss saving rate of approximately 9.51%-16.19%, while the proposed coordinated scheme achieves a load outage loss saving rate of approximately 34.49%-70.36%. Under the same coordinated restoration framework, ALNS outperforms local search (LS) with a saving rate of approximately 15.97%-49.18%. [Conclusions] The proposed strategy can exploit the temporal complementarity between the rapid response of EVs and the mobile compensation capability of EPSVs, effectively reducing load outage losses and improving power restoration efficiency after distribution network faults.
electric vehicle / emergency power supply vehicle / multi-temporal discharging model / load outage assessment / power supply restoration
表A1 各区域负荷的失电损失值Table A1 Load-loss cost of various regional load |
| 失电持续时间/min | 失电损失/(元·kW⁻¹) | ||
|---|---|---|---|
| 住宅区负荷 | 工作区负荷 | 购物区负荷 | |
| 0 | 0 | 0 | 0 |
| 1 | 0.028 | 12.073 | 9.995 |
| 20 | 1.470 | 21.774 | 38.119 |
| 60 | 5.292 | 51.045 | 104.363 |
| 120 | 11.023 | 65.118 | 203.729 |
| 240 | 36.453 | 84.872 | 382.565 |
| 480 | 78.002 | 116.259 | 770.715 |
| 1440 | 244.199 | 241.808 | 979.734 |
表A2 各类区域负荷重要度参量Table A2 Importance parameters of various regional load |
| 负荷区域类型 | εk,1 | εk,2 | εk,3 |
|---|---|---|---|
| 住宅区 | 1 | 1 | 0 |
| 工作区 | 1 | 4 | 1 |
| 购物区 | 2 | 3 | 2 |
表A3 各类区域负荷的典型负荷容量Table A3 Typical load capacity of various regional load |
| 负荷区域 | 负荷容量/MW |
|---|---|
| 住宅区 | 10.0 |
| 工作区 | 17.5 |
| 购物区 | 42.0 |
表C1 夏季场景EV分配明细Table C1 EV allocation under summer scenario |
| EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 |
|---|---|---|---|---|---|
| 1 | L1 | 12 | L2 | 23 | L1 |
| 2 | L1 | 13 | L1 | 24 | L2 |
| 3 | L3 | 14 | L2 | 25 | L3 |
| 4 | L1 | 15 | L1 | 26 | L3 |
| 5 | L2 | 16 | L2 | 27 | L2 |
| 6 | L1 | 17 | L1 | 28 | L3 |
| 7 | L2 | 18 | L2 | 29 | L3 |
| 8 | L2 | 19 | L1 | 30 | L1 |
| 9 | L2 | 20 | L1 | 31 | L1 |
| 10 | L2 | 21 | L1 | 32 | L1 |
| 11 | L2 | 22 | L1 | 33 | L3 |
表C2 冬季场景EV分配明细Table C2 EV allocation under winter scenario |
| EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 |
|---|---|---|---|---|---|
| 1 | L2 | 12 | L2 | 23 | L1 |
| 2 | L3 | 13 | L2 | 24 | L1 |
| 3 | L1 | 14 | L2 | 25 | L1 |
| 4 | L1 | 15 | L1 | 26 | L1 |
| 5 | L2 | 16 | L2 | 27 | L1 |
| 6 | L2 | 17 | L2 | 28 | L1 |
| 7 | L2 | 18 | L1 | 29 | L1 |
| 8 | L1 | 19 | L1 | 30 | L1 |
| 9 | L3 | 20 | L1 | 31 | L1 |
| 10 | L2 | 21 | L1 | 32 | L1 |
| 11 | L1 | 22 | L2 | 33 | L1 |
表C3 节假日场景EV分配明细Table C3 EV allocation under holiday scenario |
| EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 |
|---|---|---|---|---|---|
| 1 | L1 | 12 | L2 | 23 | L3 |
| 2 | L1 | 13 | L3 | 24 | L1 |
| 3 | L1 | 14 | L1 | 25 | L2 |
| 4 | L2 | 15 | L2 | 26 | L3 |
| 5 | L1 | 16 | L1 | 27 | L1 |
| 6 | L1 | 17 | L2 | 28 | L3 |
| 7 | L1 | 18 | L1 | 29 | L2 |
| 8 | L3 | 19 | L1 | 30 | L3 |
| 9 | L3 | 20 | L3 | 31 | L1 |
| 10 | L3 | 21 | L1 | 32 | L3 |
| 11 | L2 | 22 | L1 | 33 | L1 |
表C4 工作日场景EV分配明细Table C4 EV allocation under workday scenario |
| EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 | EV所在供电节点 | 受电负荷 |
|---|---|---|---|---|---|
| 1 | L1 | 12 | L2 | 23 | L2 |
| 2 | L3 | 13 | L2 | 24 | L2 |
| 3 | L1 | 14 | L2 | 25 | L2 |
| 4 | L3 | 15 | L3 | 26 | L2 |
| 5 | L3 | 16 | L2 | 27 | L2 |
| 6 | L3 | 17 | L3 | 28 | L2 |
| 7 | L3 | 18 | L2 | 29 | L2 |
| 8 | L2 | 19 | L1 | 30 | L2 |
| 9 | L2 | 20 | L2 | 31 | L2 |
| 10 | L2 | 21 | L3 | 32 | L2 |
| 11 | L2 | 22 | L3 | 33 | L2 |
表C5 不同场景下EPSV分配明细Table C5 EPSV allocation under different scenarios |
| 场景 | 受电负荷 | 供电车数量/辆 | 供电车编号 |
|---|---|---|---|
| 夏季 | L1 | 9 | 1,2,3,4,5,6,7,8,9 |
| L2 | 16 | 10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 | |
| L3 | 5 | 26,27,28,29,30 | |
| 冬季 | L1 | 19 | 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19 |
| L2 | 8 | 20,21,22,23,24,25,26,27 | |
| L3 | 3 | 28,29,30 | |
| 节假日 | L1 | 5 | 1,2,3,4,5 |
| L2 | 6 | 6,7,8,9,10,11 | |
| L3 | 19 | 12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30 | |
| 工作日 | L1 | 5 | 1,2,3,4,5 |
| L2 | 20 | 6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 | |
| L3 | 5 | 26,27,28,29,30 |

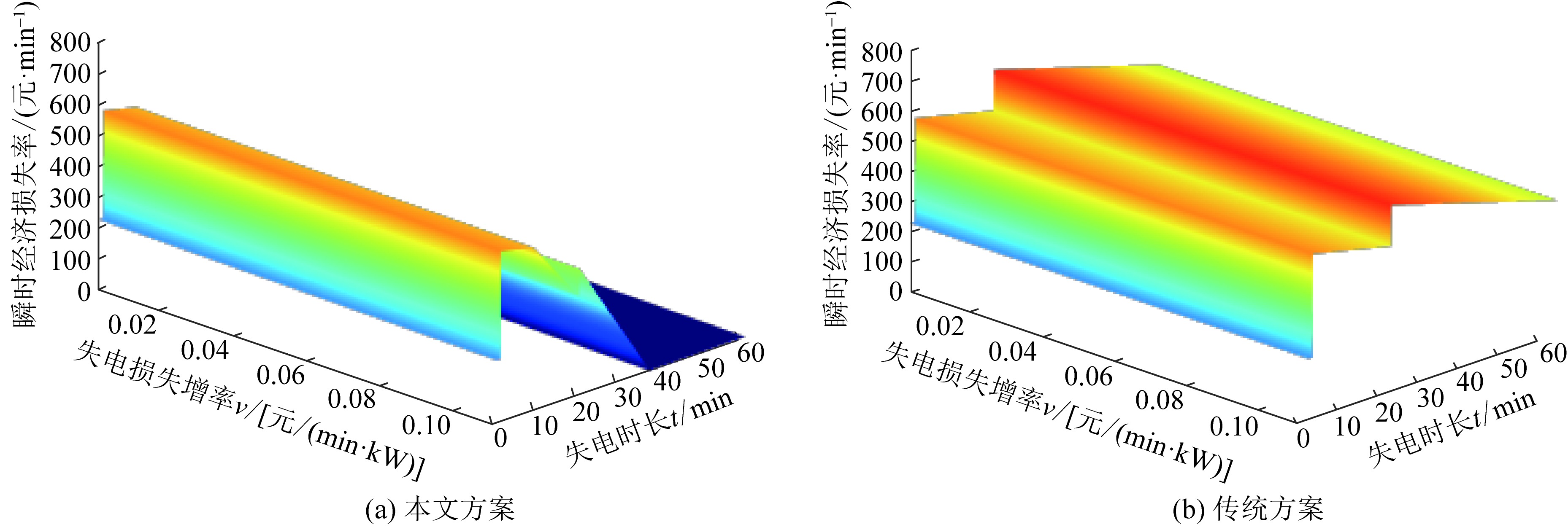

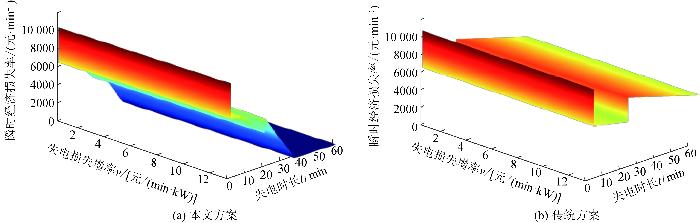

图C1 冬季场景下住宅区失电损失对比Fig. C1 Comparison of power outage losses in residential districts under winter scenario |

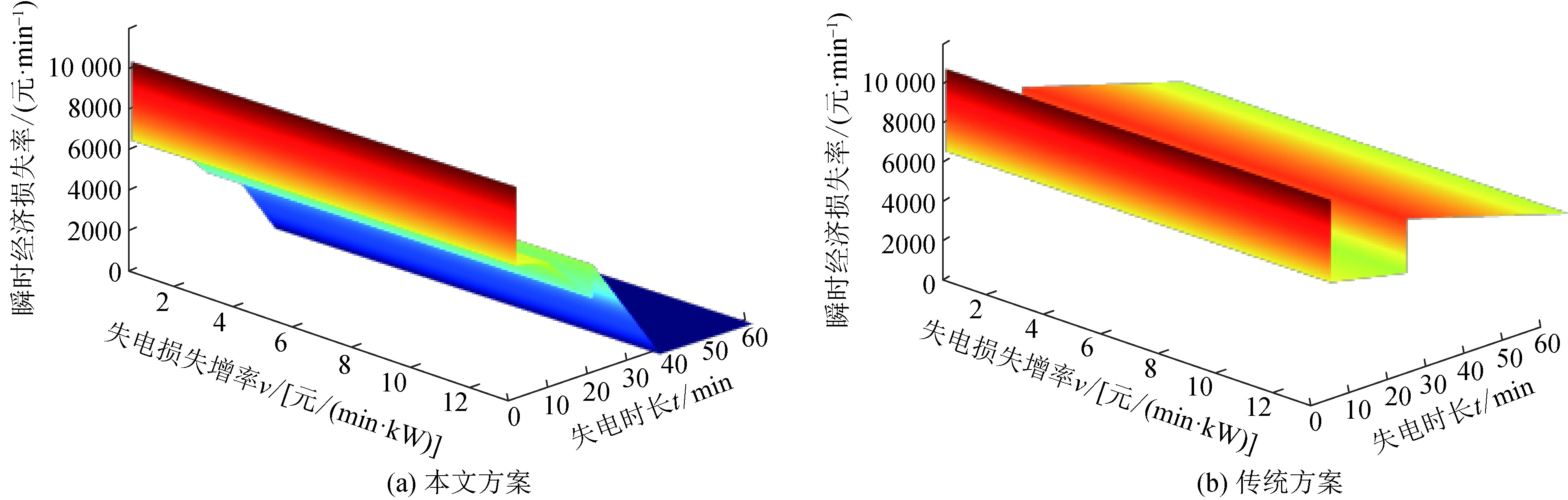

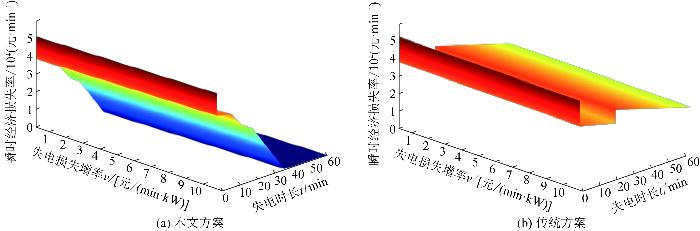

图C2 冬季场景下工作区失电损失对比Fig. C2 Comparison of power outage losses in workplace districts under winter scenario |

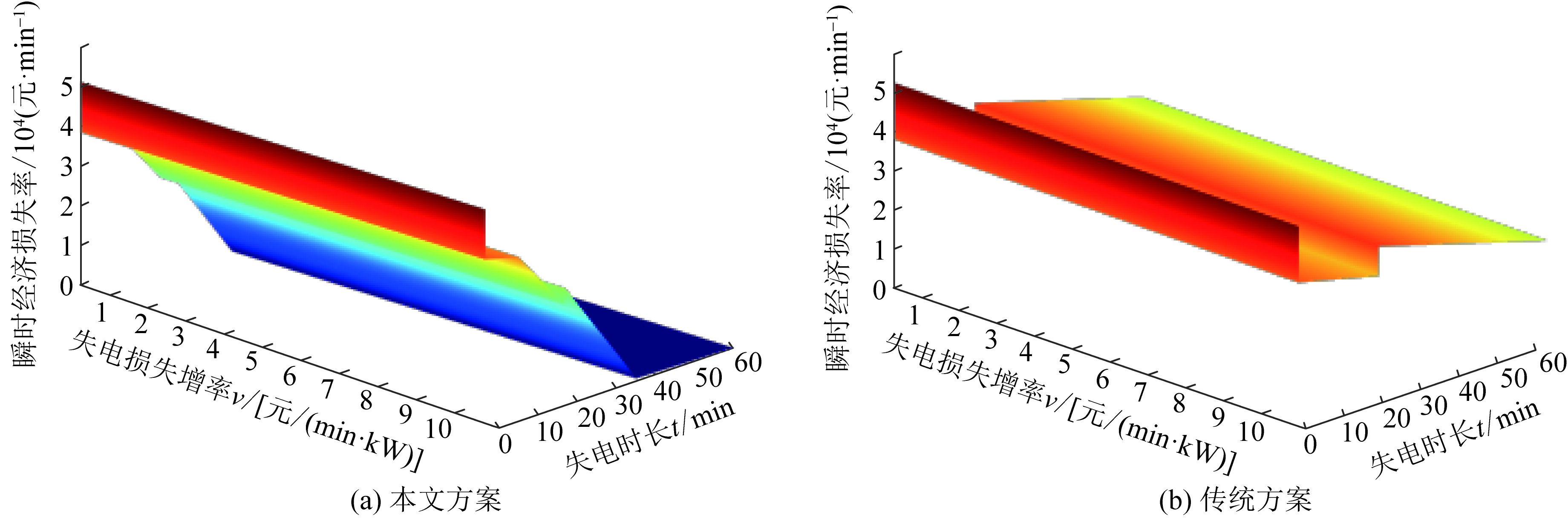

图C3 冬季场景下购物区失电损失对比Fig. C3 Comparison of power outage losses in shopping districts under winter scenario |

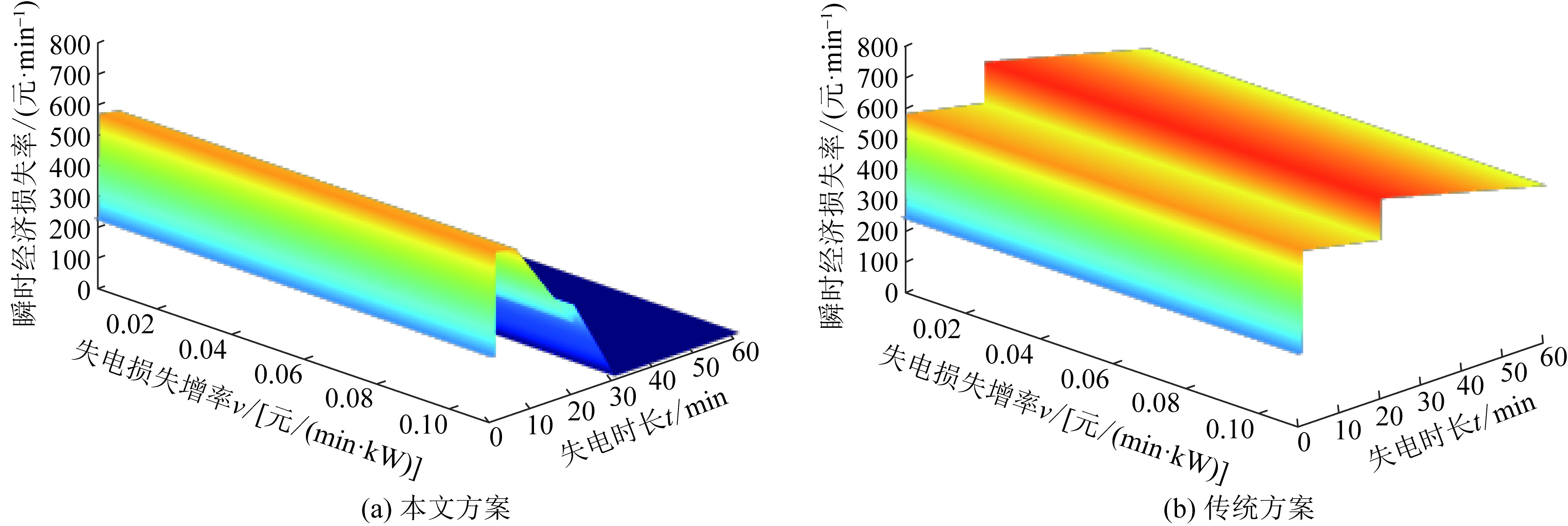

图C4 节假日场景下住宅区失电损失对比Fig. C4 Comparison of power outage losses in residential districts under holiday scenario |

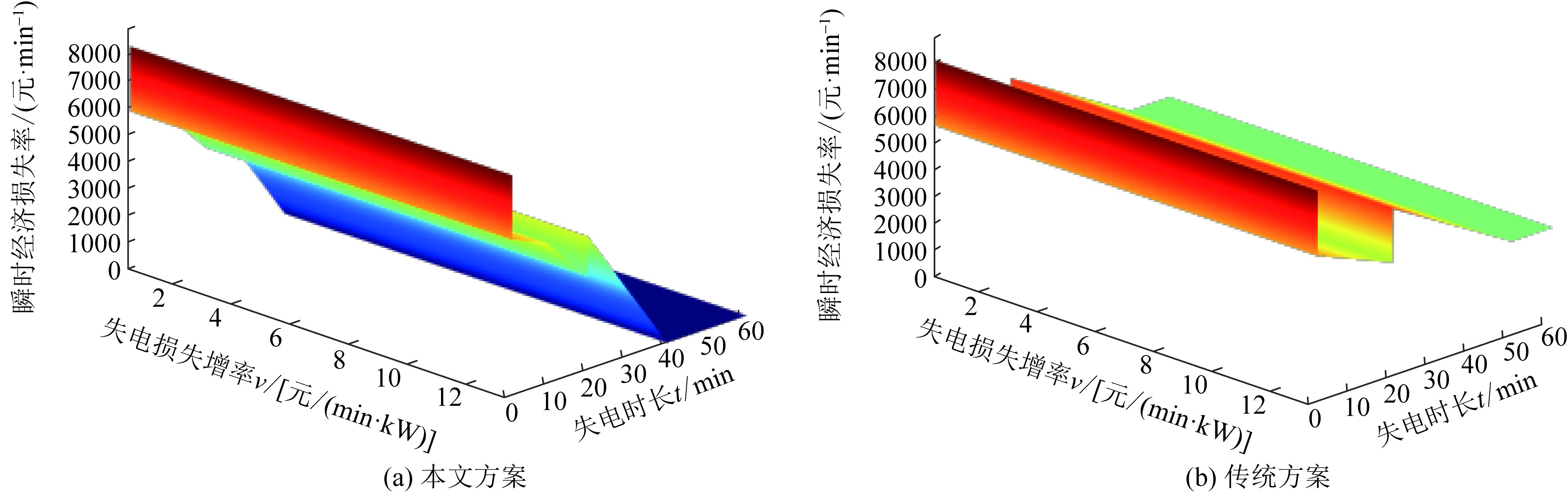

图C5 节假日场景下工作区失电损失对比Fig. C5 Comparison of power outage losses in workplace districts under holiday scenario |
| [1] |
刘潜, 陈谦, 徐旸, 等. 结合多状态软开关调控与网络重构的配电网最优故障恢复[J]. 电力建设, 2026, 47(2): 101-111.
|
| [2] |
刘舒, 时珊珊, 周政, 等. 考虑电动汽车的城市配电网网络重构策略[J]. 电测与仪表, 2025, 62(6): 170-177.
|
| [3] |
王炜歆, 张露元, 王小君, 等. 计及电动汽车引导和网络重构的配电网负荷恢复策略[J]. 山东电力技术, 2024, 51(8): 18-26.
|
| [4] |
王育飞, 李可铭, 薛花, 等. 考虑移动式储能调度的配电网灾后多源协同孤岛运行策略[J]. 电力系统自动化, 2024, 48(3): 62-72.
|
| [5] |
徐岩, 郭佳睿, 马天祥. 考虑韧性提升的配电网故障恢复与抢修协调优化[J]. 高电压技术, 2024, 50(12): 5516-5528.
|
| [6] |
冯德金, 赵毅, 钱小毅, 等. 考虑灵活性资源调节能力的供电恢复策略[J]. 电力科学与技术学报, 2025, 40(3): 85-95.
|
| [7] |
|
| [8] |
中华人民共和国公安部. 2025年全国机动车保有量达4.69亿辆新能源汽车保有量达4397万辆[EB/OL].(2026-01-27)[2026-02-08]. https://www.mps.gov.cn/n2254314/n6409334/c10383533/content.html.
|
| [9] |
王敏, 吕林, 向月. 计及V2G价格激励的电动汽车削峰协同调度策略[J]. 电力自动化设备, 2022, 42(4): 27-33, 85.
|
| [10] |
张婉莹, 张国新, 李亚锦, 等. 纯电动快递配送车V2G削峰填谷经济效益分析[J]. 山东电力技术, 2020, 47(12): 11-15.
|
| [11] |
黄啟茹, 胡俊杰, 单俊嘉. 基于交互能源机制的电动汽车充电站日前能量优化管理[J]. 现代电力, 2022, 39(5): 570-578.
|
| [12] |
梁云龙, 罗朝旭, 刘泽宇, 等. 基于V2G技术的电动汽车充电器分层控制策略[J]. 智慧电力, 2024, 52(10): 64-69, 78.
|
| [13] |
|
| [14] |
刘达夫, 钟剑, 杨祺铭, 等. 基于V2G与应急通信的配电网信息物理协同快速恢复方法[J]. 电力系统自动化, 2024, 48(7): 147-158.
|
| [15] |
谢宇峥, 章德, 杨祺铭, 等. 台风灾害下考虑修复不确定性和V2G的弹性城市电网动态供电恢复方法[J]. 电网与清洁能源, 2024, 40(6): 107-114.
|
| [16] |
石远钊, 侯慧, 王振国, 等. 计及电动汽车时空不确定性的配电网灾后协同抢修恢复策略[J]. 智慧电力, 2025, 53(10): 8-16.
|
| [17] |
袁小溪, 李香龙, 孙舟, 等. 电动汽车参与紧急调控的功率分配策略[J]. 电力科学与技术学报, 2024, 39(6): 113-120.
|
| [18] |
赵明宇, 徐石明, 高辉, 等. 基于模糊K-means算法的电动汽车应急供电策略[J]. 电力系统自动化, 2016, 40(5): 91-95, 108.
|
| [19] |
|
| [20] |
|
| [21] |
彭自然, 王顺豪, 肖伸平, 等. 一种精确估算电动汽车动力电池SOC&SOH的循环门控模型[J]. 电子测量与仪器学报, 2024, 38(9): 11-23.
|
| [22] |
巨云涛, 周伟鹏, 于宗民. 考虑移动储能车提升系统供电可靠性的配电网规划方法[J]. 电力系统保护与控制, 2024, 52(17): 128-138.
|
| [23] |
陈韵含, 许寅, 王颖, 等. 灾后移动应急资源调度和配电网恢复统一决策[J]. 山东电力技术, 2024, 51(3): 1-7.
|
| [24] |
|
| [25] |
龚钢军, 张哲宁, 张心语, 等. 分布式信息能源系统的耦合模型、网络架构与节点重要度评估[J]. 中国电机工程学报, 2020, 40(17): 5412-5425.
|
| [26] |
闫涵, 王建华, 范须露, 等. 基于用户停电损失评估的有源配电网灾后供电恢复模型[J]. 电力系统自动化, 2022, 46(5): 31-39.
|
| [27] |
徐登辉, 王妍彦, 张有兵, 等. 不确定性环境下考虑信息失效的主动配电网可靠性评估[J]. 电力系统自动化, 2020, 44(22): 134-142.
|
| [28] |
U. S. Department of Transportation,Federal Highway Administration. 2017 national household travel survey[R/OL]. http://nhts.ornl.gov.
|
| [29] |
计鹿飞, 江琦, 唐昊, 等. 基于半马尔可夫控制过程的智能电网最优储能控制[J]. 电力系统自动化, 2015, 39(6): 24-27.
|
| [30] |
刘健, 陈鲁鹏, 张志华. 基于蒙特卡罗法的配电网静态参数可测性估计[J]. 电网技术, 2019, 43(9): 3235-3240.
|
| [31] |
李蕊, 李跃, 苏剑, 等. 配电网重要电力用户停电损失及应急策略[J]. 电网技术, 2011, 35(10): 170-176.
|
| [32] |
张爱国, 郝建刚, 唐志芳, 等. 考虑综合负荷重要性的移动应急电源容量优化分配[J]. 电网技术, 2008, 32(增刊2): 86-89.
|
| [33] |
徐展鹏, 陈福新, 杨雪凡, 等. 一种基于遗传算法改进粒子群算法的光储氢并网型微电网容量配置优化模型研究[J]. 太阳能学报, 2025, 46(7): 144-153.
|
| [34] |
李怡然, 张姝, 肖先勇, 等. V2G模式下计及供需两侧需求的电动汽车充放电调度策略[J]. 电力自动化设备, 2021, 41(3): 129-135, 143.
|
| [35] |
王颖, 洪涛, 江海凡, 等. 基于GA-ALNS算法的车间物料配送路径优化研究[J]. 制造业自动化, 2025, 47(7): 58-68.
针对航空复杂回转件制造车间在物料配送中常常面临的物料供应不及时、路径规划难等难题,分析车间物料配送特点与约束条件,以带时间窗的车辆路径优化问题为基本模型,以最小化综合小车调用数量、总行驶距离、送达时间惩罚成本三者的配送成本为优化目标,构建物料配送路径规划模型,设计一种混合自适应大邻域搜索遗传算法进行求解,考虑车间物流通道的复杂性预先求得两工位间的实际最短可行路径,进而进行工位间的配送路径规划。通过车间实际案例与经典标准案例的验证和对比分析,评估了所提算法在不同规模配送问题上的优化效果和性能表现。
Aiming at the aviation complex rotary parts manufacturing workshop in the material distribution often faced by the material supply is not timely, difficult path planning and other difficult problems, analysis of the workshop material distribution characteristics and constraints, with a time window of the vehicle path optimization problem as the basic model, to minimize the integrated trolley call number, the total distance travelled, the delivery time penalty cost of the distribution cost as the optimization objective, to build the material distribution path planning model, design a hybrid adaptive large neighborhood search genetic algorithm to solve the problem. A hybrid adaptive large neighborhood search genetic algorithm is designed to solve the problem, and the actual shortest feasible path between two workstations is obtained in advance considering the complexity of the logistics channel in the workshop, and then the distribution path planning between workstations is carried out. The optimization effect and performance of the proposed algorithm on different scale distribution problems are evaluated through the validation and comparative analysis of the actual cases in the workshop and the classical standard cases. |
| [36] |
程杉, 赵孟雨, 魏昭彬. 计及动态电价的电动汽车充放电优化调度[J]. 电力系统及其自动化学报, 2021, 33(10): 31-36, 42.
|
| [37] |
胡思洋, 廖凯, 杨健维, 等. 基于V2G技术的城市电网供电恢复策略[J]. 电力自动化设备, 2023, 43(6): 53-61.
|
| [38] |
李蕊. 配电网可靠性与重要电力用户停电损失研究[D]. 北京: 中国电力科学研究院, 2010.
|
| [39] |
|
利益冲突声明(Conflict of Interests) 所有作者声明不存在利益冲突。
作者贡献声明(Authors' Contributions) 徐艳春确定研究对象范围、收集数据,李芳进行对比实验、文献调研与整理、起草论文,席磊完成实验并分析数据,张涛参与论文修订和绘制图谱,王凌云参与论文写作和修订,MI Lu修订论文与审核论文。所有作者均阅读并同意了论文终稿内容。
/
| 〈 |
|
〉 |
